Sepasoft Business Connector Configuration

Sepasoft MES Module Suite

Sepasoft Business Connector Framework

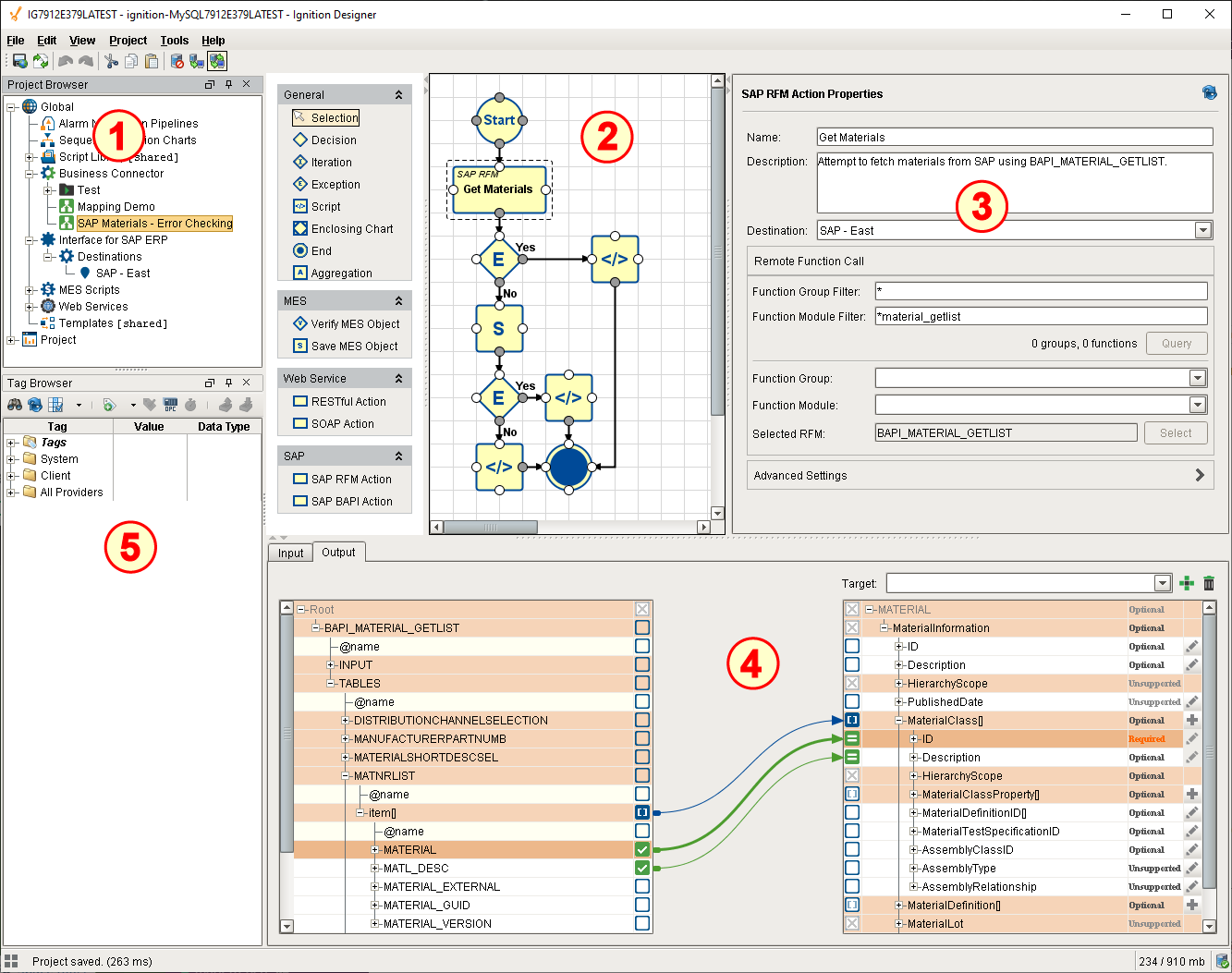

The Sepasoft Business Connector GUI interface within Ignition Designer consists of:

  1. Business Connector Charts in a folder structure in the Global section of Ignition Designer's Project Browser
  2. Design Grid where the sequence flowchart is created using a visual interface of Blocks and directional connecting lines
  3. Properties area where Blocks are configured for data selection and filtering
  4. Mapping area for visually-based, data mapping and transformation
  5. Ignition Designer's Tag Browser for access to Ignition tag data


Opening/Closing Sections

Information

The small arrows, as shown below, can be used to open and close each section of the design environment:
