MES Document Viewer | Vision

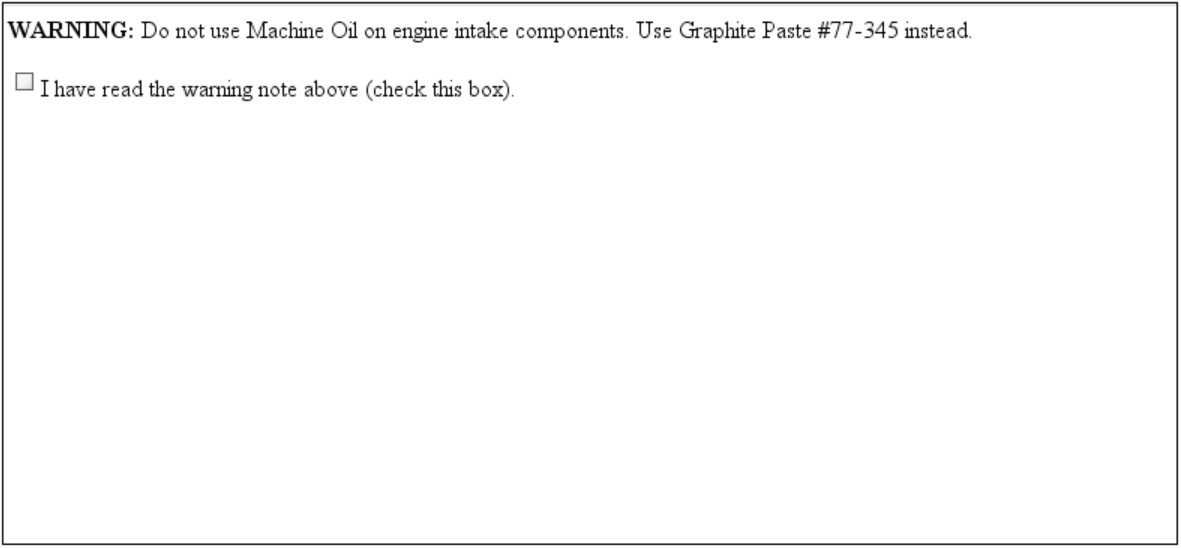

A component that is used to view and interact with HTML documents in the manufacturing environment.

onSaveEntries Extension Function

The onSaveEntries extension function exposes user inputs in the Viewer component for use in other parts of the application, error checking, or to trigger other tasks based on user responses. After the user executes the component's .save() function (usually placed in an Ignition Button near the MES Document Viewer component), the onsaveEntries extension function provides a Python dictionary of all input values selected or entered in the Viewer, which can be parsed for completeness, accuracy or gathering sample data.

If the user must correct or re-do the entries, the script can optionally display an appropriate message and then return a value of False, to force the user to make changes to the selections or data entries. If the script determines that the user entries are acceptable, then it can return True, which causes a save of the document, with all current selections and data entries, either by overwriting any previously-saved data (document's versioned property = False), or by creating a copy as a new version, with the current date and time (versioned = True).

Component Properties

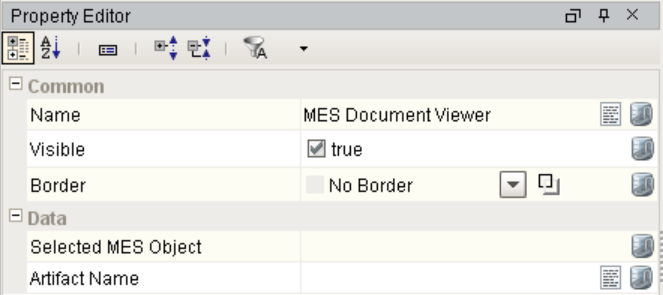

Properties are provided that can be set to affect the operation and look of the component. They can be set through the Property Editor in the Designer or through scripting.

event.source.parent.getComponent('MES Document Viewer').visible = True

Data

Event Handlers

Event handlers provide the ability to add custom script when a user interacts with a component and a component property changes.

propertyChange

Extension Functions

onSaveEntries

#Read in all user-entered values from the document on save()
reworkText = inputValues['rework']
radio = inputValues['radiogroup']
torqueString = inputValues['TorqueSetting']
if torqueString == '': torqueString = '0'
torque = float(torqueString)
step1 = inputValues['cb1']
step2 = inputValues['cb2']
step3 = inputValues['cb3']
step4 = inputValues['cb4']

#Fail if no radio button has been selected
if radio == '':
	msg = "Must choose New or Rework"
	system.gui.messageBox(msg, "CHOOSE NEW OR REWORK")
	return False

#Fail if Rework radio button is selected but message < 5 chars
elif radio == 'rb2' and len(reworkText) < 5:
	msg = "Enter a defect description"
	system.gui.messageBox(msg, "ENTER DEFECT DESCRIPTION")
	return False

#Fail if all the instruction steps aren't checked off
elif (step1 and step2 and step3 and step4) == False:
	msg = "Not all steps are marked as complete"
	system.gui.messageBox(msg, "MARK ALL STEPS AS COMPLETE")
	return False

#Fail if the torque value isn't within tolerance
elif ((torque < 30) or (torque > 35)):
	msg = "Torque must be between 30-35 ft-lbs"
	system.gui.messageBox(msg, "RETORQUE BOLTS")
	return False

#Pass the 'doc submit' (operator completed the form correctly)
else:
	msg = "ENGINE INTAKE ASSEMBLY COMPLETED"
	system.gui.messageBox(msg, "ENGINE INTAKE ASSEMBLY COMPLETED")
	return True

Custom Methods

Custom methods allow you to add your own component functions to a component that can be called through scripting. This is a useful and clean method of re-using script that is specific to the component (say you want to update a visual aspect of the component in the same way whether a user clicks on the component or a window property value changes). See Component Custom Methods in the Ignition Help Manual for more information.

Customizers

The custom properties can be used to add user defined properties.

Component Functions

This component does not have functions associated with it.
