Chart Functions

Business Connector Blocks use the system.mes function library (these predominately work with MES objects), as well as the new chart-specific functions listed below. These chart functions are available for use in the Script Block to manipulate Chart Parameters (configured in the Start Block), or any of the available Action Values (any of the filtered mapping properties available in any of the Action Blocks in the current chart, plus any of the available B2MML properties).

chart.getParameterValue(parameterPath)

Description

Returns the value of a chart parameter element defined in the Start Block specified by parameterPath.

	For now, B2MML parameters do not support data validation. That means that it should still throw an error if the data structure is completely different but if you are missing some required nodes it won't complain. B2MML parameters don't get initialized the same way as regular parameters. By default if no value was set, the data will just be a root with the name of the B2MML and no value or children.

Syntax

chart.getParameterValue(parameterPath)

Parameters

String parameterPath - The path of the chart parameter in the Start Block.

Returns

The value of the chart parameter in the Start Block specified by parameterPath.

Scope

All

Code Examples

If the Chart Parameter is defined as type String:

Code Snippet

Copy Code

Code

#Chart parameter newMaterialClass was previously defined in the Start Block and currently equals 'Refurbished Case 14'
x = chart.getParameterValue('@newMaterialClass')

Output

Copy Code

Code

x will contain 'Refurbished Case 14'

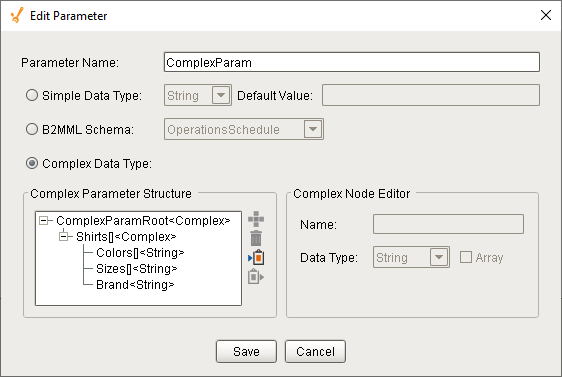

If the Chart Parameter is defined as type Complex, as shown:

...and the current value of ComplexParam is:

{'ComplexParamRoot' :
{'Shirts' : [
{'Colors' : ['Blue', 'Red'],
'Sizes' : ['S', 'M'],
'Brand' : 'Nike'},
{'Colors' : ['Green', 'Red'],
'Sizes' : ['S', 'M', 'L'],
'Brand' : 'Adidas'}]}}

Code Snippet

Copy Code

Code

#Set a new value in the Brand element in Shirts[0]
chart.setParameterValue('@ComplexParam/ComplexParamRoot/Shirts[0]/Brand', 'Reebok')

#Get the new value
brand = chart.getParameterValue('@ComplexParam/ComplexParamRoot/Shirts[0]/Brand')

Output

Copy Code

Code

brand will contain 'Reebok'

chart.setParameterValue(parameterPath, value)

Description

Writes a value to the chart parameter defined in the Start Block specified by parameterPath.

Syntax

chart.setParameterValue(parameterPath,value)

Parameters

String parameterPath - The path of the chart parameter in the Start Block.

value - The value to be written to the chart parameter in the Start Block.

Returns

None

Scope

All

Code Examples

If the Chart Parameter is defined as type String:

Code Snippet

Copy Code

Code

#newMaterialClass is a chart parameter (type String) previously defined in the Start Block

#Set the value of the chart parameter newMaterialClass to 'Refurbished Case 14'.
Condition = 'Refurbished Case 14'
chart.setParameterValue('@newMaterialClass', Condition)

Output

Copy Code

Code

Chart Parameter newMaterialClass will contain 'Refurbished Case 14'

If the Chart Parameter is defined as type Complex, as shown:

...and the current value of ComplexParam is:

{'ComplexParamRoot' :
{'Shirts' : [
{'Colors' : ['Blue', 'Red'],
'Sizes' : ['S', 'M'],
'Brand' : 'Nike'},
{'Colors' : ['Green', 'Red'],
'Sizes' : ['S', 'M', 'L'],
'Brand' : 'Adidas'}]}}

Code Snippet

Copy Code

Code

#Set a new value in the Brand element in Shirts[0]
chart.setParameterValue('@ComplexParam/ComplexParamRoot/Shirts[0]/Brand', 'Reebok')

#Get the new value
brand = chart.getParameterValue('@ComplexParam/ComplexParamRoot/Shirts[0]/Brand')

Output

Copy Code

Code

brand will contain 'Reebok'

chart.getActionValue(chartPath)

Description

Returns a property value available from any of the Action Blocks in the current chart (e.g. SAP BAPI, SOAP, RESTful).

Syntax

chart.getActionValue(chartPath)

Parameters

String chartPath - The path to a property value available from any of the Action Blocks in the current chart (e.g. SAP BAPI, SOAP, RESTful).

Returns

The value of the property specified by chartPath.

Scope

All

Code Examples

Code Snippet - Chart

Copy Code

Code

#This script is in a Script Block in the chart 'Working with Parameters'.
#The chart is executed by a script in an Ignition button

def executeScript(chart):

	#Point to the property to read the value of (available property from any Action Block)
	#Note: To get the property's path, right-click on it in the Mapping section of the Action Block, then select Copy Path.
	chartPath = 'Get Materials/B2MML/MaterialInformation/MaterialDefinition[]/Description[]'

	#Read the current value of the property (currently equals 'Plastic Sheeting')
	propValue = chart.getActionValue(chartPath)

	#Store the value in a Start Block chart parameter so it can be (optionally) returned to the script that executed the chart
	chart.setParameterValue('@validActionValue', propValue)

	return

Code Snippet - Button

Copy Code

Code

#This script is in an Ignition button that executes the chart

#Business Connector chart name
chart = 'Working with Parameters'
#Python dictionary of chart parameters to pass values to
extraClassAndMaterial = {'newMaterialClass':'Flour', 'newMaterialDef':'Whole Wheat'}
#Python list of chart parameters to retrieve values for
returnThese = ['validClass', 'validDef', 'validActionValue']

#Execute the chart and return the three requested chart parameters into r
r = system.mes.bc.executeChart(chart, extraClassAndMaterial, returnThese)

#The value retrieved by the Script Block in the chart was returned via
#the chart parameter validActionValue (equal to 'Plastic Sheeting')
print r.get('validActionValue')

Output

Plastic Sheeting

chart.getUserValue(userValue)

Description

Reads the value of a local variable (chart-scoped, called a User Value) that has been previously created with the chart.setUserValue(userValue, value) function.

Syntax

chart.getUserValue(userValue)

Parameters

String userValue - The name of the User Value.

Returns

Object value - The Python object stored in userValue.

Scope

Chart

Code Examples

Code Snippet

Copy Code

Code

#Create a new User Value, read it into x, then log it to the gateway (cannot use a PRINT statement inside a Script Block)
chart.setUserValue('My_Variable', 1234)
x = chart.getUserValue('My_Variable')
log = system.util.getLogger('Log the value of x')
log.warn(str(x))

Output

chart.setUserValue(userValue, value)

Description

Sets the value of a local variable (chart-scoped, called a User Value). If the User Value does not exist, it will be created. Values can be any Python object.

Syntax

chart.setUserValue(userValue, value)

Parameters

String userValue - The name of the new (can be any legal string name) or existing User Value.

Object value - The Python object to be stored in userValue.

Returns

None

Scope

Chart

Code Examples

Code Snippet

Copy Code

Code

#Create a new User Value, update it, then log it to the gateway (cannot use a PRINT statement inside a Script Block)
chart.setUserValue('My_Variable', 1234)
chart.setUserValue('My_Variable', 5678)
log = system.util.getLogger('Log this variable')
log.warn(str(chart.getUserValue('My_Variable')))

Output
