Set Task Routing in MES 3.0 and MES 4.0
This example sets up Task Routing for your MES 3.0/MES 4.0 Environment. For this example, we are using a docker setup with Ignition 8.1.22 and MES 3.81.6 SP2
<Runtime License> Runtime Server
<Analysis License> Analysis Server
<Visualization License> Visualization Server
<Runtime License> Production v 3 analysis: false edition: enterprise runtime: true
<Analysis License> Production v 3 analysis: true edition: enterprise runtime: false
<Visualization License> Production v 3 analysis: false edition: enterprise runtime: false
- One database is configured on the Runtime Server.

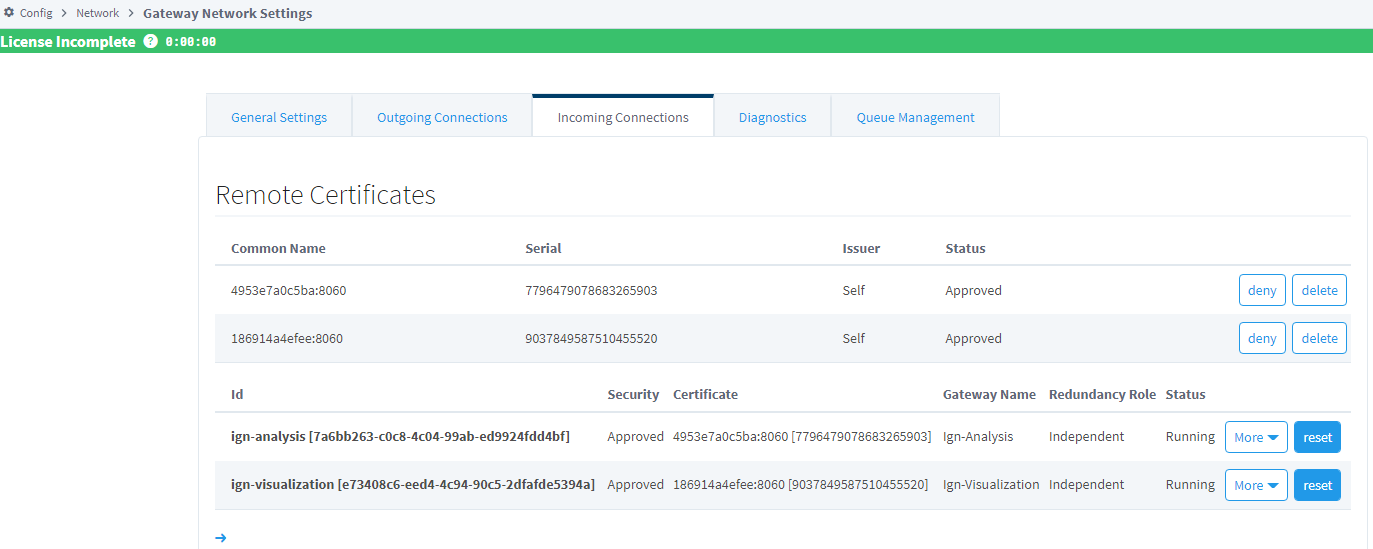

Runtime Server
|
Note that the Runtime server does NOT have routing information outbound to other servers. It is self sufficient. |
Analysis Server
|
|
Note that the Analysis Server needs a route to the Runtime Server. Further, the Analysis Server needs to be able to access the MES DB. |
Visualization Server
Note that the Visualization Server needs routings defined to the Analysis and Runtime servers.
