Conditional Work Order Row Highlighting 3.0

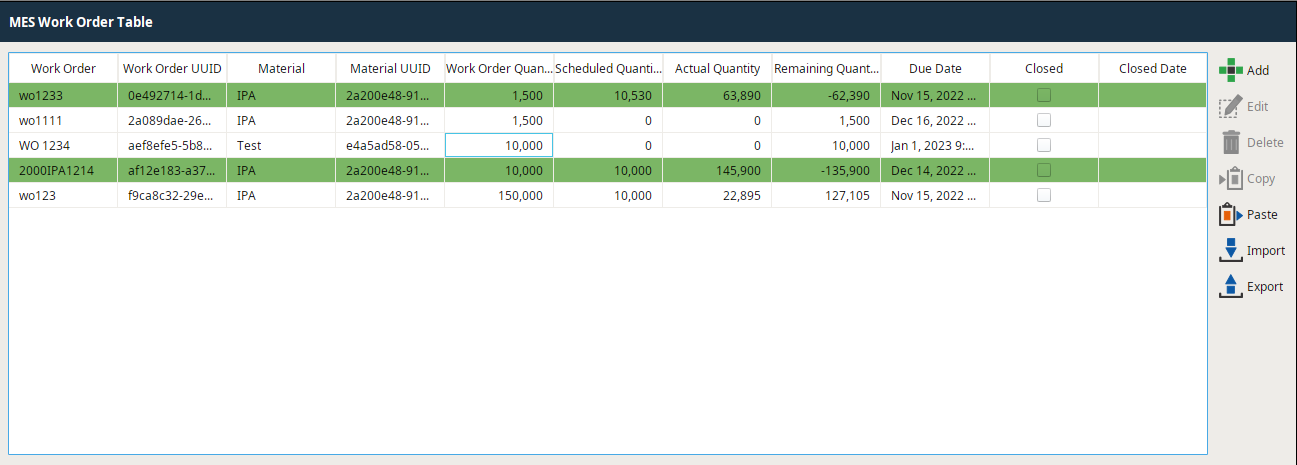

Example: You want to highlight Work Order Table Row(s) if the Remaining Quantity < 0

Step-by-step guide

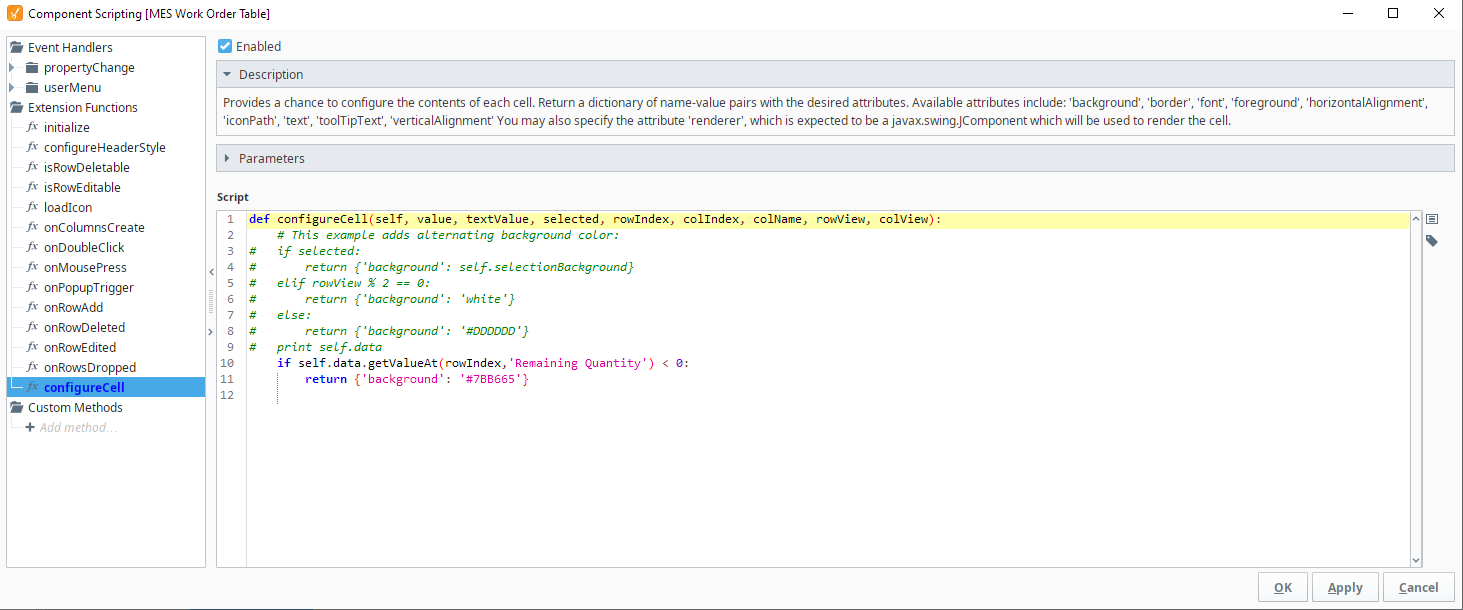

1. From the designer, right-click on the Work Order Table and go to Scripting. Then navigate to the Extension Functions and find configureCell
   1.

2. Add the following script under the function:

   Copy Code Code

   if self.data.getValueAt(rowIndex,'Remaining Quantity') < 0: return {'background': '#7BB665'}

Caution

This function executes for all cells in the Table.  Ensure your script is minimal to keep from blocking the UI.
