Driving OEE with Tags

Driving OEE with Tags

The OEE Downtime Module supports multiple data ingestion strategies so that different manufacturing equipment and requirements can be accommodated with one module.  While the default behavior utilizes the ISA-95 Operations model objects to start and stop production runs, some use-cases do not fit the constraints of that model.  Therefore, the OEE Downtime module support tag driven collection for necessary OEE data requirements.

The OEE calculation requires several data points.  Production counters, machine status, and meta data (e.g. Standard Rate, Line Infeed Count Equipment UUID) can be supplied via tags.  With respect to the tag driven OEE approach, an engineer can implement the solution via tag collector bindings or through scripted writes to the tag collectors in the module without tag bindings in the Ignition tag server.  This KB article walks through the latter approach.

The benefits of this scripted approach are:

  • Maximum flexibility for data ingestion
  • Coordination of time-stamps for data entry
  • Custom logic determining values

The downside of this scripted approach are:

  • Requires scripting
  • Requires additional training/skills
  • Requires documentation so engineers can understand how the system is configured

This topic includes:

References

The following links are references with which the author assumes the engineer is already very familiar.  If these are new concepts, please explore them prior to returning to this page for their application within this use-case.

Timestamped Tag Collector Data

The OEE Downtime Module inserts timestamped entries for various tag collectors.  These timestamps are used in the Analysis Engine and must match.

Since timestamps should match, it is recommended not to map the tag collectors to Ignition tags.  There may be a case where a bulk write could have slightly differing timestamps.

Instead, it is recommended to use the built-in script functions to write directly to the tag collectors in the MES database using the same timestamp.  Tag Collector Types

When using this method, Material Definitions and Material Production Settings are not required.  The tag collector values will record input during runtime.

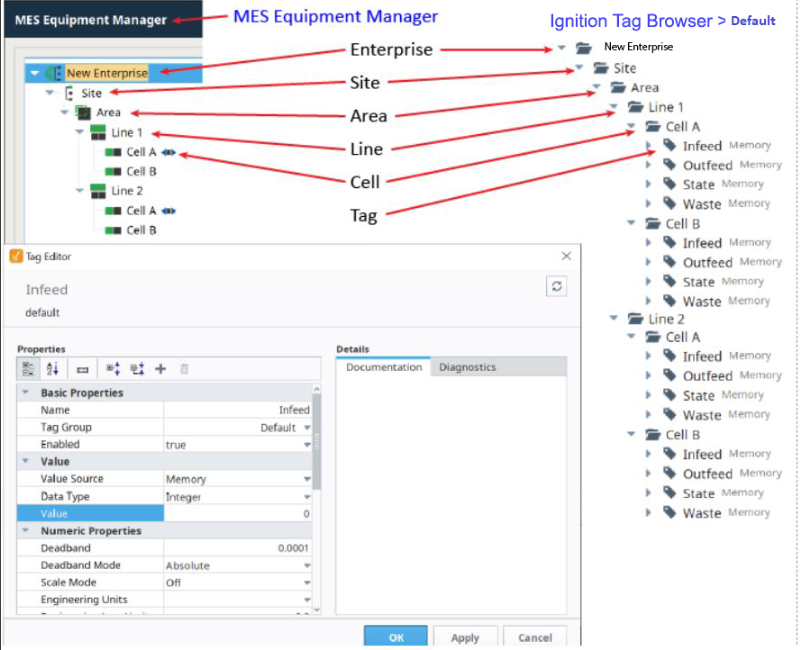

A simple way to achieve this is to first match your tag folder structure to match the equipment hierarchy.  This allows us to derive the equipment path from the tag path.

Example Script: Set up and execute OEE for a single operation per line

The following resources and examples demonstrate how to set up and execute OEE for a single operation per line.

1. Import these UDTs: OEE_tags.json

2. Run the traverseEquipment() function by editing the equipment path value for passed in for the linePath parameter.

Create Tags and Set Params

Copy Code
Python
def getLineTagStructure(eqPath, tagType='UdtInstance'):
    name = eqPath.split('\\')[-1]
    return {
        'name':'Line OEE Tags',
        'typeId':'Line OEE',
        'tagType':tagType
    }

def getCellTagStructure(eqPath, tagType='UdtInstance'):
     name = eqPath.split('\\')[-1]
     return {
         'name':'Cell OEE',
         'typeId':'Cell OEE',
         'tagType':tagType
     }

def traverseEquipment(linePath, includeCellTags=False, providerName='[default]'):
    def traverseEquipmentHelper(equipmentItem):
            eqPath = equipmentItem.getEquipmentPath()
            validEquipmentTypes = ['Line','LineCellGroup','LineCell']
            eqType =  equipmentItem.getMESObjectTypeName()
            if eqType in validEquipmentTypes:
                if eqType == 'Line':
                    tag = getLineTagStructure(eqPath)
                    baseTagPath = providerName + eqPath.replace('\\','/')
                    system.tag.configure(baseTagPath, [tag], 'i')

                #optional if cell tags should be used
                elif includeCellTags and eqType in ['LineCell','LineCellGroup']:
                    tag = getCellTagStructure(eqPath)
                    baseTagPath = providerName + eqPath.replace('\\','/')
                    system.tag.configure(baseTagPath, [tag], 'i')

            children = equipmentItem.getChildCollection().getList()
            for child in children:
                traverseEquipmentHelper(child.getMESObject())

    root = system.mes.loadMESObjectByEquipmentPath(linePath)
    traverseEquipmentHelper(root)

 traverseEquipment('Enterprise\\Site 1\\Area 1\\Line 1')

Example of Setting Infeed and Outfeed Equipment References for a Line

The OEE module will need to understand where to look for equipment counters (In and Out).

There are two members of the UDT to record this information.  It generally should not change for most use cases.

Line Infeed Count Equipment UUID

Line Outfeed Count Equipment UUID

The following script can be used to find the UUID of a Line or Cell where the Counters are defined:

Equipment UUID Helper Script

Copy Code
Python
def getUUID(infeedEquipmentPath, outfeedEquipmentPath):
    infeedUUID = system.mes.loadMESObjectByEquipmentPath(infeedEquipmentPath).getUUID()
    outfeedUUID = system.mes.loadMESObjectByEquipmentPath(outfeedEquipmentPath).getUUID()
    return infeedUUID, outfeedUUID

Production Run Start and Stop within the Example UDT

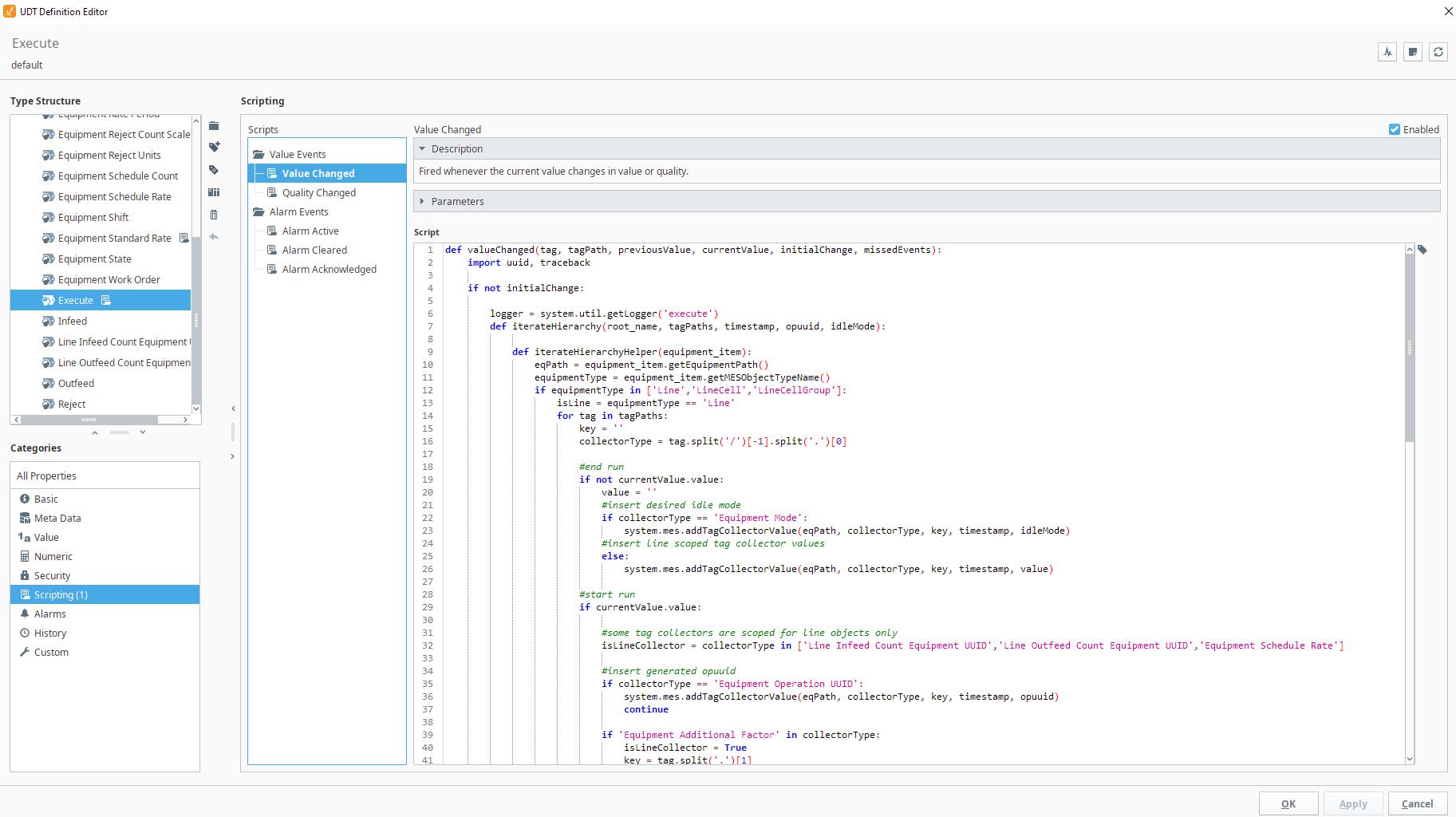

The Line OEE tag UDT has a member called Execute.

When set to True - This starts a production run

When set to False - This ends a production run

Execute

Copy Code
Python
def valueChanged(tag, tagPath, previousValue, currentValue, initialChange, missedEvents):
    import uuid, traceback

    if not initialChange:
        logger = system.util.getLogger('execute')
        def iterateHierarchy(root_name, tagPaths, timestamp, opuuid, idleMode):

            def iterateHierarchyHelper(equipment_item):
                eqPath = equipment_item.getEquipmentPath()
                equipmentType = equipment_item.getMESObjectTypeName()
                if equipmentType in ['Line','LineCell','LineCellGroup']:
                    isLine = equipmentType == 'Line'
                    for tag in tagPaths:
                        key = ''
                        collectorType = tag.split('/')[-1].split('.')[0]

                        #end run
                        if not currentValue.value:
                            value = ''
                            #insert desired idle mode
                            if collectorType == 'Equipment Mode':
                                system.mes.addTagCollectorValue(eqPath, collectorType, key, timestamp, idleMode)
                            #insert line scoped tag collector values
                            else:
                                system.mes.addTagCollectorValue(eqPath, collectorType, key, timestamp, value)

                        #start run
                        if currentValue.value:

                            #some tag collectors are scoped for line objects only
                            isLineCollector = collectorType in ['Line Infeed Count Equipment UUID','Line Outfeed Count Equipment UUID','Equipment Schedule Rate']

                            #insert generated opuuid
                            if collectorType == 'Equipment Operation UUID':
                                system.mes.addTagCollectorValue(eqPath, collectorType, key, timestamp, opuuid)
                                continue

                            if 'Equipment Additional Factor' in collectorType:
                                isLineCollector = True
                                key = tag.split('.')[1]
                                lastValue = system.mes.getTagCollectorLastValue(eqPath, collectorType, key)
                                tag = tag.replace('.','/')
                                value = system.tag.readBlocking(tag.replace('.','/'))[0].value
                            else:
                                #if no change, do not insert value
                                value = system.tag.readBlocking(tag)[0].value
                                lastValue = system.mes.getTagCollectorLastValue(eqPath, collectorType, key)
                            if lastValue == value:
                                continue

                            try:
                                #insert line scoped tag collector values
                                if isLine:
                                    system.mes.addTagCollectorValue(eqPath, collectorType, key, timestamp, value)
                                #insert all others tag collector values
                                elif not isLine and not isLineCollector:
                                    system.mes.addTagCollectorValue(eqPath, collectorType, key, timestamp, value)
                            except:
                                exception = traceback.format_exc()
                                logger.error(str(exception))

                children = equipment_item.getChildCollection().getList()
                for child in children:
                    iterateHierarchyHelper(child.getMESObject())

            root = system.mes.loadMESObjectByEquipmentPath(root_name)
            iterateHierarchyHelper(root)

        tagProvider = '[default]'
        linePath = tagPath.split(']')[1].replace('/Line OEE Tags/Execute','').replace('/','\\')
        parentTagPath = tagProvider + linePath.replace('\\','/') + '/Line OEE Tags/'

        """
        Add additional tag collectors as needed.
        Items in this list will be read from the UDT and written to respective equipment tag collector
        Equipment Operation UUID is the exception - this is generated once and set for all equipment
        """
        #tag collector values to change for start and stop
        tagsToInclude = [
            'Equipment Product Code',
            'Equipment Mode',
            #operation UUID is generated instead of read from tag. Need to include here for iterateHierarchy() function
            'Equipment Operation UUID',
            'Equipment Work Order',
        ]
        #tag collector values to change for start only
        if currentValue.value:
            tagsToInclude.append('Line Infeed Count Equipment UUID')
            tagsToInclude.append('Line Outfeed Count Equipment UUID')
            tagsToInclude.append('Equipment Standard Rate')
#           tagsToInclude.append('Equipment Schedule Rate')
#           tagsToInclude.append('Equipment Rate Period')
#           tagsToInclude.append('Equipment Outfeed Units')
#           tagsToInclude.append('Equipment Infeed Units')

            #add new members to Equipment Additional Factor folder
            #separate with a . for the subsequent script to write (see example below). This currently only write additional factors defined on the line.

#           tagsToInclude.append('Equipment Additional Factor.Operator')

        tagPaths = [parentTagPath + item for item in tagsToInclude]
        opuuid = str(uuid.uuid4())
        timestamp = system.date.now()

        #Your idle mode
        idleMode = 3
        iterateHierarchy(linePath, tagPaths, timestamp, opuuid, idleMode)


Additional Factors

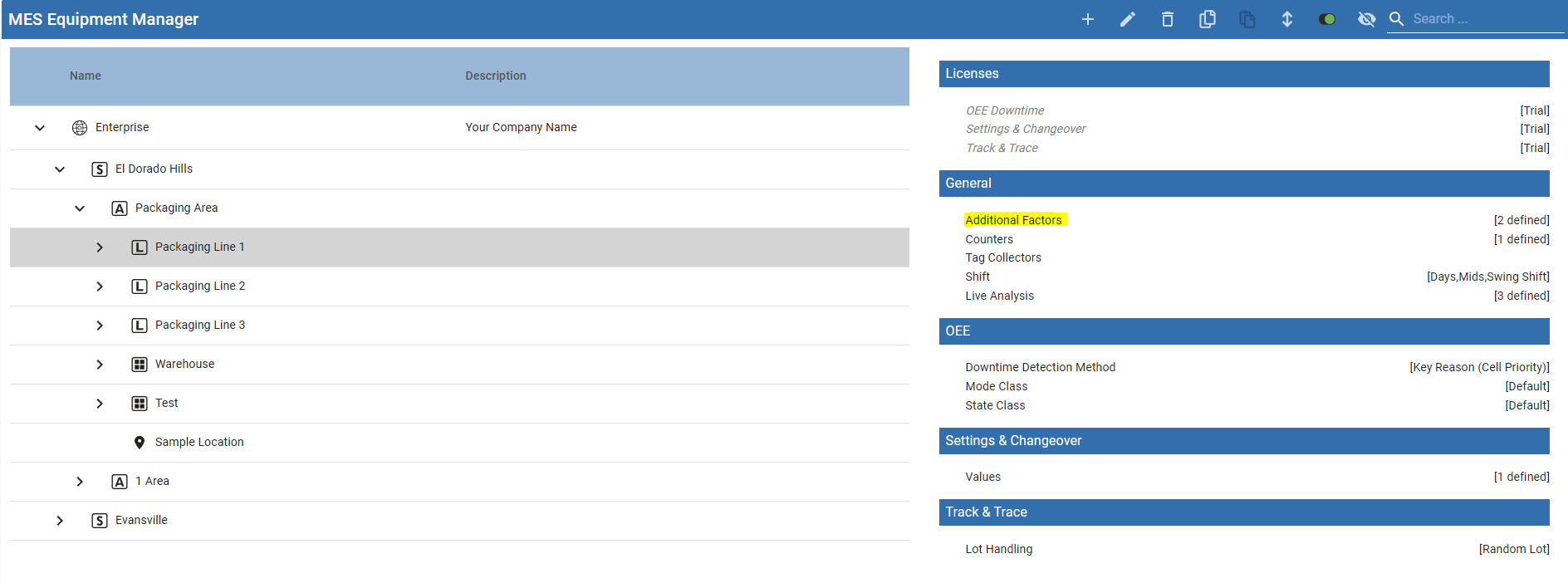

Additional Factors must be created on the equipment prior to injecting values through the script.  Mapping a tag in the Equipment manager is only necessary if the factor value needs recording other than when a run is started.

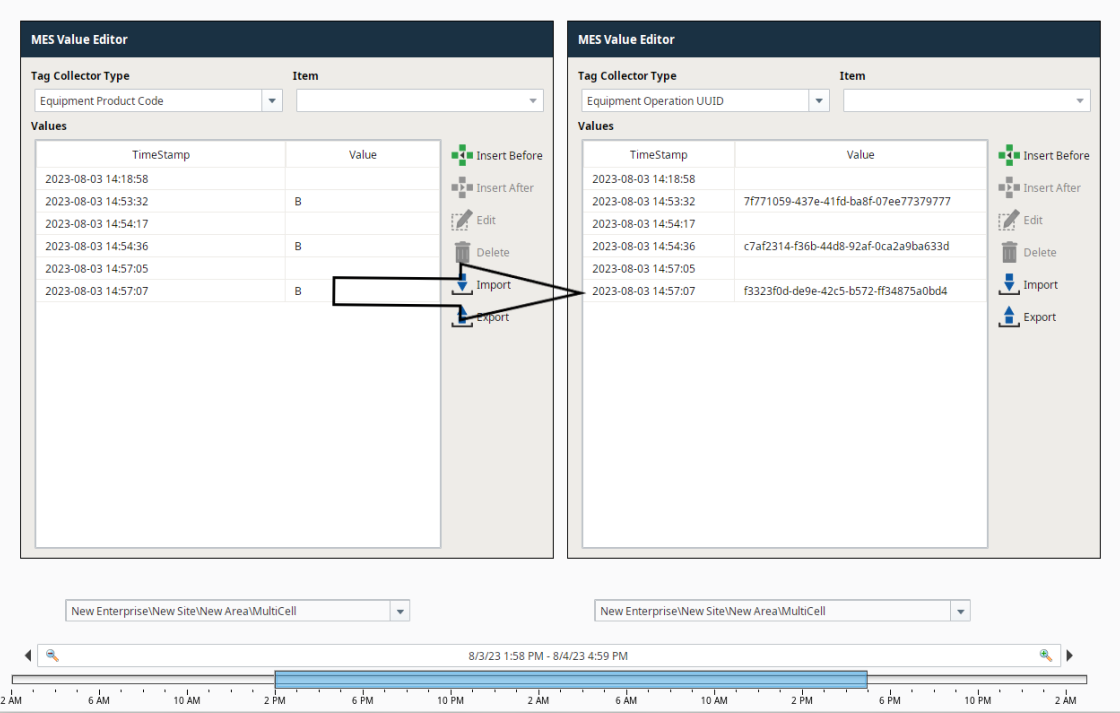

You can validate that the tag values are written correctly via the Value Editor component.

Dynamic Value Change Corner Cases

There are cases where a tag value needs to be changed "on the fly".  One such example is the standard rate is calculated based on the length of material or number of machines running, etc.

In the UDT, the Equipment Standard Rate can be changed while a run is in progress.  The change script will stop the run and start the run, to correctly record for the analysis engine.

If a run is not in progress, no other action is taken until the Execute flag is set to True.

Equipment Standard Rate Change Script

Copy Code
Python
def valueChanged(tag, tagPath, previousValue, currentValue, initialChange, missedEvents):
    import time
    if not initialChange:
        parentTagPath = tagPath.rstrip('Equipment Standard Rate')
        executePath = parentTagPath + 'Execute'
        isRunning = system.tag.readBlocking([executePath])[0].value
        if isRunning:
            system.tag.writeBlocking([executePath], [False])
            time.sleep(2)
            system.tag.writeBlocking([executePath], [True])

Conclusion

In summary, there are cases to use the tag-driven approach to OEE instead of using out of the box functions to start and stop production runs.

Values recorded during production run begin must have matching timestamps
