Analysis | Setting MES Object Selector Property to Include Analysis Settings Objects

Overview

Include Analysis Settings Objects property of MES Object Selector component to add flexibility for the MES Analysis Controller to select analysis settings.

Details

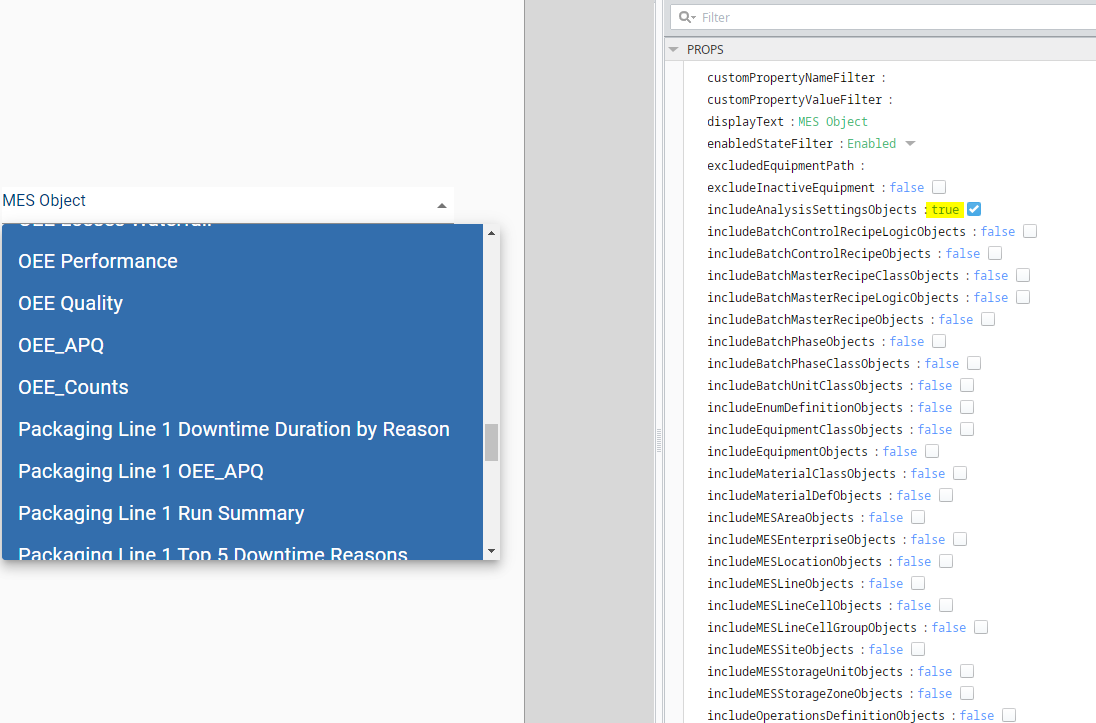

If Include Analysis Settings Objects property of the MES Object Selector component is checked, the various analysis settings will appear in the component's drop-down menu.

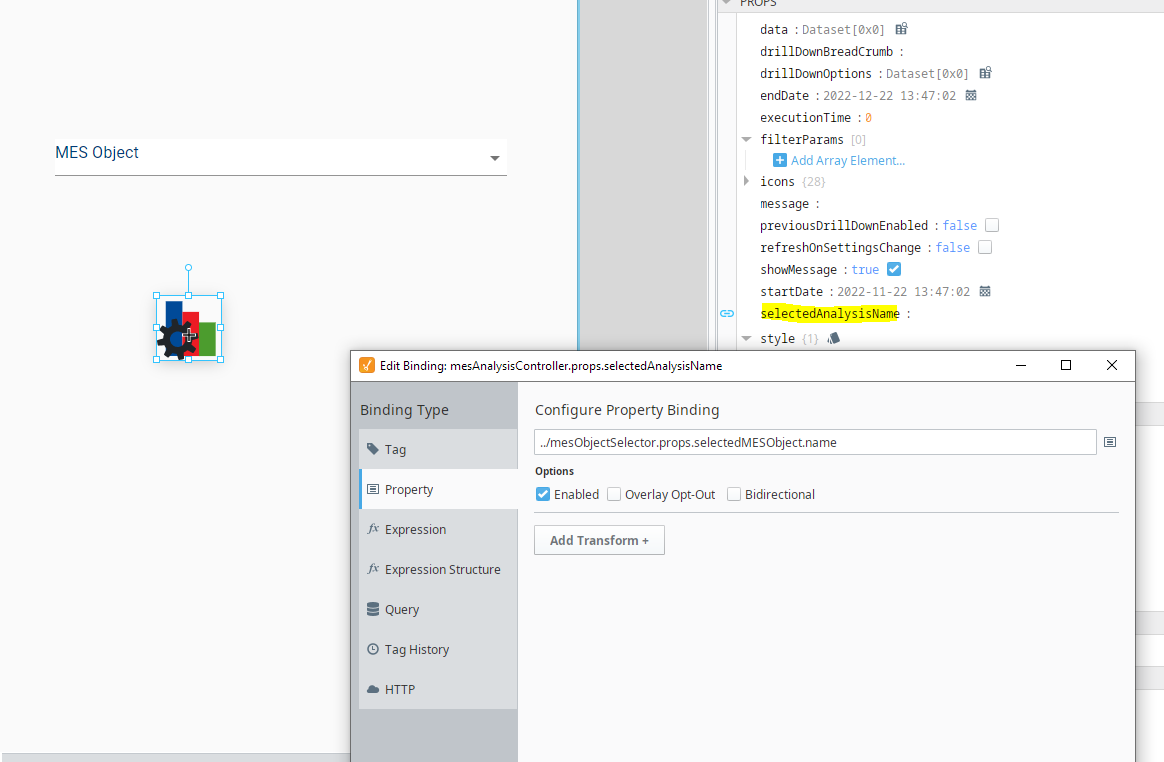

Bind Analysis Settings Name property of the MES Analysis Controller to the MES Object Selector component's SelectedMESObject.name property. If an analysis setting is selected using the MES Object Selector, the analysis controller uses that selected setting.
