Setting Column Widths on the Downtime Table 3.0

Overview

The OEE Downtime Table component provides a method for setting column widths through the use of configureHeaderStyle extension function. Purpose of this feature is to force the columns in the downtime table to be a set size. By default, column size gets reset every time the downtime table is initialized. In this example, 3 column widths are set.

Applies To and Version Info

This feature applies to OEE 3.0 module

Details

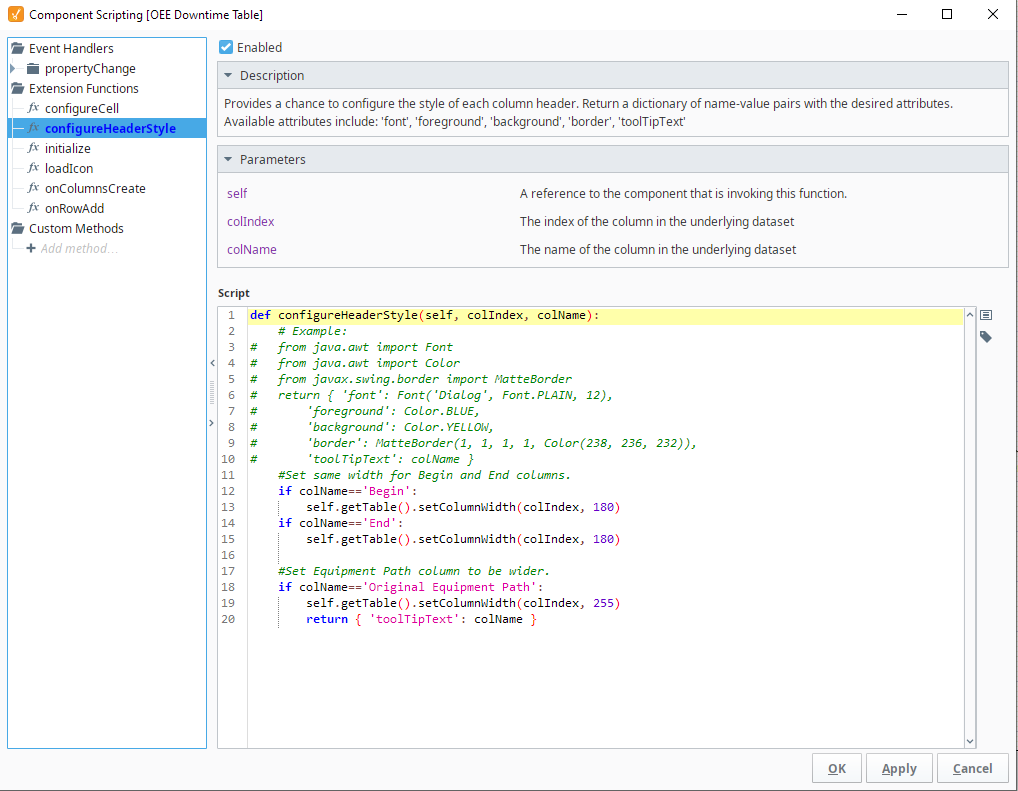

Add the following script to configureHeaderStyle extension function.

Copy Code

Code

#Set same width for Begin and End columns.
if colName=='Begin':
	self.getTable().setColumnWidth(colIndex, 180)
if colName=='End':
	self.getTable().setColumnWidth(colIndex, 180)

#Set Equipment Path column to be wider.
if colName=='Equipment Path':
	self.getTable().setColumnWidth(colIndex, 255)
	return { 'toolTipText': colName }

Result

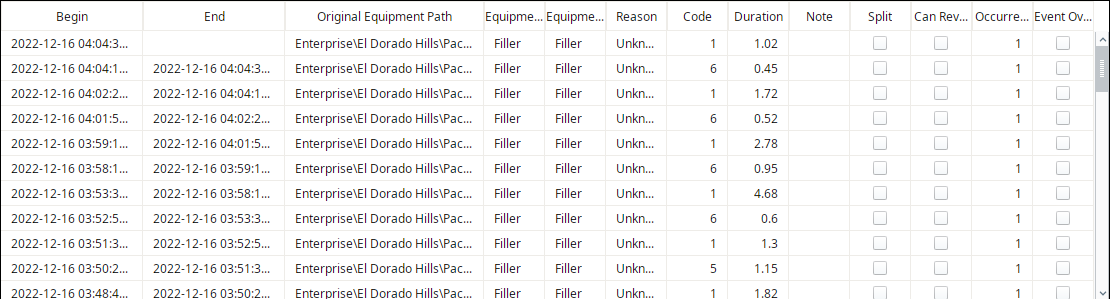

Example: The widths of Begin and End columns are same and that the Original Equipment Path column is wider.
