Production Equipment Model | Traverse Production Model via Script

Viewing Production Equipment Hierarchy via Script

When dealing with a complex and deep Production Model, it can be useful to quickly collect its scope

Details

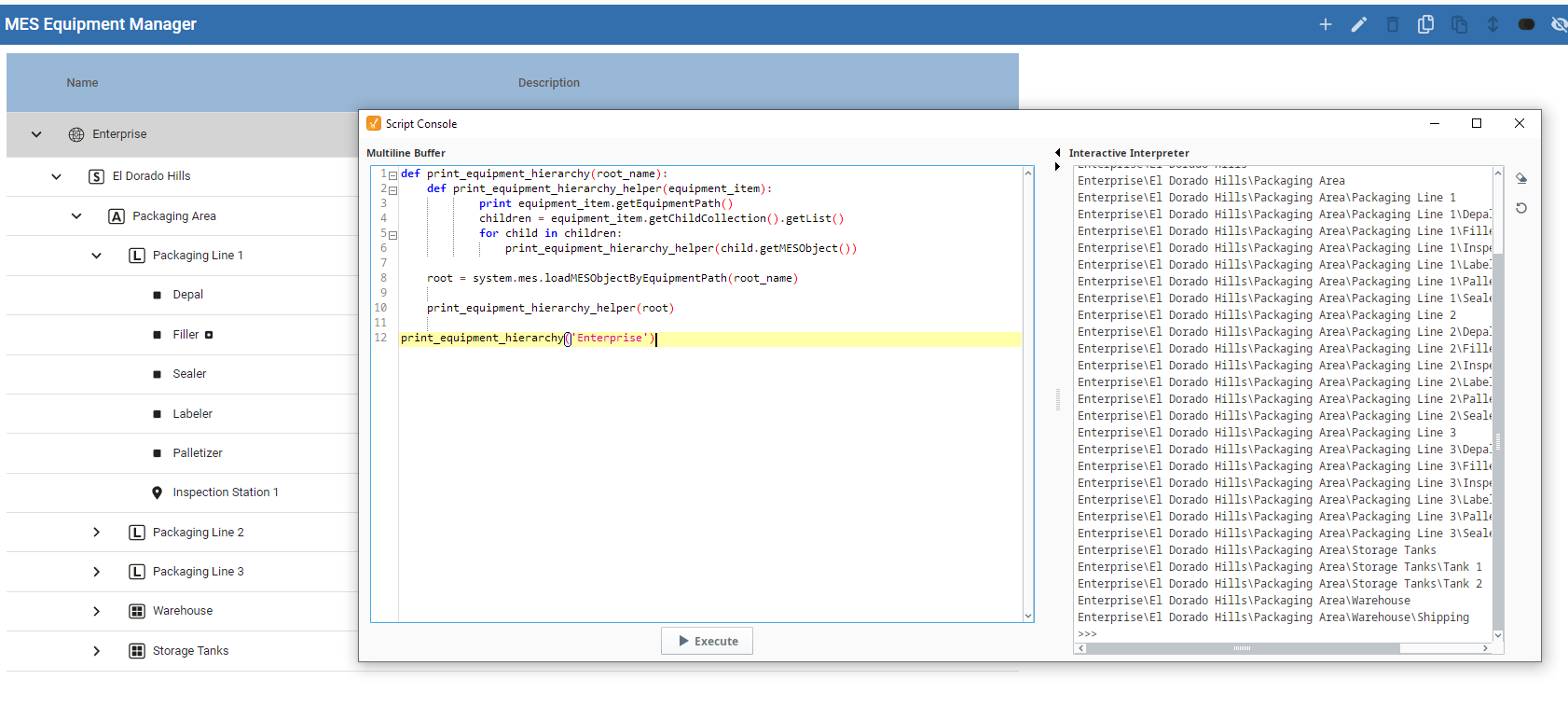

  • In the Designer, open Tools→ Script Console
  • copy/paste the code below
  • replace <your Enterprise Name> with the name of your Enterprise

Scripting

Copy Code
Python
def print_equipment_hierarchy(root_name):
    def print_equipment_hierarchy_helper(equipment_item):
            print equipment_item.getEquipmentPath()
            children = equipment_item.getChildCollection().getList()
            for child in children:
                print_equipment_hierarchy_helper(child.getMESObject())

    root = system.mes.loadMESObjectByEquipmentPath(root_name)

    print_equipment_hierarchy_helper(root)

print_equipment_hierarchy('<your Enterprise Name>')
# example print_equipment_hierarchy('Nuts Unlimited')
