Configure Production Line

Create Equipment in the Production Model

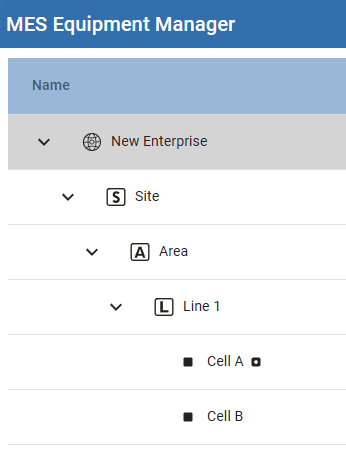

• In the Equipment Manager component, create this structure:
  • Create a Site called Site.
  • Create an Area called Area.
  • Create a Line called Line 1.
  • In Line 1, create two Cells called Cell A and Cell B.

• Make the each node in the line Active in the Equipment Manager property panel, on the right.
• Save the project.
