Configure Production Line

Create Equipment in the Production Model

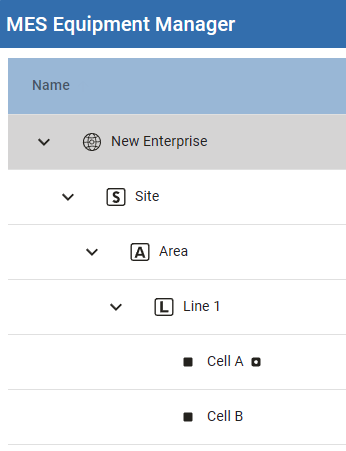

  • In the Equipment Manager component, create this structure:
    • Create a Site called Site.
    • Create an Area called Area.
    • Create a Line called Line 1.
    • In Line 1, create two Cells called Cell A and Cell B.
  • Make the each node in the line Active in the Equipment Manager property panel, on the right.
  • Save the project.

Scripting Bonus

The following script creates a line under the "Test Area", then creates the recipe set points linked to the tag server.  Review first and ensure the tags are present.

Create Line within an Area

Copy Code
Code
##Create a New Line in a given Area:
parentObj = system.mes.loadMESObject('Test Area', 'Area')

##Create a new line, set the name, set it as active, make it a child of the area, and save the object.
newMESObj = system.mes.createMESObject('Line')
newMESObj.setPropertyValue('Name', 'Line B')
newMESObj.setActive(1)
newMESObj.addParent(parentObj)
system.mes.saveMESObject(newMESObj)


eqPath = 'New Enterprise\\Site\\Test Area\\Line B'
setPointNames = ['Torque Setting 1', 'Torque Setting 2', 'Zero Location', 'Vacuum Pressure Target']
baseTagPath = '{Equipment Path}/'
tagDataType = 6
### int is 4
### float4 is 6
### float8 is 8

##Load the Line we created above.
obj = system.mes.loadMESObjectByEquipmentPath(eqPath)

##Loop through the setpoints, setting the tag, tag type, and default value for the recipe value item.
for sp in setPointNames:
    defaultRecipeValue = obj.createDefaultRecipeValue(sp)
    defaultRecipeValue.setTagPath(baseTagPath + sp)
    defaultRecipeValue.setRecipeDataType(tagDataType)
    defaultRecipeValue.setDefaultValue(10.0)

##Save the line after the recipe changes.
system.mes.saveMESObject(obj)
