MES Trace Graph

Sepasoft MES Module Suite

Trace Graph

A component that is added to visually see traceability results. It shows the flow of production for bulk lot (batch) and / or serialized items. This allows entering a lot (batch) number and seeing what went into making it up from raw materials through the production steps to the finished goods. Then if desired, product can be tracked beyond the production facility. Individual items can also tracked by using a serial number or other item identification.

Component Palette

If a node has a sublot that has a name that matches the Highlight Sublot Name, then text specified by the Sublot Match Text property will be displayed in the lot node. This is valuable at determining which lots contain the sublot (serial number) of interest.

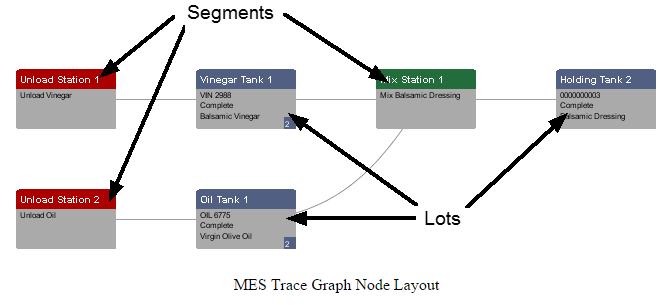

The nodes are laid out in chronological order from left to right. The node type alternates starting with a segment then showing a lot. The idea behind this is there are lots that are inputs to an operation and there are lot that the operation produced. In the image below, the upper left node titled Unload Station 1 is the operation that vinegar was unloaded. When this operation was done, a new lot VIN 2988 was created. Then that lot was used in the operation of making of balsamic dressing at Mix Station 1, which produced balsamic dressing that resides in Holding Tank 2.

The Trace Graph component also is an excellent navigation tool to zero in on non-trace information. Because the date and times, material, equipment, lot numbers, serial number, etc. are known, other data can be filtered to match the trace information being shown. This gives, otherwise just time series data, context to specific lots and serialized items without the need to look it up manually potentially across multiple systems.

To support this functionality, the trace graph component has very configurable menus that are used to display additional non-trace information. When the menu is selected by the user, the associated date and times, lot number, material, personnel, etc. is included in the menu event so that data within and outside of Ignition can be looked up and displayed.

Features

User Menu Items Property

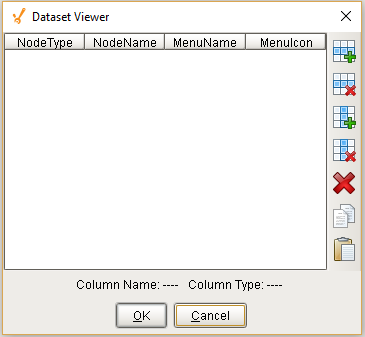

The User Menu Items property allows custom menu items to be added. Custom script can then be added to the userMenuItemClicked event handler to add functionality to this component.

Steps	Description
1	Click the icon on the User Menu Items property and add your custom menu items.
2	Add your custom script to the userMenuItemItemClicked event handler.

Node Configuration Property

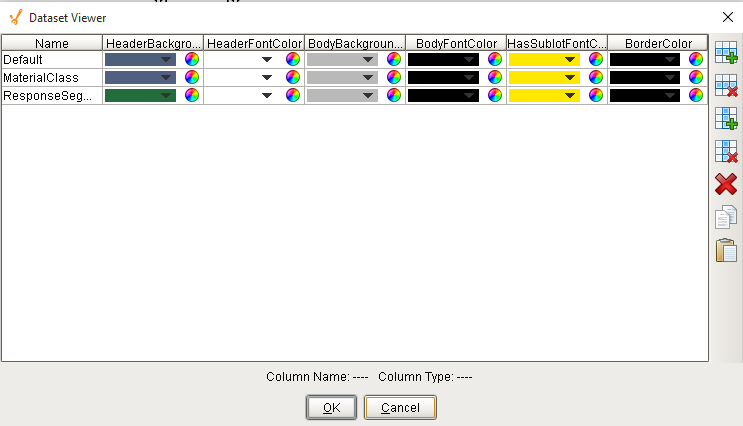

This property controls the appearance of each node. Click on the Dataset Viewer icon for the Behaviour property in Property Editor to set the values.

Name will filter the MES object name that should be included as nodes. Default, MaterialClass and ResponseSegment are the values inbuilt on Ignition, as shown below. HeaderBackground is the color of the node header. HeaderFontColor will decide the color of the text. Color of the node is determined by BodyBackground. BodyFontColor will decide the color of the text. The color of the nodes with sublots will be controlled by HasSublotFontColor. BorderColor is the color of the border.

Component Properties

Properties are provided that can be set to affect the operation and look of the component. They can be set through the Property Editor in the Designer or through scripting.

Example

Copy Code

Code

event.source.parent.getComponent('MES Trace Graph').detailedMode = False

Behavior

Name	Scripting	Property Type	Description
Allow Material Lot Modify	allowMaterialLotModify	Boolean	If true, show the modify menu item and allow material lots to be modified.
Allow Segment Modify	allowSegmentModify	Boolean	If true, show the modify menu item and allow response segments to be modified.
Lot Name	lotName	String	Lot name to show trace graph for. If this is set, it will ignore the Lot UUID property.
Lot UUID	lotUUID	String	Lot UUID to show trace graph for. If the Lot Name property is set, this property will be ignored.
Highlight Sublot Name	highlightSublotName	String	Optionally, set the name of the sub lot to highlight.
User Menu Items	userMenuItems	Dataset	A dataset that stores user menu items.
Enable Auto Sizing	enableAutoSizing	Boolean	If true, auto size on right mouse clicked on open space.
Node Configuration	nodeConfiguration	Dataset	A dataset that stores node configuration.

Data

Name	Scripting	Property Type	Description
Detailed Mode	detailedMode	Boolean	If true, more details are shown in the trace graph.
Max Fan Count	maxFanCount	int	The maximum number of nodes to fan out from a single node or fan in from a single node.

Appearance

Name	Scripting	Property Type	Description
Lot Tool Tip Format	lotToolTipFormat	String	Set to format the display of lot node tooltip. It is formatted in HTML and can reference the column names in the dataset that the trace graph display is generated from. The dataset results are the same as the Lot Trace Binding Function and Sublot Trace Binding Function that has full documentation of the available columns. Example<html>{LotName}<br/>{LotSequence}<br/>{LotStatus}<br/>{LotBeginDateTime}<br/>{LotEndDateTime}<br/>{MaterialName}<br/>{LotLocationName}</html> Possible Tooltips are: LotUUID LotName SublotUUID SublotName LotSequence LotUse LotBeginDateTime LotEndDateTime LotQuantity LotStatus MaterialUUID MaterialName LotLocationUUID LotLocationName SegmentUUID SegmentName SegmentBeginDateTime SegmentEndDateTime SegmentLocationUUID SegmentLocationName PrevSegmentUUID PrevLotUUID NextSegmentUUID NextLotUUID SegInCount SegOutCount LotInCount LotOutCount LotContainsSublot LotAvailability LotDescription LotEnabled LotAssembly LotUnits MaterialDescription MaterialEnabled EquipmentUUID EquipmentName EquipmentDescription EquipmentPath EquipmentEnabled SublotDescription SublotEnabled SublotAssembly SublotStatus Sublots CustomProperties
Segment Tool Tip Format	segmentToolTipFormat	String	Set to format to display the segment node tooltip. It is formatted in HTML and can reference the column names in the dataset that the trace graph display is generated from. The dataset results are the same as the Lot Trace Binding Function and Sublot Trace Binding Function that has full documentation of the available columns. Example:<html>{SegmentName}<br/>{SegmentLocationName}</html> Possible Tooltips are: LotUUID LotName SublotUUID SublotName LotSequence LotUse LotBeginDateTime LotEndDateTime LotQuantity LotStatus MaterialUUID MaterialName LotLocationUUID LotLocationName SegmentUUID SegmentName SegmentBeginDateTime SegmentEndDateTime SegmentLocationUUID SegmentLocationName PrevSegmentUUID PrevLotUUID NextSegmentUUID NextLotUUID SegInCount SegOutCount LotInCount LotOutCount LotContainsSublot LotAvailability LotDescription LotEnabled LotAssembly LotUnits MaterialDescription MaterialEnabled EquipmentUUID EquipmentName EquipmentDescription EquipmentPath EquipmentEnabled SublotDescription SublotEnabled SublotAssembly SublotStatus Sublots CustomProperties
Edge Color	edgeColor	Color	Color of the lines between nodes.
Sublot Match Text	sublotMatchText	String	Text to display when a lot contains the specified sublot name.
Breadcrumbs Visible	breadcrumbVisible	Boolean	Displays a list of breadcrumb links to previously viewed lot information.
Breadcrumb Font	breadcrumbFont	Font	Font used to display the breadcrumb links.
Breadcrumb Color	breadcrumbColor	Color	Color of the breadcrumb links.
Breadcrumb Underlined	breadcrumbUnderlined	Boolean	Show the breadcrumb links as underlined.
Breadcrumb Max Count	breadcrumbMax	int	The maximum count of breadcrumbs to keep in history.
Breadcrumb Icon Path	breadcrumbSeparatorIconPath	String	The relative path of an icon image used to separate the breadcrumb links.
Editor Title Font	editorTitleFont	Font	Font for titles of editing panels.
Category Font	categoryFont	Font	Font for category titles in editing table.
Property Font	propertyFont	Font	Font for properties in editing table.
Description Area Font	descriptionAreaFont	Font	Font for description area of editing table.
Button Font	buttonFont	Font	Font for buttons.
Close Button Font	closeButtonFont	Font	Font of the button to close the editing panel.
Miscellaneous Font	miscellaneousFont	Font	Font for miscellaneous components.
Title Background Color	titleBackgroundColor	Color	Color of the title background in the editing panel.
Title Text Color	titleTextColor	Color	Color of the title text in the editing panel.
Close Button Color	closeButtonColor	Color	Color of the button to close the editing panel.
Category Background Color	categoryBackgroundColor	Color	Background color of category rows.

Event Handlers

Event handlers provide the ability to add custom script when a user interacts with a component such as by clicking a mouse, selecting a menu item or when a component property changes.

userMenuItemClicked

Code Snippet

Copy Code

Code

 if event.getMenuItemName() == 'Show Details':
    #Get the response segment
    segment = system.mes.loadMESObject(event.getUUID())

    #Get the parent operations response UUID from the segment
    operationUUID = segment.getPropertyValue('OperationsResponseRefUUID')

    #Pass the operation response UUID to the OperationDetails
    #window so that it knows which operation to show the details for.
    system.nav.openWindow('Popups/OperationDetails', {'uuid':operationUUID})
    system.nav.centerWindow('Popups/OperationDetails')

elif event.getMenuItemName() == 'User Menu Item 1':
    #Get the response segment
    segment = system.mes.loadMESObject(event.getUUID())

    #These values (and more) can be used to query data external to Track and Trace
    begin = segment.getPropertyValue('BeginDateTime')
    end = segment.getPropertyValue('EndDateTime')
    equip = segment.getEquipment()
    print "Segment details: begin = %s, equipment name = %s" % (begin, end, equip.getName())

	For various methods associated with this event, see Trace Graph User Menu Event.

This event fires when the menu item is clicked, or if the user selects the menu item using the keyboard and presses the Enter key. It can also occur if an access key or shortcut key is pressed that is associated with the MenuItem.

Property	Description
.source	The component that fired this event.
.menuItemName	Name of the user menu item that triggered the event.
.nodeName	Name of the node. This is the same as the name of the MES object that is associated with the node.
.objectType	Name of the MES object type that is associated with the node.
.uuid	UUID of the MES object that is associated to the node.
.lotUUID	UUID of the material lot.
.lotName	Name of the material lot.
.lotSequence	The sequence number associated with the material lot.
.lotUse	The lot use type of the material.
.beginDateTime	Date and Time at which the event was triggered.
.materialUUID	UUID of the material.
.materialName	Name of the material.
.lotEquipmentUUID	UUID of the equipment lot.
.lotEquipmentName	Name of the equipment lot.
.segmentUUID	UUID of the segment.
.segmentName	Name of the segment.
.segmentEquipmentUUID	UUID of the segment equipment.
.segmentEquipmentName	Name of the segment equipment.

mouse

mouseClicked

This event signifies a mouse click on the source component. A mouse click the combination of a mouse press and a mouse release, both of which must have occurred over the source component. Note that this event fires after the pressed and released events have fired.

Property	Description
.source	The component that fired this event.
.button	The code for the button that caused this event to fire.
.clickCount	The number of mouse clicks associated with this event.
.x	The x-coordinate (with respect to the source component) of this mouse event.
.y	The y-coordinate (with respect to the source component) of this mouse event.
.popupTrigger	Returns True (1) if this mouse event is a popup trigger. What constitutes a popup trigger is operating system dependent, which is why this abstraction exists.
.altDown	True (1) if the Alt key was held down during this event, false (0) otherwise.
.controlDown	True (1) if the Ctrl key was held down during this event, false (0) otherwise.
.shiftDown	True (1) if the Shift key was held down during this event, false (0) otherwise.

mouseEntered

This event fires when the mouse enters the space over the source component.

Property	Description
.source	The component that fired this event.
.button	The code for the button that caused this event to fire.
.clickCount	The number of mouse clicks associated with this event.
.x	The x-coordinate (with respect to the source component) of this mouse event.
.y	The y-coordinate (with respect to the source component) of this mouse event.
.popupTrigger	Returns True (1) if this mouse event is a popup trigger. What constitutes a popup trigger is operating system dependent, which is why this abstraction exists.
.altDown	True (1) if the Alt key was held down during this event, false (0) otherwise.
.controlDown	True (1) if the Ctrl key was held down during this event, false (0) otherwise.
.shiftDown	True (1) if the Shift key was held down during this event, false (0) otherwise.

mouseExited

This event fires when the mouse leaves the space over the source component.

Property	Description
.source	The component that fired this event.
.button	The code for the button that caused this event to fire.
.clickCount	The number of mouse clicks associated with this event.
.x	The x-coordinate (with respect to the source component) of this mouse event.
.y	The y-coordinate (with respect to the source component) of this mouse event.
.popupTrigger	Returns True (1) if this mouse event is a popup trigger. What constitutes a popup trigger is operating system dependent, which is why this abstraction exists.
.altDown	True (1) if the Alt key was held down during this event, false (0) otherwise.
.controlDown	True (1) if the Ctrl key was held down during this event, false (0) otherwise.
.shiftDown	True (1) if the Shift key was held down during this event, false (0) otherwise.

mousePressed

This event fires when a mouse button is pressed down on the source component.

Property	Description
.source	The component that fired this event.
.button	The code for the button that caused this event to fire.
.clickCount	The number of mouse clicks associated with this event.
.x	The x-coordinate (with respect to the source component) of this mouse event.
.y	The y-coordinate (with respect to the source component) of this mouse event.
.popupTrigger	Returns True (1) if this mouse event is a popup trigger. What constitutes a popup trigger is operating system dependent, which is why this abstraction exists.
.altDown	True (1) if the Alt key was held down during this event, false (0) otherwise.
.controlDown	True (1) if the Ctrl key was held down during this event, false (0) otherwise.
.shiftDown	True (1) if the Shift key was held down during this event, false (0) otherwise.

mouseReleased

This event fires when a mouse button is released, if that mouse button's press happened over this component.

Property	Description
.source	The component that fired this event.
.button	The code for the button that caused this event to fire.
.clickCount	The number of mouse clicks associated with this event.
.x	The x-coordinate (with respect to the source component) of this mouse event.
.y	The y-coordinate (with respect to the source component) of this mouse event.
.popupTrigger	Returns True (1) if this mouse event is a popup trigger. What constitutes a popup trigger is operating system dependent, which is why this abstraction exists.
.altDown	True (1) if the Alt key was held down during this event, false (0) otherwise.
.controlDown	True (1) if the Ctrl key was held down during this event, false (0) otherwise.
.shiftDown	True (1) if the Shift key was held down during this event, false (0) otherwise.

mouseMotion

mouseDragged

Fires when the mouse moves over a component after a button has been pushed.

Property	Description
.source	The component that fired this event.
.button	The code for the button that caused this event to fire.
.clickCount	The number of mouse clicks associated with this event.
.x	The x-coordinate (with respect to the source component) of this mouse event.
.y	The y-coordinate (with respect to the source component) of this mouse event.
.popupTrigger	Returns True (1) if this mouse event is a popup trigger. What constitutes a popup trigger is operating system dependent, which is why this abstraction exists.
.altDown	True (1) if the Alt key was held down during this event, false (0) otherwise.
.controlDown	True (1) if the Ctrl key was held down during this event, false (0) otherwise.
.shiftDown	True (1) if the Shift key was held down during this event, false (0) otherwise.

mouseMoved

Fires when the mouse moves over a component, but no buttons are pushed.

Property	Description
.source	The component that fired this event.
.button	The code for the button that caused this event to fire.
.clickCount	The number of mouse clicks associated with this event.
.x	The x-coordinate (with respect to the source component) of this mouse event.
.y	The y-coordinate (with respect to the source component) of this mouse event.
.popupTrigger	Returns True (1) if this mouse event is a popup trigger. What constitutes a popup trigger is operating system dependent, which is why this abstraction exists.
.altDown	True (1) if the Alt key was held down during this event, false (0) otherwise.
.controlDown	True (1) if the Ctrl key was held down during this event, false (0) otherwise.
.shiftDown	True (1) if the Shift key was held down during this event, false (0) otherwise.

propertyChange

Fires whenever a bindable property of the source component changes. This works for standard and custom (dynamic) properties.

Property	Description
.source	The component that fired this event.
.newValue	The new value that this property changed to.
.oldValue	The value that this property was before it changed. Note that not all components include an accurate oldValue in their events.
.propertyName	The name of the property that changed. NOTE: Remember to always filter out these events for the property that you are looking for! Components often have many properties that change.

selectNode

Copy Code

Code

#This code will set a tooltip regarding the equipment path information
#Please expand the link below to see the various methods for selectNode event handler category
eqUUID = event.getSegmentEquipmentUUID()
eq = system.mes.loadMESObject(eqUUID)
event.source.setSegmentToolTipFormat(eq.getEquipmentPath())

	For various methods associated with this event handler category, see Trace Graph Select Node Event.

nodeClicked

The NodeClick event is generated when the user clicks a particular Node object.

Property	Description
.source	The component that fired this event.
.nodeName	Name of the node. This is the same as the name of the MES object that is associated with the node.
.objectType	Name of the MES object type that is associated with the node.
.uuid	UUID of the MES object that is associated to the node.
.lotUUID	UUID of the material lot.
.lotName	Name of the material lot.
.lotSequence	The sequence number associated with the material lot.
.lotUse	The lot use type of the material.
.beginDateTime	Date and Time to begin the segment.
.endDateTime	Date and Time to end the segment.
.materialUUID	UUID of the material.
.materialName	Name of the material.
.lotEquipmentUUID	UUID of the equipment lot.
.lotEquipmentName	Name of the equipment lot.
.segmentUUID	UUID of the segment.
.segmentName	Name of the segment.
.segmentEquipmentUUID	UUID of the segment equipment.
.segmentEquipmentName	Name of the segment equipment.

nodeEntered

This event is generated when the Node is being hovered over.

Property	Description
.source	The component that fired this event.
.nodeName	Name of the node. This is the same as the name of the MES object that is associated with the node.
.objectType	Name of the MES object type that is associated with the node.
.uuid	UUID of the MES object that is associated to the node.
.lotUUID	UUID of the material lot.
.lotName	Name of the material lot.
.lotSequence	The sequence number associated with the material lot.
.lotUse	The lot use type of the material.
.beginDateTime	Date and Time at which the event was triggered.
.endDateTime	Date and Time to end the segment.
.materialUUID	UUID of the material.
.materialName	Name of the material.
.lotEquipmentUUID	UUID of the equipment lot.
.lotEquipmentName	Name of the equipment lot.
.segmentUUID	UUID of the segment.
.segmentName	Name of the segment.
.segmentEquipmentUUID	UUID of the segment equipment.
.segmentEquipmentName	Name of the segment equipment.

Enter Node and Publish MES Document

Copy Code

Code

##Limit the types of nodes to Response Segments (i.e. the runtime capture of work in the plant)
if event.getType() == 'ResponseSegment':
	##LOAD A DOCUMENT FROM THE RESPONSE SEGMENT
	##From the event object, get the UUID of the node, in this case, the Response Segment.
	##Based on the Response Segment UUID, we will load a link (or lightweight reference) to the object
	##and pass that to the MES Document Viewer component.  The MES Document Viewer component
	##will then be able to load complex data, such as a document, stored on the object.
	segLink = system.mes.object.link.create('ResponseSegment', event.getUUID())
	event.source.parent.getComponent('MES Document Viewer').selectedMESObject = segLink
	##Set the name of the document on the Document Viewer component
	event.source.parent.getComponent('MES Document Viewer').artifactName = 'Widget Work Instructions'

	##LOAD OPERATION INFO FROM THE OPERATIONS RESPONSE
	##Load the Response Segment in order to get the Operation reference information.
	##From the Operation UUID, create a link to the Operation and pass this link to the MES Operation Info component.
	seg = system.mes.loadMESObject(event.getUUID())
	orLink = system.mes.object.link.create('OperationsResponse', seg.getPropertyValue('OperationsResponseRefUUID'))
	event.source.parent.getComponent('MES Operation Info').mesObjectLink = orLink

nodeExited

This event is generated when drag gesture exits this Node.

Property	Description
.source	The component that fired this event.
.nodeName	Name of the node. This is the same as the name of the MES object that is associated with the node.
.objectType	Name of the MES object type that is associated with the node.
.uuid	UUID of the MES object that is associated to the node.
.lotUUID	UUID of the material lot.
.lotName	Name of the material lot.
.lotSequence	The sequence number associated with the material lot.
.lotUse	The lot use type of the material.
.beginDateTime	Date and Time at which the event was triggered.
.endDateTime	Date and Time to end the segment.
.materialUUID	UUID of the material.
.materialName	Name of the material.
.lotEquipmentUUID	UUID of the equipment lot.
.lotEquipmentName	Name of the equipment lot.
.segmentUUID	UUID of the segment.
.segmentName	Name of the segment.
.segmentEquipmentUUID	UUID of the segment equipment.
.segmentEquipmentName	Name of the segment equipment.

Extension Functions

beginRefresh

Description

Called before refresh begins. It can be used to display updating status messages.

Parameters

None

Return

Nothing

Scope

Client

endRefresh

Description

Called after refresh ends. It can be used to display updating status messages.

Parameters

Boolean cancelled - True if the request is cancelled. If a request for trace graph information is replaced with another request, then the first request is cancelled and this parameter will be True.

Return

Nothing

Scope

Client

loadIcon

Description

Provides a chance to change an icon. Based on the icon name parameter, return the image path to the icon to use in place of the default icon.

Parameters

self - A reference to the component that is invoking this function.

iconName - The name of the icon.

Returns

Nothing

Scope

Client

Example

Copy Code

Code

# This example will return a path to a different image to replace the default delete image:
if iconName == 'remove':
	return 'Builtin/icons/24/delete2.png'

Custom Methods

Custom methods allow you to add your own component functions to a component that can be called through scripting. This is a useful and clean method of re-using script that is specific to the component (say you want to update a visual aspect of the component in the same way whether a user clicks on the component or a window property value changes). See Component Custom Methods in the Ignition Help Manual for more information.

Customizers

This component does not have any custom properties.

Event Objects

Trace Graph Select Node Event

Description

This object is returned by the selectNode event handler for MES Trace Graph component.

Methods:

getBeginDateTime()

Description

Get the beginning date and time to limit the results to return.

Syntax

getBeginDateTime()

Parameters

None

Returns

Date beginDateTime - The beginning date and time to filter results.

getEndDateTime()

Description

Get the end date and time to limit the results to return.

Syntax

getEndDateTime()

Parameters

None

Returns

Date endDateTime - The end date and time to filter results.

getLotEquipmentName()

Description

Gets name assigned to the equipment lot.

Syntax

getLotEquipmentName()

Parameters

None

Returns

String lotEquipmentName - The name of equipment lot.

getLotEquipmentUUID()

Description

Gets uuid assigned to the equipment lot.

Syntax

getLotEquipmentUUID()

Parameters

None

Returns

String lotEquipmentUUID - The uuid of equipment lot.

getLotName()

Description

Gets name assigned to the material lot.

Syntax

getLotName()

Parameters

None

Returns

String lotName - The name of material lot.

getLotSequence()

Description

Gets sequence of the material lot.

Syntax

getLotSequence()

Parameters

None

Returns

String lotSequence - The sequence of material lot.

getLotUse()

Description

Gets use property for the material lot.

Syntax

getLotUse()

Parameters

None

Returns

String lotUse - The use property of material lot.

getLotUUID()

Description

Gets uuid assigned to the material lot.

Syntax

getLotUUID()

Parameters

None

Returns

String uuid - The uuid of material lot.

getMaterialName()

Description

Gets name assigned to the material object.

Syntax

getMaterialName()

Parameters

None

Returns

String name - The name of material object.

getMaterialUUID()

Description

Gets uuid assigned to the material object.

Syntax

getMaterialUUID()

Parameters

None

Returns

String uuid - The uuid of material object.

getNodeName()

Description

Returns name of the selected node.

Syntax

getNodeName()

Parameters

None

Returns

String name - The name of the selected node.

getSegmentEquipmentName()

Description

Gets name assigned to the equipment segment.

Syntax

getSegmentEquipmentName()

Parameters

None

Returns

String segmentEquipmentName - The name of equipment segment.

getSegmentEquipmentUUID()

Description

Gets uuid assigned to the equipment segment.

Syntax

getSegmentEquipmentUUID()

Parameters

None

Returns

String segmentEquipmentUUID - The uuid of equipment segment.

getSegmentName()

Description

Gets name of the segment.

Syntax

getSegmentName()

Parameters

None

Returns

String name - The name of the segment.

getSegmentUUID()

Description

Gets uuid of the segment.

Syntax

getSegmentUUID()

Parameters

None

Returns

String uuid - The uuid of the segment.

getType()

Description

Gets type of the object.

Syntax

getType()

Parameters

None

Returns

String type - The type of MES object.

getUUID()

Description

Gets uuid of the object.

Syntax

getUUID()

Parameters

None

Returns

String uuid - The uuid of MES object.

setBeginDateTime(beginDateTime)

Description

Set the beginning date and time to limit the results to return.

Syntax

setBeginDateTime(beginDateTime)

Parameters

Date beginDateTime - The beginning date and time to filter results.

Returns

Nothing

setEndDateTime(endDateTime)

Description

Set the end date and time to limit the results to return.

Syntax

setEndDateTime(endDateTime)

Parameters

Date endDateTime - The end date and time to filter results.

Returns

Nothing

setLotEquipmentName(lotEquipmentName)

Description

Sets name assigned to the equipment lot.

Syntax

setLotEquipmentName(lotEquipmentName)

Parameters

String lotEquipmentName - The name of equipment lot.

Returns

Nothing

setLotEquipmentUUID(lotEquipmentUUID)

Description

Sets uuid assigned to the equipment lot.

Syntax

setLotEquipmentUUID(lotEquipmentUUID)

Parameters

String lotEquipmentUUID - The uuid of equipment lot.

Returns

Nothing

setLotName(lotName)

Description

Sets name for the material lot.

Syntax

setLotName(lotName)

Parameters

String lotName - Name to set for material lot.

Returns

Nothing

setLotSequence(lotSequence)

Description

Gets sequence of the material lot.

Syntax

setLotSequence(lotSequence)

Parameters

String lotSequence - The sequence of material lot.

Returns

Nothing

setLotUse(lotUse)

Description

Sets use property for the material lot.

Syntax

setLotUse(lotUse)

Parameters

String lotUse - The use property of material lot.

Returns

Nothing

setLotUUID(uuid)

Description

Sets uuid to the material lot.

Syntax

setLotUUID(uuid)

Parameters

String uuid - The uuid to set for material lot.

Returns

Nothing

setMaterialName(name)

Description

Sets name assigned to the material object.

Syntax

setMaterialName(name)

Parameters

String name - The name of material object.

Returns

Nothing

setMaterialUUID(materialUUID)

Description

Sets uuid assigned to the material object.

Syntax

setMaterialUUID(materialUUID)

Parameters

String uuid - The uuid of material object.

Returns

Nothing

setNodeName(name)

Description

Sets name of the selected node.

Syntax

setNodeName(name)

Parameters

String name - The name of the selected node.

Returns

Nothing

setSegmentEquipmentName(segmentEquipmentName)

Description

Sets name assigned to the equipment segment.

Syntax

setSegmentEquipmentName(segmentEquipmentName)

Parameters

String segmentEquipmentName - The name of equipment segment.

Returns

Nothing

setSegmentEquipmentUUID(segmentEquipmentUUID)

Description

Sets uuid assigned to the equipment segment.

Syntax

setSegmentEquipmentUUID(segmentEquipmentUUID)

Parameters

String segmentEquipmentUUID - The uuid of equipment segment.

Returns

Nothing

setSegmentName(name)

Description

Sets name of the segment.

Syntax

setSegmentName(name)

Parameters

String name - The name of the segment.

Returns

Nothing

setSegmentUUID(segmentUUID)

Description

Sets uuid of the segment.

Syntax

setSegmentUUID(segmentUUID)

Parameters

String uuid - The uuid of the segment.

Returns

Nothing

setType(type)

Description

Sets type of the object.

Syntax

setType(type)

Parameters

String type - The type of MES object.

Returns

Nothing

setUUID(uuid)

Description

Sets uuid of the object.

Syntax

setUUID(uuid)

Parameters

String uuid - The uuid of MES object.

Returns

Nothing

Trace Graph User Menu Event

Description

This object is returned by the userMenuItemClicked event handler for MES Trace Graph component.

Methods:

getBeginDateTime()

Description

Get the beginning date and time to limit the results to return.

Syntax

getBeginDateTime()

Parameters

None

Returns

Date beginDateTime - The beginning date and time to filter results.

getEndDateTime()

Description

Get the end date and time to limit the results to return.

Syntax

getEndDateTime()

Parameters

None

Returns

Date endDateTime - The end date and time to filter results.

getLotEquipmentName()

Description

Gets name assigned to the equipment lot.

Syntax

getLotEquipmentName()

Parameters

None

Returns

String lotEquipmentName - The name of equipment lot.

getLotEquipmentName()

Description

Gets name of the equipment lot.

Syntax

getLotEquipmentName()

Parameters

None

Returns

String lotEquipmentName - The name of equipment lot.

getLotEquipmentUUID()

Description

Gets uuid assigned to the equipment lot.

Syntax

getLotEquipmentUUID()

Parameters

None

Returns

String lotEquipmentUUID - The uuid of equipment lot.

getLotName()

Description

Gets name assigned to the material lot.

Syntax

getLotName()

Parameters

None

Returns

String lotName - The name of material lot.

getLotSequence()

Description

Gets sequence of the material lot.

Syntax

getLotSequence()

Parameters

None

Returns

String lotSequence - The sequence of material lot.

getLotUse()

Description

Gets use property for the material lot.

Syntax

getLotUse()

Parameters

None

Returns

String lotUse - The use property of material lot.

getLotUUID()

Description

Gets uuid assigned to the material lot.

Syntax

getLotUUID()

Parameters

None

Returns

String uuid - The uuid of material lot.

getMaterialName()

Description

Gets name assigned to the material object.

Syntax

getMaterialName()

Parameters

None

Returns

String name - The name of material object.

getMaterialUUID()

Description

Gets uuid assigned to the material object.

Syntax

getMaterialUUID()

Parameters

None

Returns

String uuid - The uuid of material object.

getMenuItemName()

Description

Returns the name of the selected menu item.

Syntax

getMenuItemName()

Parameters

None

Returns

String itemName - The name of the selected menu item.

getNodeName()

Description

Returns name of the node.

Syntax

getNodeName()

Parameters

None

Returns

String name - The name of the node.

getObjectType()

Description

Gets type of the object.

Syntax

getObjectType()

Parameters

None

Returns

String type - The type of MES object.

getSegmentEquipmentName()

Description

Gets name assigned to the equipment segment.

Syntax

getSegmentEquipmentName()

Parameters

None

Returns

String segmentEquipmentName - The name of equipment segment.

getSegmentEquipmentUUID()

Description

Gets uuid assigned to the equipment segment.

Syntax

getSegmentEquipmentUUID()

Parameters

None

Returns

String segmentEquipmentUUID - The uuid of equipment segment.

getSegmentName()

Description

Gets name of the segment.

Syntax

getSegmentName()

Parameters

None

Returns

String name - The name of the segment.

getSegmentUUID()

Description

Gets uuid of the segment.

Syntax

getSegmentUUID()

Parameters

None

Returns

String uuid - The uuid of the segment.

getUUID()

Description

Gets uuid of the object.

Syntax

getUUID()

Parameters

None

Returns

String uuid - The uuid of MES object.

setBeginDateTime(beginDateTime)

Description

Set the beginning date and time to limit the results to return.

Syntax

setBeginDateTime(beginDateTime)

Parameters

Date beginDateTime - The beginning date and time to filter results.

Returns

Nothing

setEndDateTime(endDateTime)

Description

Set the end date and time to limit the results to return.

Syntax

setEndDateTime(endDateTime)

Parameters

Date endDateTime - The end date and time to filter results.

Returns

Nothing

setLotEquipmentName(lotEquipmentName)

Description

Sets name assigned to the equipment lot.

Syntax

setLotEquipmentName(lotEquipmentName)

Parameters

String lotEquipmentName - The name of equipment lot.

Returns

Nothing

setLotEquipmentUUID(lotEquipmentUUID)

Description

Sets uuid assigned to the equipment lot.

Syntax

setLotEquipmentUUID(lotEquipmentUUID)

Parameters

String lotEquipmentUUID - The uuid of equipment lot.

Returns

Nothing

setLotName(lotName)

Description

Sets name for the material lot.

Syntax

setLotName(lotName)

Parameters

String lotName - Name to set for material lot.

Returns

Nothing

setLotSequence(lotSequence)

Description

Gets sequence of the material lot.

Syntax

setLotSequence(lotSequence)

Parameters

String lotSequence - The sequence of material lot.

Returns

Nothing

setLotUse(lotUse)

Description

Sets use property for the material lot.

Syntax

setLotUse(lotUse)

Parameters

String lotUse - The use property of material lot.

Returns

Nothing

setLotUUID(uuid)

Description

Sets uuid to the material lot.

Syntax

setLotUUID(uuid)

Parameters

String uuid - The uuid to set for material lot.

Returns

Nothing

setMaterialName(name)

Description

Sets name assigned to the material object.

Syntax

setMaterialName(name)

Parameters

String name - The name of material object.

Returns

Nothing

setMaterialUUID(materialUUID)

Description

Sets uuid assigned to the material object.

Syntax

setMaterialUUID(materialUUID)

Parameters

String uuid - The uuid of material object.

Returns

Nothing

setSegmentEquipmentName(segmentEquipmentName)

Description

Sets name assigned to the equipment segment.

Syntax

setSegmentEquipmentName(segmentEquipmentName)

Parameters

String segmentEquipmentName - The name of equipment segment.

Returns

Nothing

setSegmentEquipmentUUID(segmentEquipmentUUID)

Description

Sets uuid assigned to the equipment segment.

Syntax

setSegmentEquipmentUUID(segmentEquipmentUUID)

Parameters

String segmentEquipmentUUID - The uuid of equipment segment.

Returns

Nothing

setSegmentName(name)

Description

Sets name of the segment.

Syntax

setSegmentName(name)

Parameters

String name - The name of the segment.

Returns

Nothing

setSegmentUUID(segmentUUID)

Description

Sets uuid of the segment.

Syntax

setSegmentUUID(segmentUUID)

Parameters

String uuid - The uuid of the segment.

Returns

Nothing

Customizers

This component does not have any custom properties.

Component Functions

This component provide the following functions that can be called on it. If this component has been dropped onto the windows root container, the path and an example call would be event.source.parent.getComponent('MES Trace Graph').autoFit().

autoFit()

Description

The trace graph is automatically resized as necessary to fit. Zooms a display such that all items within a given group will fit within the display bounds. By default, this achieved by clicking the right mouse button once, with no dragging.

Parameters

None

Return

Nothing

Scope

Client

Example

Copy Code

Code

event.source.parent.getComponent('MES Trace Graph').autoFit()

getBackground()

Description

Gets background color of the trace graph.

Parameters

None

Return

Color bg - Background color of the trace graph.

Scope

Client

Example

Copy Code

Code

event.source.parent.getComponent('MES Trace Graph').getBackground()

getBreadcrumbColor()

Description

Gets the breadcrumb color of trace graph.

Parameters

None

Return

Color breadcrumbColor - The breadcrumbColor color.

Scope

Client

Example

Copy Code

Code

event.source.parent.getComponent('MES Trace Graph').getBreadcrumbColor()

getBreadcrumbFont()

Description

Gets the breadcrumb font of trace graph.

Parameters

None

Return

Font breadcrumbFont - The breadcrumb font.

Scope

Client

Example

Copy Code

Code

event.source.parent.getComponent('MES Trace Graph').getBreadcrumbFont()

getNodeConfiguration()

Description

Gets the node configuration of the trace graph.

Parameters

None

Return

Dataset nodeConfiguration - Dataset representing the node configuration.

Scope

Client

Code Example

Example

Copy Code

Code

data=event.source.parent.getComponent('MES Trace Graph').getNodeConfiguration()
for row in range(data.rowCount):
   for col in range(data.columnCount):
      print data.getValueAt(row, col)

Output

Copy Code

Code

Default
java.awt.Color[r=170,g=170,b=170]
java.awt.Color[r=255,g=255,b=255]
java.awt.Color[r=185,g=185,b=185]
java.awt.Color[r=0,g=0,b=0]
java.awt.Color[r=255,g=232,b=0]
java.awt.Color[r=0,g=0,b=0]
MaterialLot
java.awt.Color[r=81,g=96,b=130]
java.awt.Color[r=255,g=255,b=255]
java.awt.Color[r=170,g=170,b=170]
java.awt.Color[r=0,g=0,b=0]
java.awt.Color[r=255,g=232,b=0]
java.awt.Color[r=0,g=0,b=0]
Unload Station*
java.awt.Color[r=172,g=0,b=0]
java.awt.Color[r=255,g=255,b=255]
java.awt.Color[r=170,g=170,b=170]
java.awt.Color[r=0,g=0,b=0]
java.awt.Color[r=255,g=232,b=0]
java.awt.Color[r=0,g=0,b=0]
Dock
java.awt.Color[r=172,g=0,b=0]
java.awt.Color[r=255,g=255,b=255]
java.awt.Color[r=170,g=170,b=170]
java.awt.Color[r=0,g=0,b=0]
java.awt.Color[r=255,g=232,b=0]
java.awt.Color[r=0,g=0,b=0]
Cereal*
java.awt.Color[r=0,g=128,b=128]
java.awt.Color[r=255,g=255,b=255]
java.awt.Color[r=170,g=170,b=170]
java.awt.Color[r=0,g=0,b=0]
java.awt.Color[r=255,g=232,b=0]
java.awt.Color[r=0,g=0,b=0]
Malt*
java.awt.Color[r=219,g=118,b=0]
java.awt.Color[r=255,g=255,b=255]
java.awt.Color[r=170,g=170,b=170]
java.awt.Color[r=0,g=0,b=0]
java.awt.Color[r=255,g=232,b=0]
java.awt.Color[r=0,g=0,b=0]
Mash*
java.awt.Color[r=71,g=71,b=255]
java.awt.Color[r=255,g=255,b=255]
java.awt.Color[r=170,g=170,b=170]
java.awt.Color[r=0,g=0,b=0]
java.awt.Color[r=255,g=232,b=0]
java.awt.Color[r=0,g=0,b=0]
Filter*
java.awt.Color[r=172,g=172,b=0]
java.awt.Color[r=255,g=255,b=255]
java.awt.Color[r=170,g=170,b=170]
java.awt.Color[r=0,g=0,b=0]
java.awt.Color[r=255,g=232,b=0]
java.awt.Color[r=0,g=0,b=0]
ResponseSegment
java.awt.Color[r=35,g=109,b=60]
java.awt.Color[r=255,g=255,b=255]
java.awt.Color[r=170,g=170,b=170]
java.awt.Color[r=0,g=0,b=0]
java.awt.Color[r=255,g=232,b=0]
java.awt.Color[r=0,g=0,b=0]

getSegmentToolTipFormat()

Description

Gets tool tip format of the segment in trace graph.

Parameters

None

Return

String segmentToolTipFormat - Format for the segment tool tip.

Scope

Client

Code Example

Example

Copy Code

Code

event.source.parent.getComponent('MES Trace Graph').getSegmentToolTipformat()

Output

Copy Code

Code

<html>{SegmentName}<br/>{SegmentLocationName}</html>

getSublotMatchText()

Description

Gets the sublot match text to return all material lots that match this text.

Parameters

None

Return

String sublotMatchText - The sublot match text to return all the material lots.

Scope

Client

isAllowMaterialLotModify()

Description

Checks whether the material lot modification is allowed or not.

Parameters

None

Return

True if material lot modification is allowed and False otherwise.

Scope

Client

Example

Copy Code

Code

event.source.parent.getComponent('MES Trace Graph').isAllowMaterialLotModify()

isAllowSegmentModify()

Description

Checks whether the segment modification is allowed or not.

Parameters

None

Return

True if segment modification is allowed and False otherwise.

Scope

Client

Example

Copy Code

Code

event.source.parent.getComponent('MES Trace Graph').isAllowSegmentModify()

refresh()

Description

Makes an asynchronous request to update the trace graph to current data.

Parameters

None

Return

Nothing

Scope

Client

Example

Copy Code

Code

event.source.parent.getComponent('MES Trace Graph').refresh()

setAllowMaterialLotModify(allowMaterialLotModify)

Description

Sets the permission to modify the material lots. Setting to True will allow modification and False will deny modification.

Parameters

boolean allowMaterialLotModify - Set to True to allow modification and False otherwise.

Return

Nothing

Scope

Client

Example

Copy Code

Code

event.source.parent.getComponent('MES Trace Graph').setAllowMaterialLotModify()

setAllowSegmentModify(allowSegmentModify)

Description

Sets the permission to modify the segments. Setting to True will allow modification and False will deny modification.

Parameters

boolean allowSegmentModify - Set to True to allow modification and False otherwise.

Return

Nothing

Scope

Client

Example

Copy Code

Code

event.source.parent.getComponent('MES Trace Graph').setAllowSegmentModify()

setBackground(bg)

Description

Sets the background color for the trace graph.

Parameters

Color bg - The background color to set. Use system.gui.color to define colors.

Return

Nothing

Scope

Client

Example

Copy Code

Code

blanched_Almond = system.gui.color(255, 232, 204)
data=event.source.parent.getComponent('MES Trace Graph').setBackground(blanched_Almond)
print data

setBreadcrumbColor(breadcrumbColor)

Description

Sets the breadcrumb color for the trace graph.

Parameters

Color breadcrumbColor - The breadcrumbColor color to set.

Return

Nothing

Scope

Client

Example

Copy Code

Code

event.source.parent.getComponent('MES Trace Graph').setBreadcrumbColor("red")

setBreadcrumbFont(breadcrumbFont)

Description

Sets breadcrumb font for the trace graph.

Parameters

Font breadcrumbFont - The breadcrumb font to set.

Return

Nothing

Scope

Client

Example

Copy Code

Code

event.source.parent.getComponent('MES Trace Graph').setBreadcrumbFont("Serif")

setMaxFanCount(maxFanCount)

Description

Sets the maxFanCount (maximum number of lots to fan out) for the trace graph.

Parameters

int maxFanCount - The maximum number of lots to fan out to before returning an error. Compiling huge amounts of trace data requires system resources and typically is not useful to the end user. This setting is a safety to prevent inadvertently requesting huge amounts of trace data.

Return

Nothing

Scope

Client

Example

Copy Code

Code

event.source.parent.getComponent('MES Trace Graph').setMaxFanCount(3)

setNodeConfiguration(nodeConfiguration)

Description

Sets the node configuration of the trace graph.

Parameters

Dataset nodeConfiguration - Dataset representing the node configuration.

Return

Nothing

Scope

Client

setSegmentToolTipFormat(segmentToolTipFormat)

Description

Sets tool tip format of the segment in trace graph.

Parameters

String segmentToolTipFormat - Format for the segment tool tip.

Return

Nothing

Scope

Client

setSublotMatchText(sublotMatchText)

Description

Sets the sublot match text to return all material lots that match this text.

Parameters

String sublotMatchText - The sublot match text to return all the material lots.

Return

Nothing

Scope

Client

Sepasoft MES Module Suite
