Adding Production Items to a Recipe

Sepasoft MES Module Suite

Adding Items to a Machine Recipe

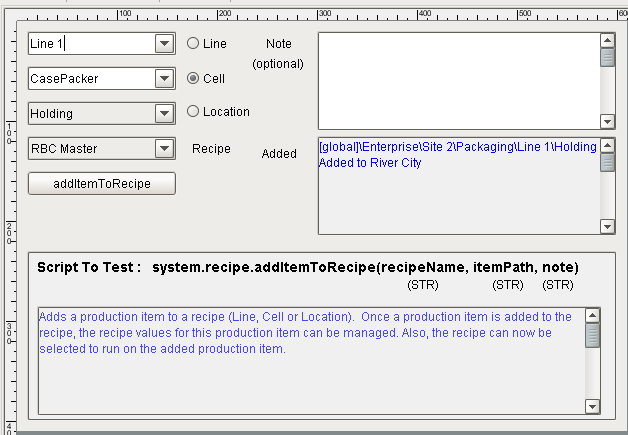

This example demonstrates how to add a production item to a recipe. The MES Object Selector component is used to select the production item. Other components used are Button, Label, Text Area and Radio Buttons.

Code Example

Copy Code

Python

#Button's actionPerformed event handler script

line = '[global]\\' + event.source.parent.getComponent('mesosLine').equipmentItemPath
cell = str(event.source.parent.getComponent('mesosCell').selectedName)
location = event.source.parent.getComponent('sellLocation').selectedLocationPath

recipeName = event.source.parent.getComponent('selRecipe').selectedRecipeName
note = event.source.parent.getComponent('taNote').text

#Radio Button Logic to determine the itemPath argument
if event.source.parent.getComponent('cntSelections').getComponent('rbLine').selected:
    itemPath = line
elif event.source.parent.getComponent('cntSelections').getComponent('rbCell').selected:
    itemPath = line + '\\' + cell
elif event.source.parent.getComponent('cntSelections').getComponent('rbLocation').selected:
    itemPath = location

try:
    system.recipe.addItemToRecipe(recipeName, itemPath, note)
    event.source.parent.getComponent('taNote').text = ''
    event.source.parent.getComponent('taAdded').text = ''
    event.source.parent.getComponent('taAdded').text = '
' + 'Production Item:' + '
'
    event.source.parent.getComponent('taAdded').text = itemPath + ' Added to ' + recipeName
except:
    system.gui.messageBox('Error - this Production Item already exists for this Recipe', 'Insert Failed')
    event.source.parent.getComponent('taAdded').text = ''
