Unit Manager Component Reference

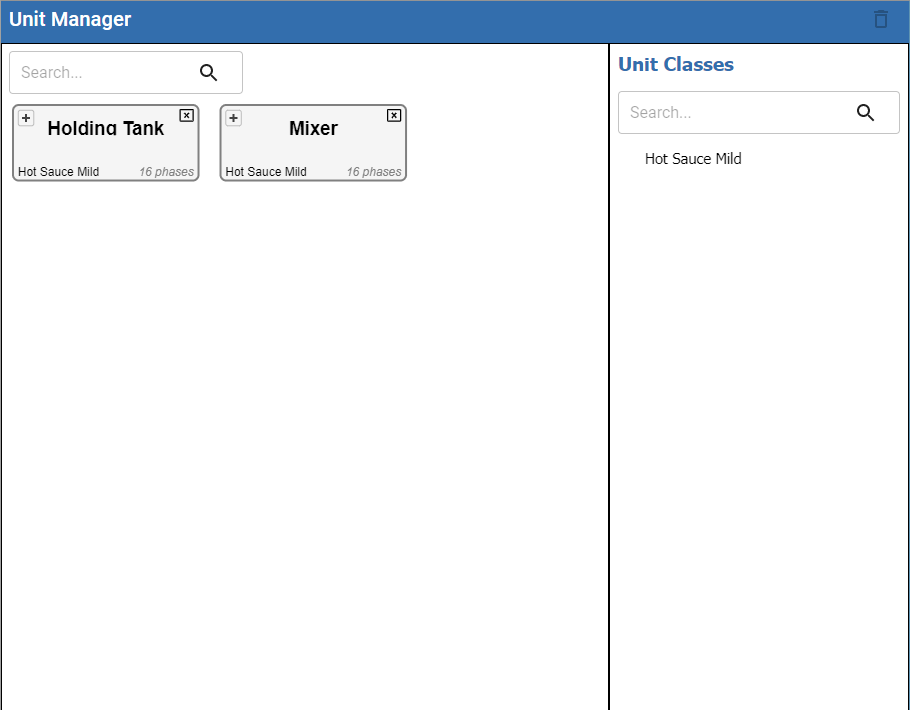

The Unit Manager is used to create Unit Classes that contain the Steps specific to a unit of equipment. This component is often used by engineers familiar with the equipment to create groups of Steps that enable creation of a Batch Recipe without the Recipe author knowing how the equipment functions.
The X in the upper-right corner of the Unit Class bubble removes it from the selected Unit.
Component Properties
There is only one configuration property for Unit Manager.
For user information, see Using Batch Unit Manager.
META Properties
| Name | unitManager |
Properties
| processCellPath | Full path to the equipment in the equipment model that represents the Process Cell. This can be linked to the MESObjectSelector for easy selection. |
