MES Analysis Controller

Sepasoft MES Module Suite

MES Analysis Controller in Vision

The analysis controller is an invisible component that makes analysis data available for reports and other components. The term invisible component means that the controller component appears in the designer, but is not visible from the client.

How to add columns into the dataset of the analysis controller from a custom property dataset?

Copy Code

Python

#Get the table data from the Analysis Controller
ds1 = event.source.parent.getComponent('Analysis Controller').tableData
colCount = ds1.getColumnCount()

#Get the custom property 'Area'
columnName = event.source.parent.getComponent('Analysis Controller').Area #Area is the column to be added
columnData = []
for i in range(ds1.getRowCount()):
 	columnData.append(i* 10)
#Adds 'Area' to the Analysis Controller's dataset
ds2 = system.dataset.addColumn(ds1, colCount, columnData, columnName, int)
event.source.parent.getComponent('Analysis Controller').tableData = ds2

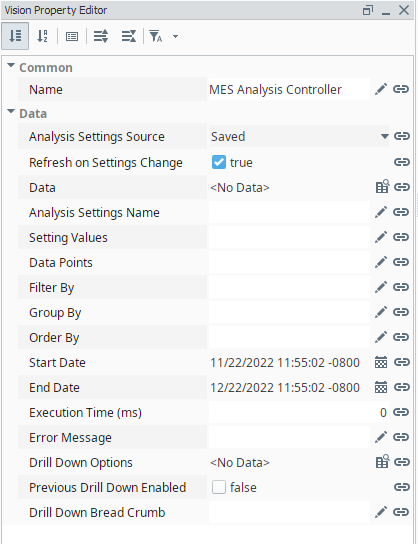

Component Properties

Properties are provided that can be set to affect the operation and look of the component. They can be set through the Property Editor in the Designer or through scripting.

Example

Copy Code

Python

event.source.parent.getComponent('MES Analysis Controller').previousDrillDownEnabled = True

Data

Name	Scripting	Property Type	Description
Refresh on Settings Change	refreshOnSettingsChange	boolean	If true, automatically refresh when analysis settings values change
Data	data	Dataset	Analysis results.
Drill Down Options	drillDownOptions	Dataset	Dataset containing drill down options.
Previous Drill Down Enabled	previousDrillDownEnabled	boolean	If true, then prevDrillDown.
Drill Down Bread Crumb	drillDownBreadCrumb	String	A string representing the drill down path.
Ignition Dataset	ignitionDataset	Dataset	Analysis results returned in an Ignition component friendly dataset. This property is not visible from the properties tab, but is accessbile for bindings to other components.
Analysis Settings Source	analysisSettingsSource	int	The source of the analysis settings. If set to Component, the component Data Points, Filter By, etc. property settings are used. If set to Saved, then the named analysis settings are used.
Analysis Settings Name	analysisSettingsName	String	Name of the analysis settings.
Filter By	filterBy	String	The filter section allows you to limit the data that is included in the analysis. For details, refer to the MES Analysis Selector.
Group By	groupBy	String	Group Bys are the factors used to group the analysis data. For details, refer to the MES Analysis Selector.
Order By	orderBy	String	Order Bys are the factors used to sort the analysis data. For details, refer to the MES Analysis Selector.
Data Points	dataPoints	String	Data points are the individual pieces of information that will be present in the analysis. For details, refer to the MES Analysis Selector.
Start Date	startDate	DateTime	Start Date.
End Date	endDate	DateTime	End Date.
Error Message	errorMessage	String	Error Message.
Execution Time (ms)	executionTime	long	Analysis execution time in milliseconds.
Setting Values	settingValues	String	Additional analysis setting values separated with commas.

Event Handlers

Event handlers provide the ability to add custom script when a user interacts with a component.

propertyChange

Fires whenever a bindable property of the source component changes. This works for standard and custom (dynamic) properties.

Property	Description
.source	The component that fired this event.
.newValue	The new value that this property changed to.
.oldValue	The value that this property was before it changed. Note that not all components include an accurate oldValue in their events.
.propertyName	The name of the property that changed. NOTE: Remember to always filter out these events for the property that you are looking for! Components often have many properties that change.

Extension Functions

getParameterValue

Description

Called to get a parameter value.

Parameters

self - A reference to the component that is invoking this function.

name - The parameter name as a string.

Return

The parameter value.

Scope

Client

Code Snippet

Copy Code

Code

def getParameterValue(self, name):

	##In this case, we check for the parameter named "eqPath", short for Equipment Path.
	##Return the parameter value as the Equipment Item Path of the MES Object Selector in the root container.
	##Note that this enables the use of the Stored Analysis in a Report (with parameter "@eqPath") and in vision module
	##screens with this Extension Function.
	if name == 'eqPath':

		return self.parent.getComponent('MES Object Selector').equipmentItemPath

beforeUpdate

Description

Called just before analysis data is refreshed.

Parameters

self - A reference to the component that is invoking this function.

Return

Nothing

Scope

Client

afterUpdate

Description

Called just after analysis data is refreshed.

Parameters

self - A reference to the component that is invoking this function.

data - The dataset that contains the new analysis data.

Return

Nothing

Scope

Client

Custom Methods

Custom methods allow you to add your own component functions to a component that can be called through scripting. This is a useful and clean method of re-using script that is specific to the component (say you want to update a visual aspect of the component in the same way whether a user clicks on the component or a window property value changes). See Component Custom Methods in the Ignition Help Manual for more information.

Component Functions

This component provide the following functions that can be called on it. If this component has been dropped onto the windows root container, the path and an example call would be event.source.parent.getComponent('MES Analysis Controller').refresh().

refresh()

Description

Causes the results to be refreshed.

Parameters

None

Return

Nothing

Scope

Client
