MES Lot Selector
A component to allow auto complete selection of MES Material Lot or MES Material Sublot objects. It contains many properties to filter the MES Material Lot or MES Material Sublot objects to include in the list. The auto complete feature will include only appropriate names that start with what the user has typed. This is very useful so scrolling of large lists does not have to be done and full lot or serial number does not have to be typed in.
There are two possible modes that the MES Lot Selector component can be used. If the Mode property is set to Lot, then the selector will be populated with MES Material Lot objects. If the Mode property is set to Sublot, then the selector will be populated with MES Material Sublot objects.
The Max Results property prevents a huge number of options from being loaded from the database along with all of the overhead of passing then to the client when the user will not use all of them. This along with the Begin Date Time and End Date Time properties, keep from taking up unneeded resources.
Component Palette
Component Properties
Info
|
Please go through the MES Inventory Filter for more details on each property. |

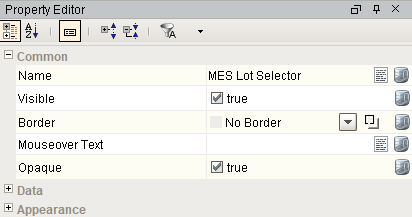

Properties are provided that can be set to affect the operation and look of the component. They can be set through the Property Editor in the Designer or through scripting.
Example
Code |
|
Data
| Name | Scripting | Property Type | Description |
|---|---|---|---|
| Mode | mode | Integer | Select what to search:
|
| Result Limit | resultLimit | Integer | Amount to limit the number of lots to show in the selector. |
| Include Active Lots | includeActiveLots | Boolean | If true, include lots that are currently being processed. |
| Include Inactive Lots | includeInactiveLots | Boolean | If true, include lots that are done being processed. |
| Include Supplemental Equipment | includeSupplementalEquipment | Boolean | If true, include lots located on supplemental equipment. |
| Lot Status Filter | lotStatusFilter | String | Filter value, including * and ? wildcard characters, to filter results by lot status. |
| Include Lot Sequence | includeLotSequence | Boolean | If true, include an item for each lot number and sequence combination. |
| Begin Date Time | beginDateTime | DateTime | The beginning date and time to include in the results. Only valid when Include Inactive Lots property is set to true. |
| End Date Time | endDateTime | DateTime | The ending date and time to include in the results. Only valid when Include Inactive Lots property is set to true. |
| Lot Name Filter | lotNameFilter | String | Filter value, including * and ? wildcard characters, to filter results by lot names. |
| Sublot Name Filter | sublotNameFilter | String | Filter value, including * and ? wildcard characters, to filter results by sublot names. |
| Lot Equipment Name Filter | lotEquipmentNameFilter | String | Filter value, including * and ? wildcard characters, to filter results by lot location names. |
| Lot Equipment Path Filter | lotEquipmentPathFilter | String | Filter value, including * and ? wildcard characters, to filter results by lot location paths. |
| Lot Equipment Class Name Filter | lotEquipmentClassFilter | String | Filter value, including * and ? wildcard characters, to filter results by class of lot location names. |
| Personnel Name Filter | personnelNameFilter | String | Filter value, including * and ? wildcard characters, to filter results by personnel names. |
| Personnel Class Name Filter | personnelClassFilter | String | Filter value, including * and ? wildcard characters, to filter results by personnel class names. |
| Material Name Filter | materialNameFilter | String | Filter value, including * and ? wildcard characters, to filter results by material names. |
| Material Class Name Filter | materialClassFilter | String | Filter value, including * and ? wildcard characters, to filter results by material class names. |
| Operation Name Filter | operationNameFilter | String | Filter value, including * and ? wildcard characters, to filter results by operation names. |
| Segment Name Filter | segmentNameFilter | String | Filter value, including * and ? wildcard characters, to filter results by segment names. |
| Segment Equipment Name Filter | segmentEquipmentNameFilter | String | Filter value, including * and ? wildcard characters, to filter results by segment location names. |
| Segment Equipment Path Filter | segmentEquipmentPathFilter | String | Filter value, including * and ? wildcard characters, to filter results by segment location paths. |
| Segment Equipment Class Name Filter | segmentEquipmentClassFilter | String | Filter value, including * and ? wildcard characters, to filter results by class of segment location names. |
| Custom Property Value Filter | customPropertyValueFilter | String | List of custom property name and value to filter results by. (E.g. "MaterialLot.CustomPropertyName=Value") |
| Selected UUID | selectedUUID | String | The selected operation UUID. |
| Selected Name | selectedName | String | The selected operation Name. |
| Selected Lot UUID | selectedLotUUID | String | The lot UUID for the currently selected lot. |
| Selected Lot Name | selectedLotName | String | The lot Name for the currently selected lot. |
| Selected Sublot UUID | selectedSublotUUID | String | The sublot UUID for the currently selected lot. |
| Selected Sublot Name | selectedSublotName | String | The sublot Name for the currently selected lot. |
| Data Quality | dataQuality | Integer | The data quality code for any tag bindings on this component. |
Event Handlers
Event handlers provide the ability to add custom script when a user interacts with a component such as by clicking a mouse, selecting a menu item or when a component property changes.
mouse
mouseClicked
This event signifies a mouse click on the source component. A mouse click the combination of a mouse press and a mouse release, both of which must have occurred over the source component. Note that this event fires after the pressed and released events have fired.
| Property | Description |
|---|---|
| .source | The component that fired this event. |
| .button | The code for the button that caused this event to fire. |
| .clickCount | The number of mouse clicks associated with this event. |
| .x | The x-coordinate (with respect to the source component) of this mouse event. |
| .y | The y-coordinate (with respect to the source component) of this mouse event. |
| .popupTrigger | Returns True (1) if this mouse event is a popup trigger. What constitutes a popup trigger is operating system dependent, which is why this abstraction exists. |
| .altDown | True (1) if the Alt key was held down during this event, false (0) otherwise. |
| .controlDown | True (1) if the Ctrl key was held down during this event, false (0) otherwise. |
| .shiftDown | True (1) if the Shift key was held down during this event, false (0) otherwise. |
mouseEntered
This event fires when the mouse enters the space over the source component.
| Property | Description |
|---|---|
| .source | The component that fired this event. |
| .button | The code for the button that caused this event to fire. |
| .clickCount | The number of mouse clicks associated with this event. |
| .x | The x-coordinate (with respect to the source component) of this mouse event. |
| .y | The y-coordinate (with respect to the source component) of this mouse event. |
| .popupTrigger | Returns True (1) if this mouse event is a popup trigger. What constitutes a popup trigger is operating system dependent, which is why this abstraction exists. |
| .altDown | True (1) if the Alt key was held down during this event, false (0) otherwise. |
| .controlDown | True (1) if the Ctrl key was held down during this event, false (0) otherwise. |
| .shiftDown | True (1) if the Shift key was held down during this event, false (0) otherwise. |
mouseExited
This event fires when the mouse leaves the space over the source component.
| Property | Description |
|---|---|
| .source | The component that fired this event. |
| .button | The code for the button that caused this event to fire. |
| .clickCount | The number of mouse clicks associated with this event. |
| .x | The x-coordinate (with respect to the source component) of this mouse event. |
| .y | The y-coordinate (with respect to the source component) of this mouse event. |
| .popupTrigger | Returns True (1) if this mouse event is a popup trigger. What constitutes a popup trigger is operating system dependent, which is why this abstraction exists. |
| .altDown | True (1) if the Alt key was held down during this event, false (0) otherwise. |
| .controlDown | True (1) if the Ctrl key was held down during this event, false (0) otherwise. |
| .shiftDown | True (1) if the Shift key was held down during this event, false (0) otherwise. |
mousePressed
This event fires when a mouse button is pressed down on the source component.
| Property | Description |
|---|---|
| .source | The component that fired this event. |
| .button | The code for the button that caused this event to fire. |
| .clickCount | The number of mouse clicks associated with this event. |
| .x | The x-coordinate (with respect to the source component) of this mouse event. |
| .y | The y-coordinate (with respect to the source component) of this mouse event. |
| .popupTrigger | Returns True (1) if this mouse event is a popup trigger. What constitutes a popup trigger is operating system dependent, which is why this abstraction exists. |
| .altDown | True (1) if the Alt key was held down during this event, false (0) otherwise. |
| .controlDown | True (1) if the Ctrl key was held down during this event, false (0) otherwise. |
| .shiftDown | True (1) if the Shift key was held down during this event, false (0) otherwise. |
mouseReleased
This event fires when a mouse button is released, if that mouse button's press happened over this component.
| Property | Description |
|---|---|
| .source | The component that fired this event. |
| .button | The code for the button that caused this event to fire. |
| .clickCount | The number of mouse clicks associated with this event. |
| .x | The x-coordinate (with respect to the source component) of this mouse event. |
| .y | The y-coordinate (with respect to the source component) of this mouse event. |
| .popupTrigger | Returns True (1) if this mouse event is a popup trigger. What constitutes a popup trigger is operating system dependent, which is why this abstraction exists. |
| .altDown | True (1) if the Alt key was held down during this event, false (0) otherwise. |
| .controlDown | True (1) if the Ctrl key was held down during this event, false (0) otherwise. |
| .shiftDown | True (1) if the Shift key was held down during this event, false (0) otherwise. |
mouseMotion
mouseDragged
Fires when the mouse moves over a component after a button has been pushed.
| Property | Description |
|---|---|
| .source | The component that fired this event. |
| .button | The code for the button that caused this event to fire. |
| .clickCount | The number of mouse clicks associated with this event. |
| .x | The x-coordinate (with respect to the source component) of this mouse event. |
| .y | The y-coordinate (with respect to the source component) of this mouse event. |
| .popupTrigger | Returns True (1) if this mouse event is a popup trigger. What constitutes a popup trigger is operating system dependent, which is why this abstraction exists. |
| .altDown | True (1) if the Alt key was held down during this event, false (0) otherwise. |
| .controlDown | True (1) if the Ctrl key was held down during this event, false (0) otherwise. |
| .shiftDown | True (1) if the Shift key was held down during this event, false (0) otherwise. |
mouseMoved
Fires when the mouse moves over a component, but no buttons are pushed.
| Property | Description |
|---|---|
| .source | The component that fired this event. |
| .button | The code for the button that caused this event to fire. |
| .clickCount | The number of mouse clicks associated with this event. |
| .x | The x-coordinate (with respect to the source component) of this mouse event. |
| .y | The y-coordinate (with respect to the source component) of this mouse event. |
| .popupTrigger | Returns True (1) if this mouse event is a popup trigger. What constitutes a popup trigger is operating system dependent, which is why this abstraction exists. |
| .altDown | True (1) if the Alt key was held down during this event, false (0) otherwise. |
| .controlDown | True (1) if the Ctrl key was held down during this event, false (0) otherwise. |
| .shiftDown | True (1) if the Shift key was held down during this event, false (0) otherwise. |
propertyChange
propertyChange
Fires whenever a bindable property of the source component changes. This works for standard and custom (dynamic) properties.
| Property | Description |
|---|---|
| .source | The component that fired this event. |
| .newValue | The new value that this property changed to. |
| .oldValue | The value that this property was before it changed. Note that not all components include an accurate oldValue in their events. |
| .propertyName | The name of the property that changed. NOTE: Remember to always filter out these events for the property that you are looking for! Components often have many properties that change. |
Extension Functions
lotSelected
- Description
Called before an MES Material is selected. Return false to prevent the MES Material Lot from being started.
- Parameters
self - A reference to the component that is invoking this function.
mesMaterialLot - The MESMaterialLot reference object. Use mesMaterialLot.getMESObject() to get the MES Material Lot itself.
- Return
1
- Scope
Client
Custom Methods
Custom methods allow you to add your own component functions to a component that can be called through scripting. This is a useful and clean method of re-using script that is specific to the component (say you want to update a visual aspect of the component in the same way whether a user clicks on the component or a window property value changes). See Component Custom Methods in the Ignition Help Manual for more information.
Customizers
This component does not have any custom properties.
Component Functions
This component provides the following function that can be called on it. If this component has been dropped onto the windows root container, the path and an example call would be event.source.parent.getComponent('MES Lot Selector').refresh().
refresh()
- Description
Updates contents to reflect any updates to the database since the object was created, or since the last refresh. By default, refresh is automatic for local operations when view navigation touches an update.
- Parameters
None
- Return
Nothing
- Scope
Client
