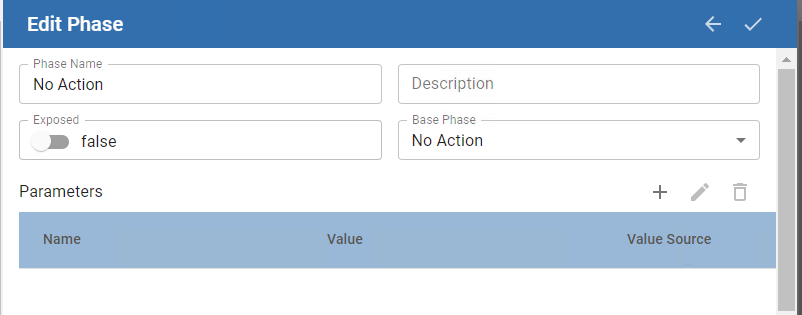

No Action Phase

The No Action phase is used as a place holder when a recipe should wait and do nothing until a transition is true.

The No Action phase can support tasks without allocating a unit. It can remain active until the transition below it evaluates to true or the state becomes Complete from an outside source.

Possible Use Case:

Rework of some product might require the ability to run routes without allocating units so that the rework can be done when the product is being manufactured.

For example:

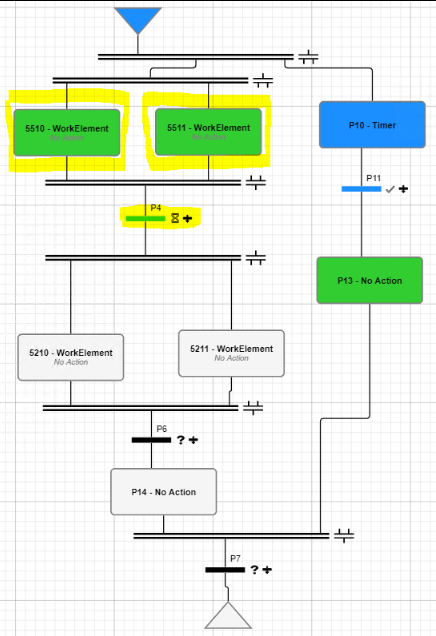

• Create a recipe that has No Action phases similar to that shown below. Be sure to use a transition expression that is NOT the Complete for the No Action phases. In the example shown, the transition expression looks at a parameter at the procedure (recipe) level.

• Run a batch using the recipe

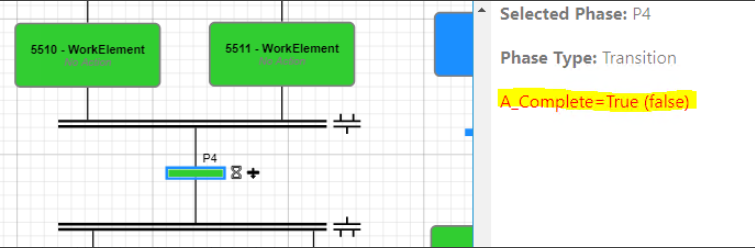

• The No Action phases executes until the transition evaluates to True.

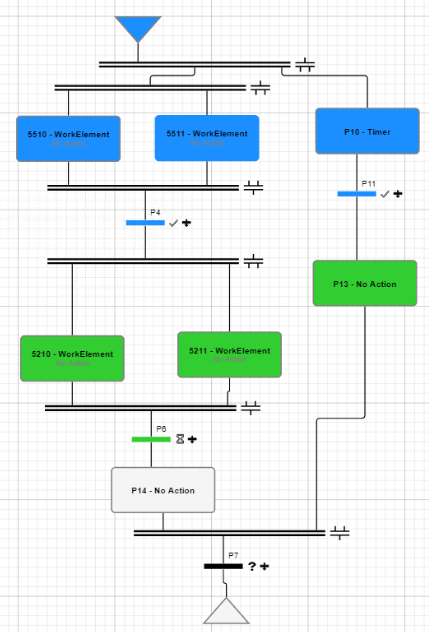

• Set the parameter for the transition to True to complete the No Action phases 5510 and 5511.

• Run the following script to manually execute 5511 again.

bqe = system.mes.batch.queue.getEntry('100028')
system.mes.batch.queue.executeStep(bqe, '/MtoO:5511')

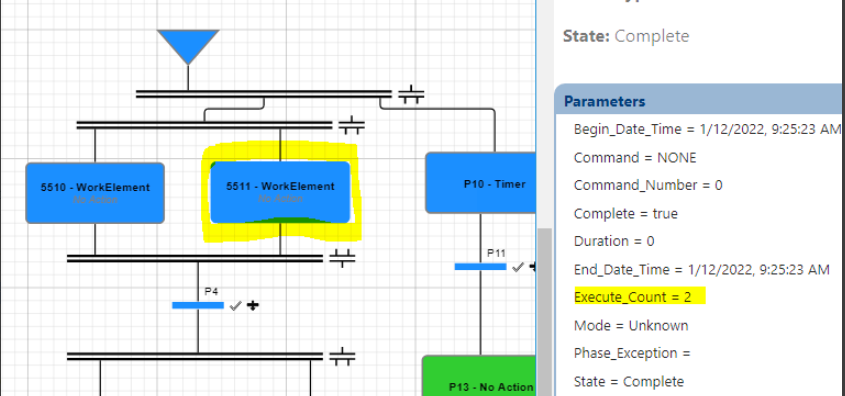

• Notice that it executes again by looking at the execute count.
