OEE Run Director Vision Component

OEE Run Director component is used to start and stop the production runs. Multiple operations can be run at a time by setting the Enable Simultaneous Active property to True. The button will start changeover, button will switch operation from changeover to production and button will end the run.

Component Properties

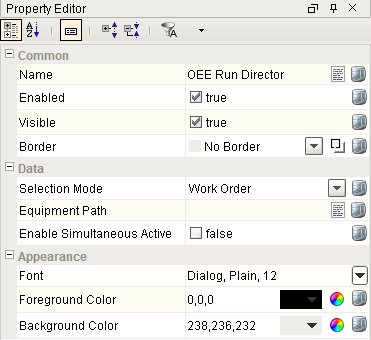

Properties are provided that can be set to affect the operation and look of the component. They can be set through the Property Editor in the Designer or through scripting.

Example

Copy Code
Code
# This example will return a path to a different image to replace the default delete image:
if iconName == 'remove':
	return 'Builtin/icons/24/delete2.png'

Data

Hidden


Event Handlers

Event handlers provide the ability to add custom script when a user interacts with a component.

propertyChange

propertyChange

Fires whenever a bindable property of the source component changes. This works for standard and custom (dynamic) properties.

Property Description
.source The component that fired this event.
.newValue The new value that this property changed to.
.oldValue The value that this property was before it changed. Note that not all components include an accurate oldValue in their events.
.propertyName

The name of the property that changed. NOTE: Remember to always filter out these events for the property that you are looking for! Components often have many properties that change. Event properties are listed in the table below.

Scripting Description
itemSelect Selected item name which is a work order or a material definition name
changeoverBegin Material definition name
changeoverEnd Material definition name
productionBegin Material definition name
productionEnd Material definition name
changeoverAbort Material definition name
productionAbort

Material definition name

Code Example

Code Snippet

Copy Code
Code
# This example will return a path to a different image to replace the default delete image:
if iconName == 'remove':
	return 'Builtin/icons/24/delete2.png'

Output

Copy Code
Code
propertyName: changeoverBegin
newValue: MatDef1
propertyName: previousProductIndexed
newValue: False
propertyName: productionAbort
newValue: MatDef1
propertyName: previousProductIndexed
newValue: True





Extension Functions

loadIcon

  • Description

Provides a chance to change an icon. Based on the icon name parameter, return the image path to the icon to use in place of the default icon.

  • Parameters

self - A reference to the component that is invoking this function.

iconName - The name of the icon.

  • Returns

Nothing

  • Scope

Client

Example

Copy Code
Code
# This example will return a path to a different image to replace the default delete image:
if iconName == 'remove':
	return 'Builtin/icons/24/delete2.png'



Custom Methods

Custom methods allow you to add your own component functions to a component that can be called through scripting. This is a useful and clean method of re-using script that is specific to the component (say you want to update a visual aspect of the component in the same way whether a user clicks on the component or a window property value changes). See Component Custom Methods in the Ignition Help Manual for more information.



Customizers

Custom Properties

The custom properties can be used to add user defined properties.


Component Functions

This component does not have functions associated with it.
