Settings Editor Table
A component that manages a single recipe for an item in the production equipment model (Line, Cell Group, Cell). An equipment path and recipe name must be provided to populate the table with recipe information.

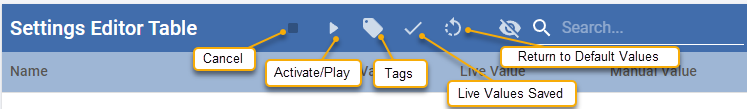

Actions available in the Settings Editor Table component:
These actions can be executed in the UI or scripting.
Activates /Play |
self.getSibling("settingsEditorTable").activateRecipe() |
| Cancel | Cancels the activation. self.getSibling("settingsEditorTable").cancelRecipe() |
| Tags | Updates the Live Values to current Ignition Tag Values. self.getSibling("settingsEditorTable").updateLiveValues() |
| Reset | The Manual Values column is cleared-out, and return to the default values. self.getSibling("settingsEditorTable").reset() |
Table Columns
| Table Column Name | Description |
|---|---|
| ID | The row number |
| Name | The setpoint's name |
| Setting Value | The value that is bound to this setpoint. |
| Live Value | The value of the tag that is bound to this setpoint. |
| Manual Value | A value that is manually set by the user. Activating the recipe causes the Manual Values to be used as the setpoints for variance monitoring. |
Component Properties
| Name | Description |
|---|---|
| equipmentPath | Required for loading a Recipe. |
| recipeName | Required for loading a Recipe. |
| liveUpdateInterval | Time in milliseconds to refresh the Live Tag Values column. A value of 0 or less turns the feature off. If the value is too fast, like 1 millisecond, the system will try to work "As-fast-as-possible" but as a safety- measure, it WILL NOT queue a new read task until the first one is finished. |
| data | Writing to this dataset is a very bad idea, but it is exposed in case users would like to read from it. |
| executionTimes | Returns the times in milliseconds of various tasks that have recently ran. Each of these tasks is associated with a loading-spinner, which means if they take too long, a loading screen will interrupt the User Interface. |
| validateUserSecurities | Ensures values the user types in can actually be casted to the appropriate data type (highly recommended that this stays on at all times) |
Properties
| Property Name | Description |
|---|---|
| equipmentPath | Path of the target equipment. |
| recipeName | Machine recipe name as set by scripting or in the Settings Editor Table. |
| liveUpdateInterval | Time in milliseconds to refresh activation status and setpoint values. Less than 1 turns this off. |
| data | The recipe settings data. |
| activeRecipe | recipeName: name of the active recipe. recipeUUID: UUID of recipe. trackingUUID: tracking UUID of recipe. |
| executionTimes | In milliseconds datasetLoadTime: time to load settings. manualActivationTime: time to execute settings. manualCollectionTime: time to cancel the recipe settings. readLiveValuesTime: time to read tags for setpoints. saveValuesTime: save current values to settings. resetManualValuesTime: time to reset manual-input overrides. |
| enableReactivations | When True, allows activations when a recipe is already active. |
| validateValueSecurities | When True, value security is verified before manual values are committed. |
| validateValueTypes | When True, value data-types is verified before manual values are committed. |
