SPC Analysis Selector

This component is installed with the SPC module.

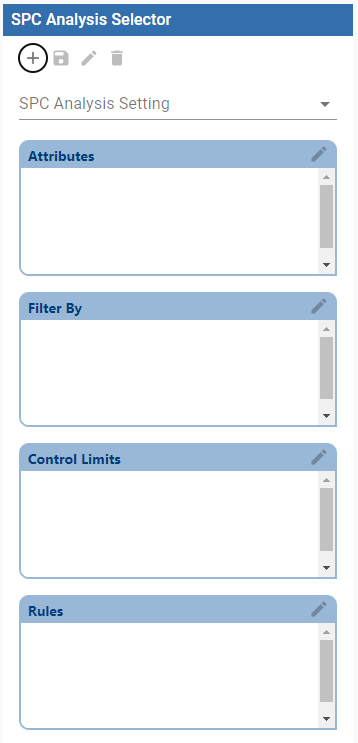

The Perspective SPC Analysis Selector:

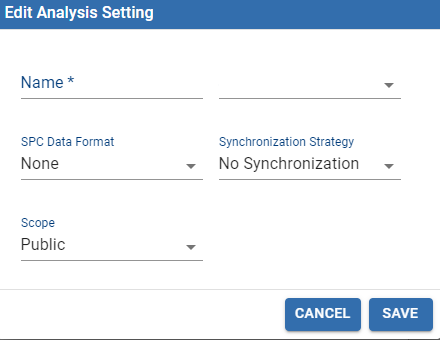

Analysis Settings

Setting Name
Description
Name
Sets the name of a stored setting.
SPC Data Format
SPC Chart format

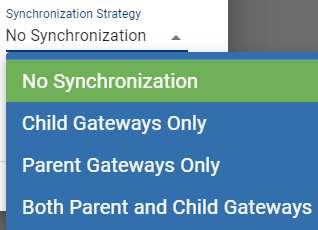

Synchronization Strategy

Scope
Public or Private. Based on login credentials. For example, if you set the Scope to Admin and the Synchronization Strategy to synchronize across gateways, all users with Admin privileges can see the stored setting.

    Component Properties


    Property Name
    		Description
    spcChartSettings

    storedSPCName: sets the name to an existing Stored SPC Setting.

    startDate: sets a start date in the data filter.

    endDate: sets an end data in the data filter.

    autoRefresh: ability to refresh data when sample or definition changes. Defaults to False.

    settings


    additionalFactors: adds an array of additional factors to include in the data

    attributeName: name of the sample attribute

    attributeUnits: unit label of the current sample attribute

    attributeFilter: summary of attribute filters in the data

    controlLimitSummary: summary of control limits in the data

    definitionName: name of the Sample Definition

    filterSummary: summary of the filters in the data

    measurement: measurement to filter on

    rowLimit: sets the maximum number of samples to return in the data

    signalSummary: summary of the signals in the data

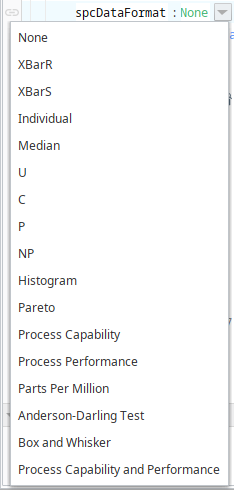

    spcDataFormat: sets a specific format for an SPC chart and returns the data in that format


    useDefaultChartType: when True, sets the chart type to the type defined in the Attribute Definition.


    histogram

    autoBarCount: when True the system automatically calculates the number bars in the Histogram results

    dataBarCount: when autoBarCount is False, dataBarCounts set the number bars in the results.

    paddingBarCount: sets the number of bars before and after the results.

    spcResults

    definitionUUID: UUID of a Sample Definition

    calculationValues: calculated values in the data

    measurementCount: number of measurements in the sample data

    messages: messages in the sample data.


    spcData: SPC data set

    showDisabled: when True, includes disabled Definitions.

    showMenu:when True, shows the menu in the SPC Analysis Selector
