Scripting in the Ignition Console


Access Libraries

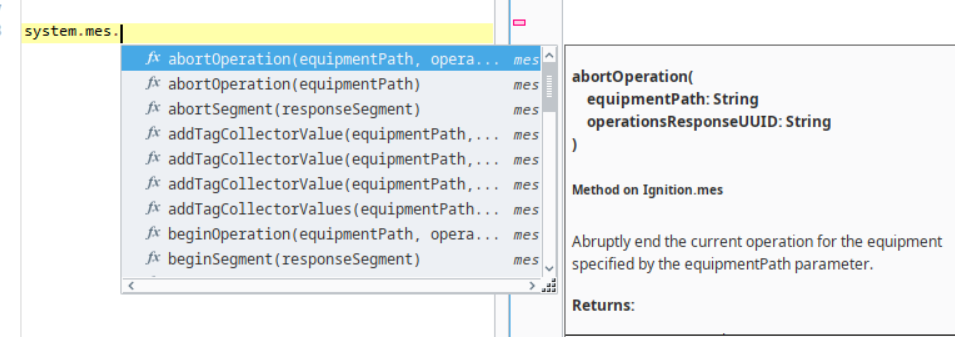

To access the MES libraries, type:

system.mes.

Once you hit the dot, you get libraries.

The Scripting Functions at this system.mes. level are universal to the MES objects. You can use these functions with MES objects.


Object Structure

Under the shared functions, are specific libraries to each available MES object. These are listed in alphabetical order.

Load an MES Object

If you need to get an MESObject, it's easiest to go to the link and then get the object itself.

For this example, load the top-level equipment, mes enterprise, object.

To get an MES Object, you could use several options and the one to use depends on the context of the use-case

such as:

loadMESObject

or

getMESObjectLink

In most cases, you will want to get a link to the object and then return the object by its link, as shown below:

  • Enter this code in the the Scripting Console:
Copy Code
Python
mesObjectTypeName ='Enterprise'
mesObjectName = 'New Enterprise'

# get the Enterprise object link
system.mes.getMESObjectLinkByName(mesObjectTypeName, mesObjectName)

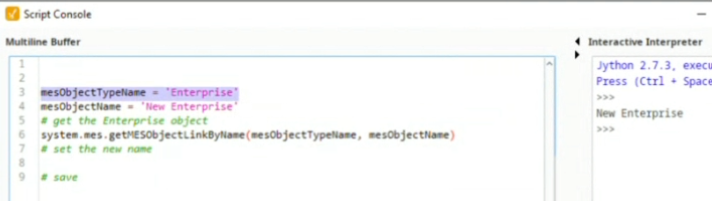

  • Execute and see New Enterprise on the right.

Returning the Object Type​
  • To see what is returned, enter:
Copy Code
Python
x = system.mes.getMESObjectLinkByName(mesObjectTypeName, mesObjectName)
type(x)

Using the Object Link
  • Enter this code to retrieve the object itself.
Copy Code
Python
#change the 'x' to 'eqLink' and get the object

eqLink = system.mes.getMESObjectLinkByName(mesObjectTypeName, mesObjectName)
eqp = eqLink.getMESObject()
type(eqpLink)
type(eqp)
  • Execute and Look at the results. First returns data type MESObjectLink and second object of MESEnterprise.


Now that the object is in memory, you can use the object methods.

Copy Code
Python
mesObjectTypeName = 'Enterprise'
currentEnterpriseName = 'New Enteprise'
enterpriseName = 'AAA'

# get the Enterprise object
eqLink = system.mes.getMESObjectLinkByName(mesObjectTypeName, currentEnterpriseName)
eqp = eqLink.getMESObject()
eqp.setName(enterpriseName)

View Available Methods on an MES Object

To introspect within the Scripts Console:

  • Enter dir(eqp) in the execution side of the console (right side)

This returns a long list of methods without any formatting that is hard to read.

Create a function for dir.

Copy Code
Python
#obj = the object passed | ss = search string | mm = all the members of that object
#cycle through one member at a time.
#add .upper to remove case sensitivity


def do(obj.ss):
  mm = dir(obj)
  for m in mm:
    if ss.upper in m.upper:
      print m
  • To introspect the eqp object, in the execution side of the console (right side), enter:

Copy Code
Python
do(eqp,'')
