Create Material Production Settings via Script 3.0

#creates material and material class if does not already exist
def configureMaterial(matName, matClass):
	import time
	try:
		matClassObj = system.mes.loadMESObject(matClass, 'MaterialClass')
	except:
		root = system.mes.loadMESObject('Material Root','MaterialRoot')
		matClassObj = system.mes.createMESObject('MaterialClass')
		matClassObj.setName(matClass)
		matClassObj.addParent(root)
		print 'creating material class',matClass
	matDefObj = system.mes.createMESObject('MaterialDef')
	matDefObj.setName(matName)
	matDefObj.addParent(matClassObj)
	list = system.mes.object.list.createList()
	list.add(matClassObj)
	list.add(matDefObj)
	system.mes.saveMESObjects(list)
	print 'creating material definition',matName
	time.sleep(1)

def configMaterialOperation(matName, matClassName, config):
    try:
    	matLink = system.mes.getMESObjectLinkByName('MaterialDef', matName)

    except:
    	configureMaterial(matName, matClassName)
    	matLink = system.mes.getMESObjectLinkByName('MaterialDef', matName)

    operList = system.mes.oee.createMaterialProcessSegment(matLink, config['linePath'])
    for opSeg in operList:
        #Set Operations Def progress tracking
        if opSeg.getMESObjectTypeName() == 'OperationsDefinition':
            print opSeg.getTrackProgressBy()
            if config.has_key('trackProductionBy') and config['trackProductionBy'] == 'time':
                opSeg.setTrackProgressBy('Use Time')
            else:
                opSeg.setTrackProgressBy('Material Out')
        if opSeg.getMESObjectTypeName() == 'OperationsSegment':
            #set up production settings
            if '_CO' not in opSeg.getName():
                matProp = opSeg.getComplexProperty('Material', 'Material Out')
                if matProp:
                    if config.has_key('scheduleRate'):
                        matProp.setRate(float(config['scheduleRate']))
                    if config.has_key('infeedUnits'):
                        matProp.setUnits(config['infeedUnits'])
                    if config.has_key('ratePeriod'):
                        matProp.setRatePeriod(config['ratePeriod'])
                #sets only line settings
                productionSettings = opSeg.getComplexProperty('ProductionSettings', 0)
                if config.has_key('OEERate'):
                    productionSettings.setOEERate(float(config['OEERate']))
                if config.has_key('outfeedUnits'):
                    productionSettings.setOutfeedUnits(config['outfeedUnits'])
                if config.has_key('infeedUnits'):
                    productionSettings.setInfeedUnits(config['infeedUnits'])
                if config.has_key('rejectUnits'):
                    productionSettings.setRejectUnits(config['rejectUnits'])
                if config.has_key('outfeedEquipmentPath'):
                    outfeedEquipLink = system.mes.getMESObjectLinkByEquipmentPath(config['outfeedEquipmentPath'])
                    productionSettings.setOutfeedEquipmentRef(outfeedEquipLink)
                if config.has_key('infeedEquipmentPath'):
                    infeedEquipLink = system.mes.getMESObjectLinkByEquipmentPath(config['infeedEquipmentPath'])
                    productionSettings.setInfeedEquipmentRef(infeedEquipLink)
                if config.has_key('packageCount'):
                    productionSettings.setPackageCount(float(config['packageCount']))
                opSeg.setPropertyValue('ProductionSettings', productionSettings)
                triggerEnd = opSeg.getPrimaryEndTrigger()
                if config.has_key('autoEndProduction'):
                    triggerEnd.setAuto(config['autoEndProduction'] == 'True')
                if config.has_key('trackProductionBy'):
                    if config['trackProductionBy'] == 'time':
                        triggerEnd.setMode('Schedule (time)')
                    else:
                        triggerEnd.setMode('Schedule (production)')
            else:
                #Set Changeover end settings
                triggerEnd = opSeg.getPrimaryEndTrigger()
                if config.has_key('autoEndChangeover'):
                    triggerEnd.setAuto(config['autoEndChangeover'] == 'True')
                if config.has_key('changeoverDuration'):
                    triggerEnd.setFixedDuration(int(config['changeoverDuration']))
    try:
        system.mes.saveMESObjects(operList)
        return True
    except:
        return False


materialDefName = 'test03'
materialClass = 'TestClass1'

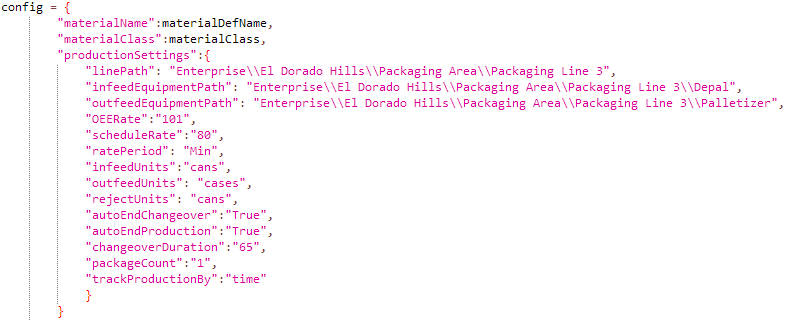

config = {
        "materialName":materialDefName,
        "materialClass":materialClass,
        "productionSettings":{
            "linePath": "Enterprise\El Dorado Hills\Packaging Area\Packaging Line 3",
            "infeedEquipmentPath": "Enterprise\El Dorado Hills\Packaging Area\Packaging Line 3\Depal",
            "outfeedEquipmentPath": "Enterprise\El Dorado Hills\Packaging Area\Packaging Line 3\Palletizer",
            "OEERate":"101",
            "scheduleRate":"80",
            "ratePeriod": "Min",
            "infeedUnits":"cans",
            "outfeedUnits": "cases",
            "rejectUnits": "cans",
            "autoEndChangeover":"True",
            "autoEndProduction":"True",
            "changeoverDuration":"65",
            "packageCount":"1",
            "trackProductionBy":"time"
            }
        }
#create material production settings
configMaterialOperation(config['materialName'], config['materialClass'], config['productionSettings'])
#Get all Settings for given material
matClassLink = system.mes.getMESObjectLinkByName('MaterialDef', materialDefName)
opsegs = system.mes.oee.getMaterialOperationsSegments(matClassLink, '*')
lineProdSettings = []
import pprint
for opSeg in opsegs:
    if '_CO' not in opSeg.getName():
        matProp = opSeg.getComplexProperty('Material', 'Material Out')
        print opSeg
        if matProp:
            lineSetting = {
            'linePath':opSeg.getEquipment().getEquipmentPath(),
            'ratePeriod': matProp.getRatePeriod(),
            'infeedUnits': matProp.getUnits(),
            'scheduleRate': matProp.getRate()
            }
            #returns only the line settings
            productionSettings = opSeg.getComplexProperty('ProductionSettings', 0)
            lineSetting.update({"OEERate":productionSettings.getOEERate()})
            lineSetting.update({"outfeedUnits":productionSettings.getOutfeedUnits()})
            if productionSettings.getOutfeedEquipmentRef():
                lineSetting.update({"outfeedEquipmentPath":productionSettings.getOutfeedEquipmentRef().getMESObject().getEquipmentPath()})
            else:
                lineSetting.update({"outfeedEquipmentPath":None})
            if productionSettings.getInfeedEquipmentRef():
                lineSetting.update({"infeedEquipmentPath": productionSettings.getInfeedEquipmentRef().getMESObject().getEquipmentPath()})
            else:
                lineSetting.update({"infeedEquipmentPath":None})
            lineSetting.update({"packageCount": productionSettings.getPackageCount()})
            triggerEnd = opSeg.getPrimaryEndTrigger()
            if triggerEnd:
                lineSetting.update({"trackProductionBy":triggerEnd.getMode()})
                lineSetting.update({"autoEndProduction":triggerEnd.isAuto()})
    else:
        triggerEnd = opSeg.getPrimaryEndTrigger()
        lineSetting.update({'autoEndChangeover':triggerEnd.isAuto()})
        lineSetting.update({'changeoverDuration':triggerEnd.getFixedDuration()})
        lineProdSettings.append(lineSetting)

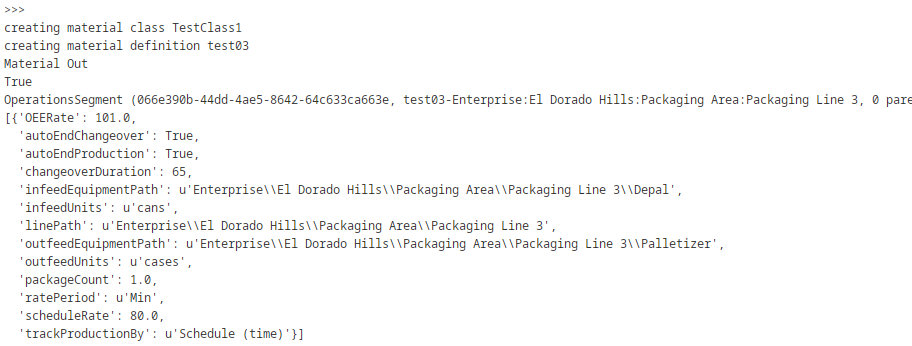

pprint.pprint(lineProdSettings)
