Create getProductionOrder RESTful Consumer

Create getProductionOrder RESTful Consumer

Note that:

  • getProductionOrders is a RESTful Provider in the Providers → RESTful Endpoints → InstructorTools folder.

  • getProductionOrder is a RESTful Consumer in the Consumers → RESTful Configurations → Tutorial folder.

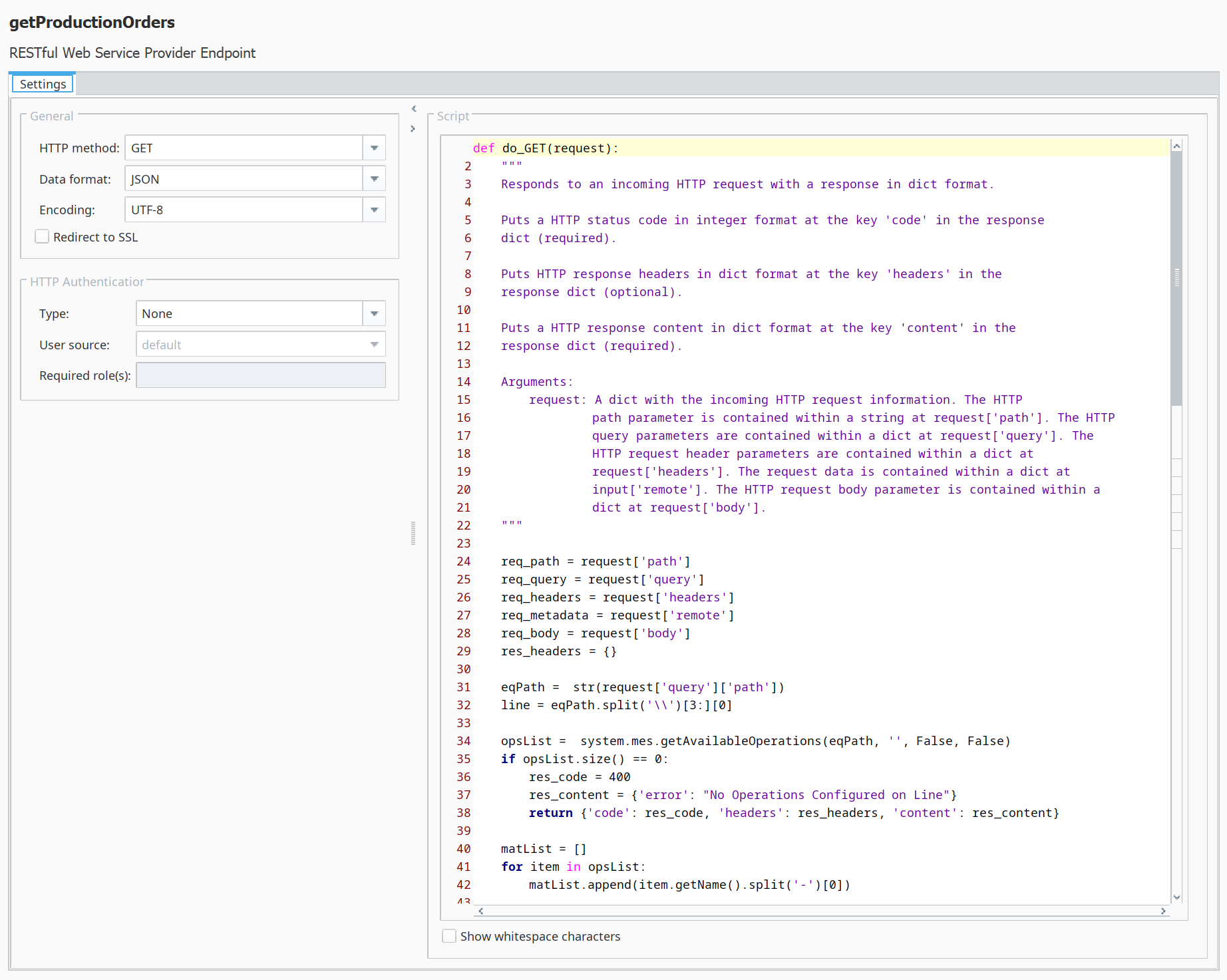

getProductionOrders RESTful Provider Endpoint

This is already built for you, but the code is provided below, for review.


RESTful Provider Response Message script

Copy Code
Python
req_path = request['path']
    req_query = request['query']
    req_headers = request['headers']
    req_metadata = request['remote']
    req_body = request['body']
    res_headers = {}

    eqPath =  str(request['query']['path'])
    line = eqPath.split('\\')[3:][0]

    opsList =  system.mes.getAvailableOperations(eqPath, '', False, False)
    if opsList.size() == 0:
        res_code = 400
        res_content = {'error': "No Operations Configured on Line"}
        return {'code': res_code, 'headers': res_headers, 'content': res_content}

    matList = []
    for item in opsList:
        matList.append(item.getName().split('-')[0])

    import random

    firstStart = system.date.addHours(system.date.now(), 4)
    firstEnd = system.date.addHours(firstStart, 1)
    secondStart = system.date.addMinutes(firstEnd, 5)
    secondEnd = system.date.addHours(secondStart, 2)



    #generating some wo numbers
    firstId = system.date.toMillis(system.date.now())
    secondId = firstId + 1

    res_content = {"Data":
      {
        "lines": [
          {
            "line": line,
                  "scheduled_items": [
                    {
                      "duration": 2.1171843383,
                      "end_dtm": firstEnd,
                      "id": system.date.toMillis(firstStart),
                      "item_type": "WORK_ORDER",
                      "newDuration": 0.0,
                      "overflow": False,
                      "related_data": [{
                        "ct_units": 0,
                        "id": firstId,
                        "item_code": random.choice(matList),
                        "item_desc1": "Product Description",
                        "item_desc2": "",
                        "item_net_weight": 0.0,
                        "item_size": random.random(),
                        "order_qty": 1200.0,
                        "remarks": "",
                        "routing_code": "Y901C721F8",
                        "site": "11",
                        "status_code": "C",
                        "type_code": "S"
                      }],
                      "sequence": 2,
                      "start_dtm": firstStart
                    },
                    {
                      "duration": 2.1171843383,
                      "end_dtm": secondEnd,
                      "id": system.date.toMillis(secondStart),
                      "item_type": "WORK_ORDER",
                      "newDuration": 0.0,
                      "overflow": False,
                      "related_data": [{
                        "ct_units": 0,
                        "id": secondId,
                        "item_code": random.choice(matList),
                        "item_desc1": "Great Product",
                        "item_desc2": "",
                        "item_net_weight": 0.0,
                        "item_size": 0.0,
                        "order_qty": 3600,
                        "remarks": "",
                        "routing_code": "Y901C721F8",
                        "site": "11",
                        "status_code": "C",
                        "type_code": "S"
                      }],
                      "sequence": 2,
                      "start_dtm": secondStart
                    }
                  ]
           }
        ]
      }
    }

    res_code = 200




    return {'code': res_code, 'headers': res_headers, 'content': res_content}

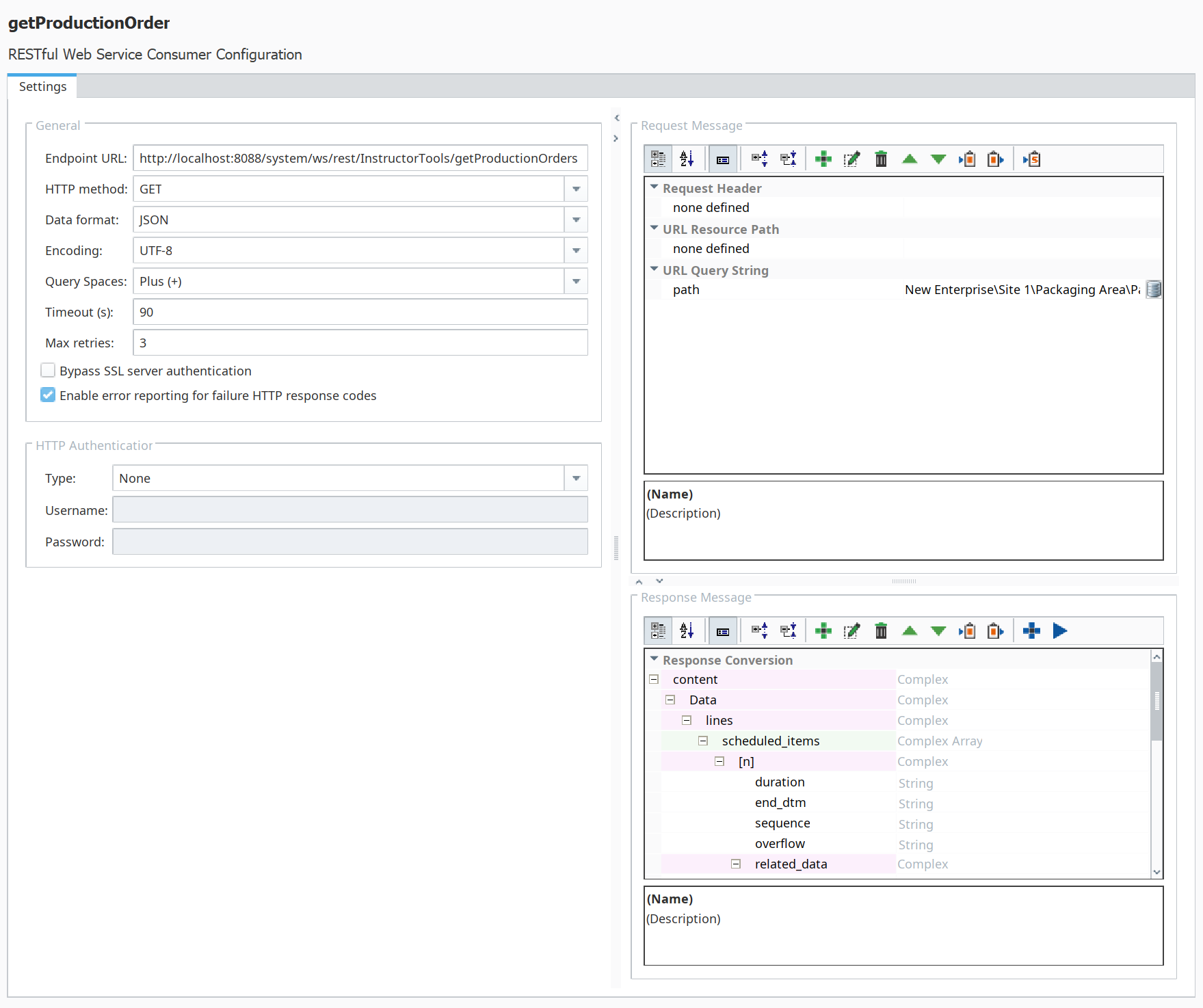

Configure getProductionOrder RESTful Consumer

  • Paste in the Endpoint URL:
    http://localhost:8088/system/ws/rest/InstructorTools/getProductionOrders

  • Create one URL Query String element named path as Data type = simple, Simple type = String. Set to the string value below:
    New Enterprise\Site 1\Packaging Area\Packaging Line 1

  • Create the Response Message by pressing  to populate the fields automatically.
