The Create Materials set-up on the window OEE_03_Scripting/01_Configuration has four main components:

  1. Four Buttons (Ignition)


Configure Buttons and Scripts

Reference:

  • custom functions: project.mesutils
  • Equipment Objects
  • system.mes.createMESObject
  • system.mes.saveMESObject
  • system.mes.loadMESObject

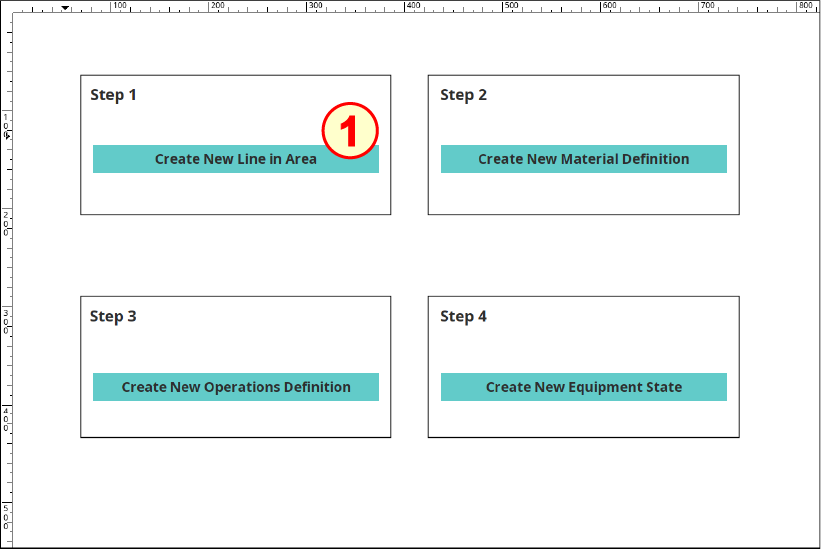

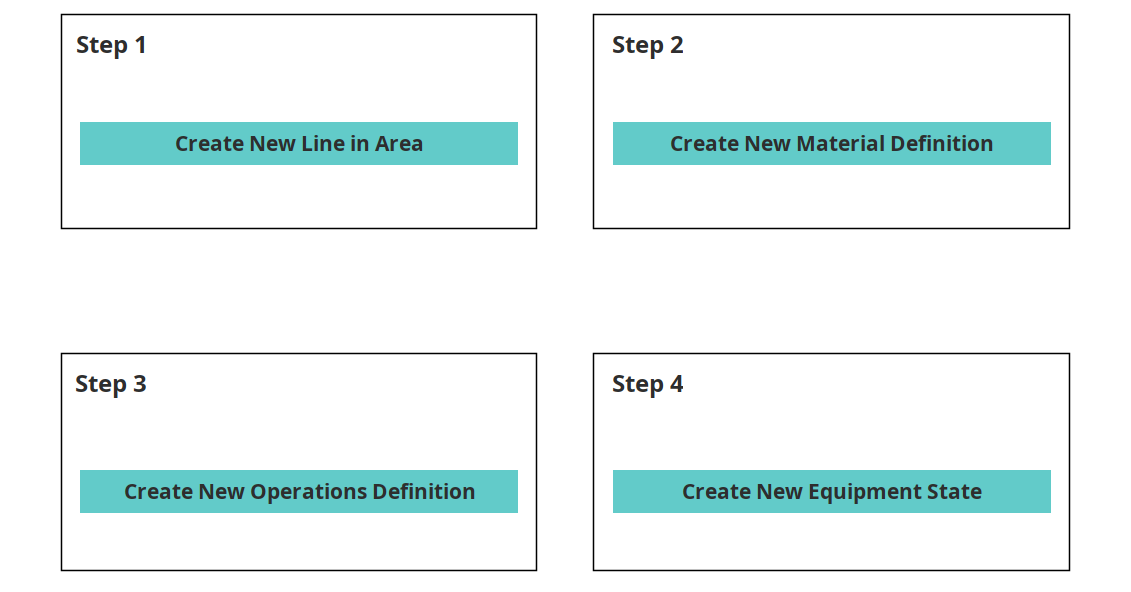

  • Drag four Ignition Buttons onto the rectangles on the window. Position each and resize as shown above.

  • (optional) Change each Button's Background Color property (this tutorial uses 98,203,201).

  • For each of the four Buttons, use the associated code block in the panels below to configure, as follows:
    • Change the Button's Text property to match the Button image.
    • Change the Name property to match the name provided.
    • Open the Component Scripting dialog box (Ctrl-J), select the actionPerformed event handler script area and paste in the associated script.


Button Name:  btn_createLine

Script for the actionPerformed event handler:

Copy Code
Python
##Create a new Equipment State in a given Equipment State Class
stateCls = system.mes.loadMESObject('Default', 'EquipmentStateClass')
state = system.mes.createMESObject('EquipmentState')
state.addParent(stateCls)
state.setPropertyValue('Name', 'Comm Card Fault')
state.setPropertyValue('EquipmentStateCode', 12)
state.setPropertyValue('EquipmentStateType', 'Unplanned Downtime')
#valid values for EquipmentStateType: "Running", "Idle", "Blocked", "Starved", "Planned Downtime", "Unplanned Downtime", "Disabled"
state.setPropertyValue('EquipmentStateOverride', 'Optional')
state.setPropertyValue('EquipmentStateOverrideScope', 'Detected Equipment State')
system.mes.saveMESObject(state)


Button Name:  btn_createMatDef

Script for the actionPerformed event handler:

Copy Code
Python
##Create a new Equipment State in a given Equipment State Class
stateCls = system.mes.loadMESObject('Default', 'EquipmentStateClass')
state = system.mes.createMESObject('EquipmentState')
state.addParent(stateCls)
state.setPropertyValue('Name', 'Comm Card Fault')
state.setPropertyValue('EquipmentStateCode', 12)
state.setPropertyValue('EquipmentStateType', 'Unplanned Downtime')
#valid values for EquipmentStateType: "Running", "Idle", "Blocked", "Starved", "Planned Downtime", "Unplanned Downtime", "Disabled"
state.setPropertyValue('EquipmentStateOverride', 'Optional')
state.setPropertyValue('EquipmentStateOverrideScope', 'Detected Equipment State')
system.mes.saveMESObject(state)


    Button Name:  btn_createOpDef

    Script for the actionPerformed event handler:

    Copy Code
    Code
    ##Create a new Equipment State in a given Equipment State Class
stateCls = system.mes.loadMESObject('Default', 'EquipmentStateClass')
state = system.mes.createMESObject('EquipmentState')
state.addParent(stateCls)
state.setPropertyValue('Name', 'Comm Card Fault')
state.setPropertyValue('EquipmentStateCode', 12)
state.setPropertyValue('EquipmentStateType', 'Unplanned Downtime')
#valid values for EquipmentStateType: "Running", "Idle", "Blocked", "Starved", "Planned Downtime", "Unplanned Downtime", "Disabled"
state.setPropertyValue('EquipmentStateOverride', 'Optional')
state.setPropertyValue('EquipmentStateOverrideScope', 'Detected Equipment State')
system.mes.saveMESObject(state)



      Button Name:  btn_createEqState

      Script for the actionPerformed event handler:

      Copy Code
      Python
      ##Create a new Equipment State in a given Equipment State Class
      stateCls = system.mes.loadMESObject('Default', 'EquipmentStateClass')
      state = system.mes.createMESObject('EquipmentState')
      state.addParent(stateCls)
      state.setPropertyValue('Name', 'Comm Card Fault')
      state.setPropertyValue('EquipmentStateCode', 12)
      state.setPropertyValue('EquipmentStateType', 'Unplanned Downtime')
      #valid values for EquipmentStateType: "Running", "Idle", "Blocked", "Starved", "Planned Downtime", "Unplanned Downtime", "Disabled"
      state.setPropertyValue('EquipmentStateOverride', 'Optional')
      state.setPropertyValue('EquipmentStateOverrideScope', 'Detected Equipment State')
      system.mes.saveMESObject(state)
