Dashboard Script

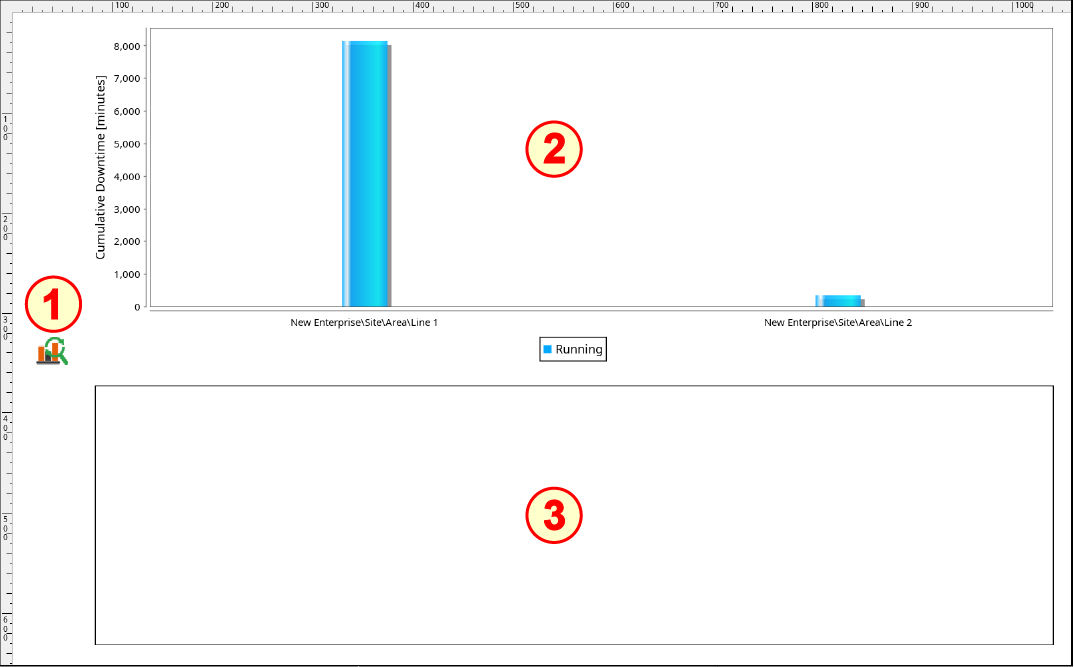

The Dashboard Script set-up on the window OEE_03_Scripting/04_Reporting has three main components:

  1. MES Analysis Controller
  2. Production Bar Chart
  3. Analysis Table



Configure the components as follows (they have already been placed on the window and named):


Configure MES Analysis Controller

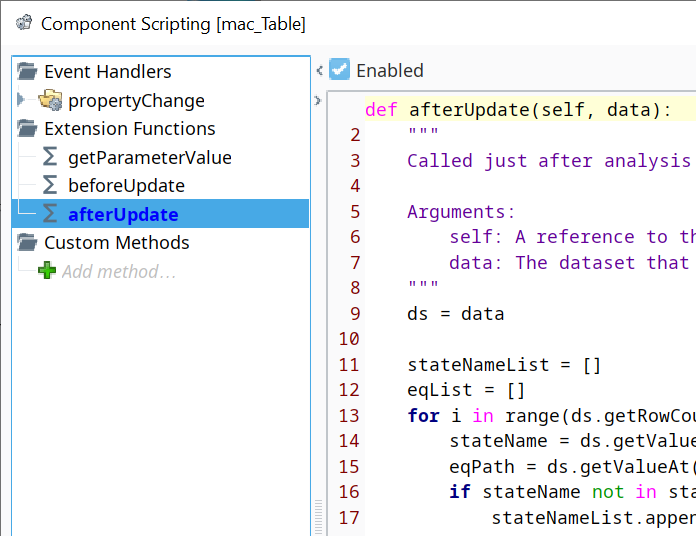

  • In the afterUpdate event handler script area, set the Enabled checkbox and paste in the following script (delete "return None"):

    Script for afterUpdate event handler

    Copy Code
    Code
    	timer = system.mes.monitor.start("BuildDashboardScript")
	ds = data

	stateNameList = []
	eqList = []
	for i in range(ds.getRowCount()):
		stateName = ds.getValueAt(i, 'Equipment State Name')
		eqPath = ds.getValueAt(i, 'Equipment Path')
		if stateName not in stateNameList:
			stateNameList.append(stateName)

		if eqPath not in eqList:
			eqList.append(eqPath)

	header = ['Equipment State Name'] + eqList
	finalDS = system.dataset.toDataSet(header, [['test']+[0.0]*len(eqList)])
	i = 0
	for i in range(ds.getRowCount()):
		newState = True
		stateName = ds.getValueAt(i, 'Equipment State Name')
		eqPath = ds.getValueAt(i, 'Equipment Path')
		val = ds.getValueAt(i, 'State Duration')
		for j in range(finalDS.getRowCount()):
			if stateName == finalDS.getValueAt(j, 'Equipment State Name'):
				newState = False
				finalDS = system.dataset.setValue(finalDS, j, eqPath, val)

		if newState == True:
			finalDS = system.dataset.addRow(finalDS, finalDS.getRowCount(), [stateName] + [0.0]*len(eqList))
			finalDS = system.dataset.setValue(finalDS, finalDS.getRowCount() - 1, eqPath, val)

	finalDS = system.dataset.deleteRow(finalDS, 0)
	self.parent.getComponent('Production Bar Chart').data = finalDS
	self.parent.getComponent('Analysis Table').data = ds

	timer.end()


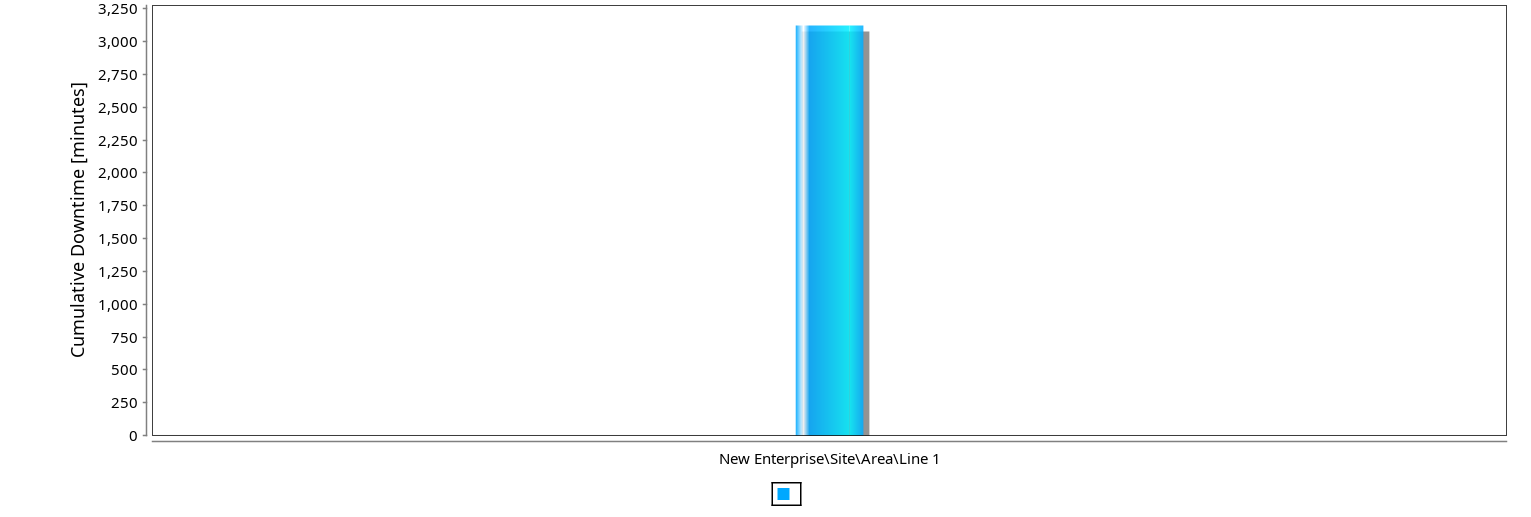

Configure Production Bar Chart

Data will be 'pushed' to the Production Bar Chart by the script in the MES Analysis Controller, so no configuration is required.

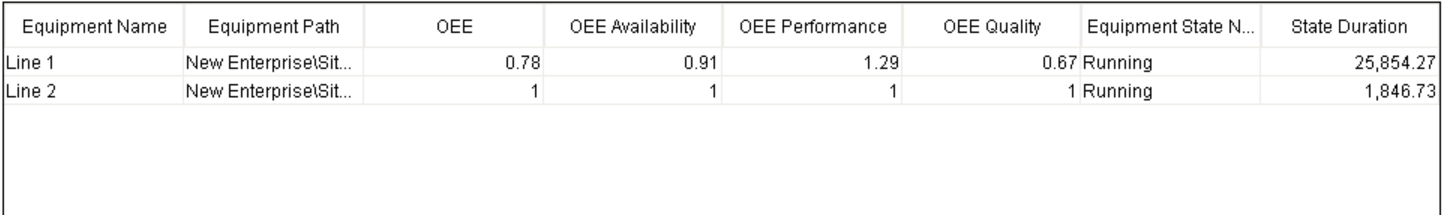

Configure Analysis Table

Data will be 'pushed' to the Analysis Table by the script in the MES Analysis Controller, so no configuration is required.
