SPC:GUI: Configure Manual Sample Collection

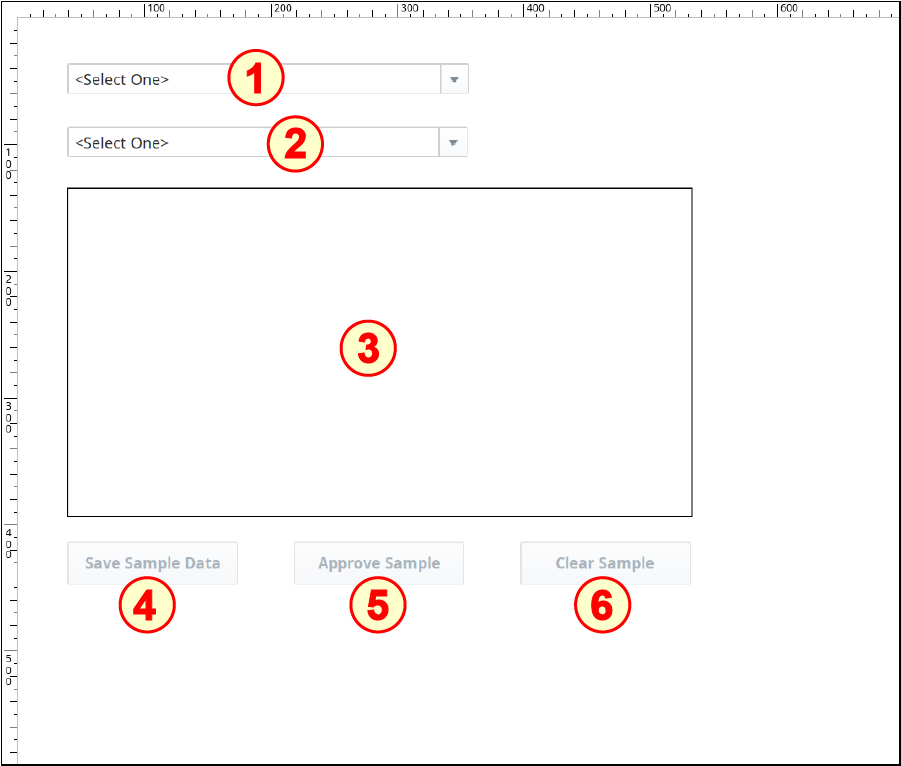

The Manual Sample Collection set-up on the window SPC_01_GUI/02_Production Control has six components:

1. Location Selector

2. Definition Selector

3. Sample Entry

4. Ignition Button to save sample data

5. Ignition Button to approve sample

6. Ignition Button to clear sample

Configure Location Selector

• Drag a Location Selector component onto the window. Position it near the top-left corner of the window and resize to approximately double its width, as shown above.


• No configuration is required.

Configure Definition Selector

• Drag a Definition Selector component onto the window. Position it under the Location Selector component and resize to approximately double its width, as shown above.


• Set up property binding: bind the Location Path property of the Definition Selector to the Selected Location Path property of the Location Selector.

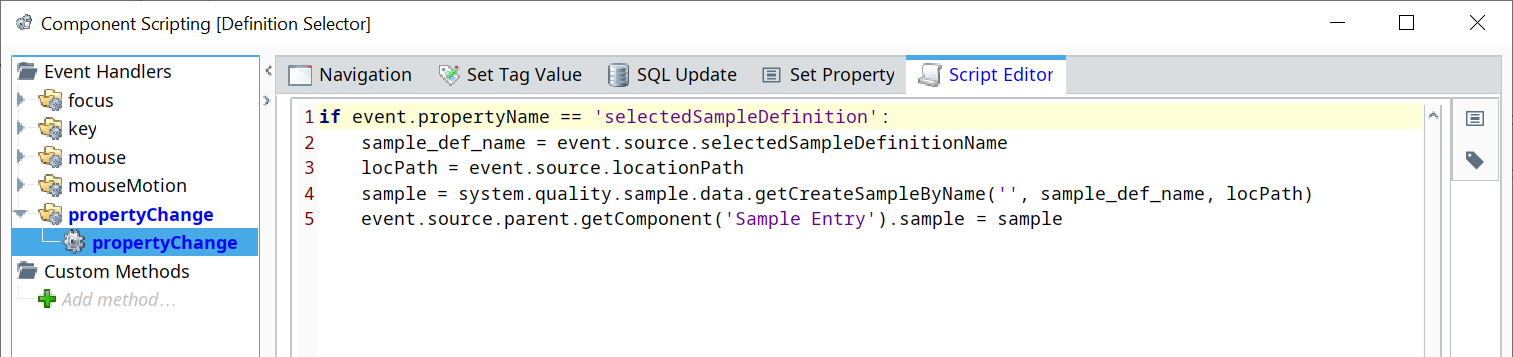

• Open the Component Scripting dialog box (Ctrl-J), select the propertyChange event handler script area and paste in the following script.

  Script for propertyChange event handler

  Copy Code Code

  if event.propertyName == 'selectedSampleDefinition': sampleDefName = event.source.selectedSampleDefinitionName locPath = event.source.locationPath sample = system.quality.sample.data.getCreateSampleByName('', sampleDefName, locPath) event.source.parent.getComponent('Sample Entry').sample = sample

Configure Sample Entry

• Drag a Sample Entry component onto the window. Position it under the Definition Selector component and resize as shown above.

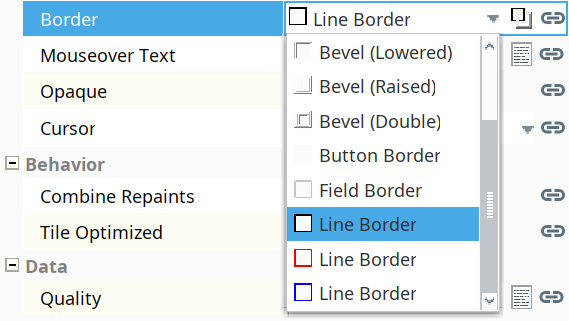

• (optional) Change the Line Border property (using the drop-down list) to the black Line Border choice:


Configure Save Sample Data Button

• Drag three Ignition Button components onto the window. Position and resize all three buttons under the Sample Entry component, as shown above.

• Rename the left button to btn_SaveSample.

• Change the left button's Text property to Save Sample Data.

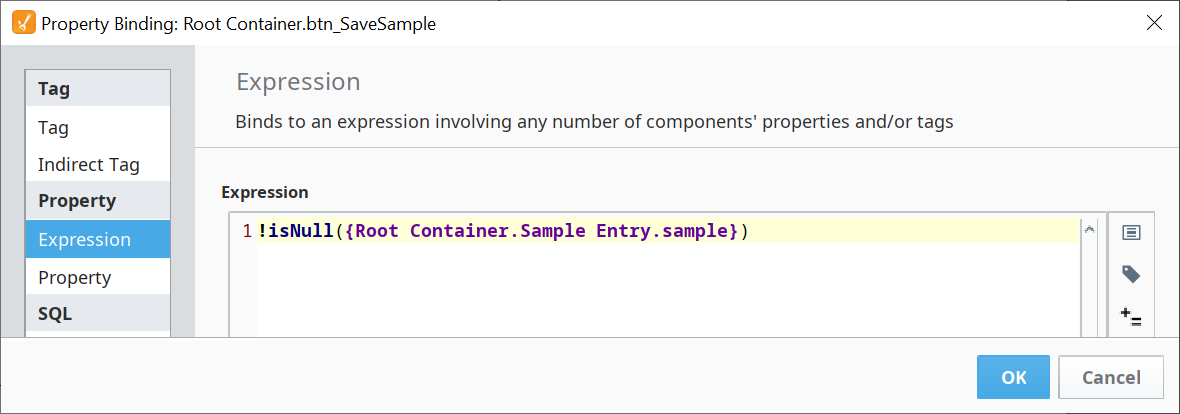

• Bind the Enabled property to the expression:

  Expression for Save Sample Data Button

  Copy Code Code

  !isNull({Root Container.Sample Entry.sample})

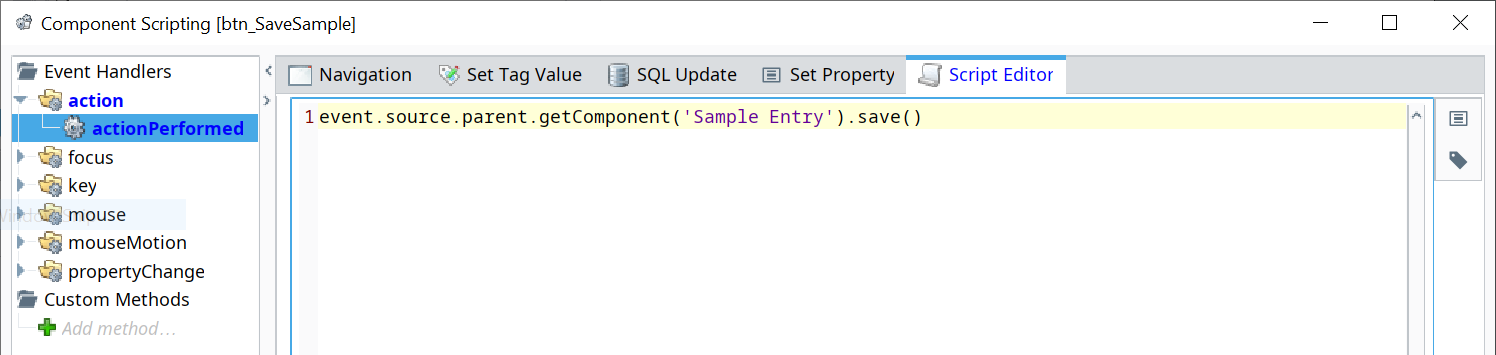

• Open the Component Scripting dialog box (Ctrl-J), select the actionPerformed event script area and paste in the following script.


  Script for Save Sample Data Button

  Copy Code Code

  event.source.parent.getComponent('Sample Entry').save()

Configure Approve Sample Button

• Rename the middle button to btn_ApproveSample.


• Change the middle button's Text property to Approve Sample.

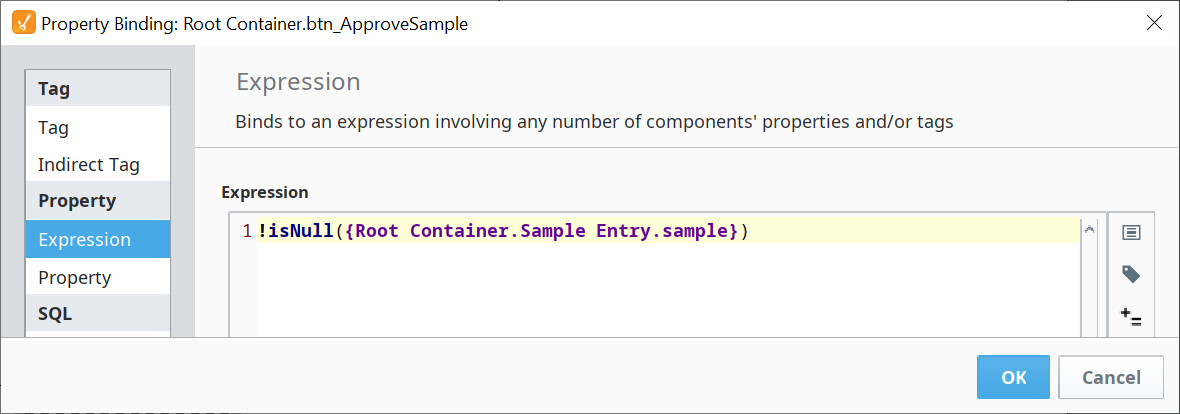

• Bind the Enabled property to the expression:

  Expression for Approve Sample Button

  Copy Code Code

  !isNull({Root Container.Sample Entry.sample})

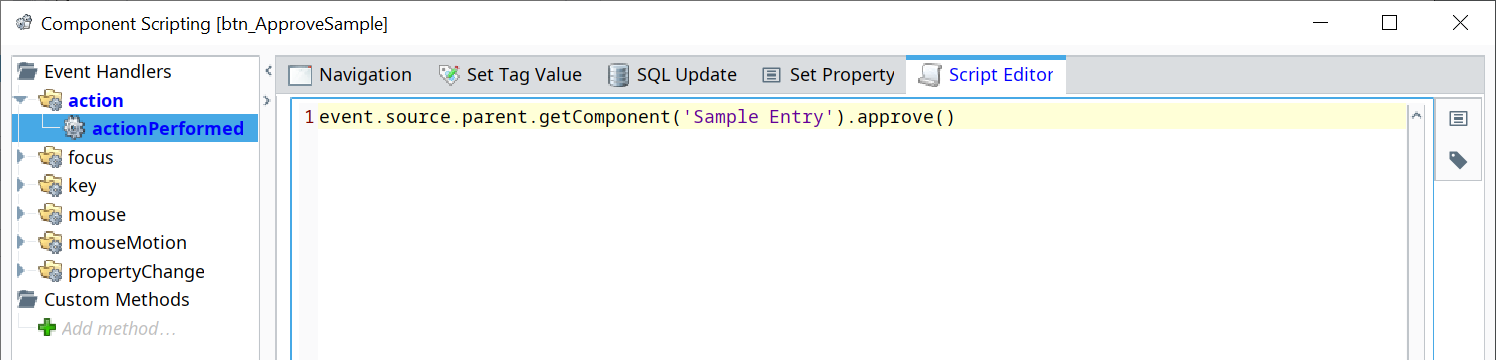

• Open the Component Scripting dialog box (Ctrl-J), select the actionPerformed event script area and paste in the following script.


  Script for Approve Sample Button

  Copy Code Code

  event.source.parent.getComponent('Sample Entry').approve()

Configure Clear Sample Button

• Rename the right button to btn_ClearSample.

• Change the right button's Text property to Clear Sample.


• Bind the Enabled property to the expression:

  Expression for Clear Sample Button

  Copy Code Code

  !isNull({Root Container.Sample Entry.sample})

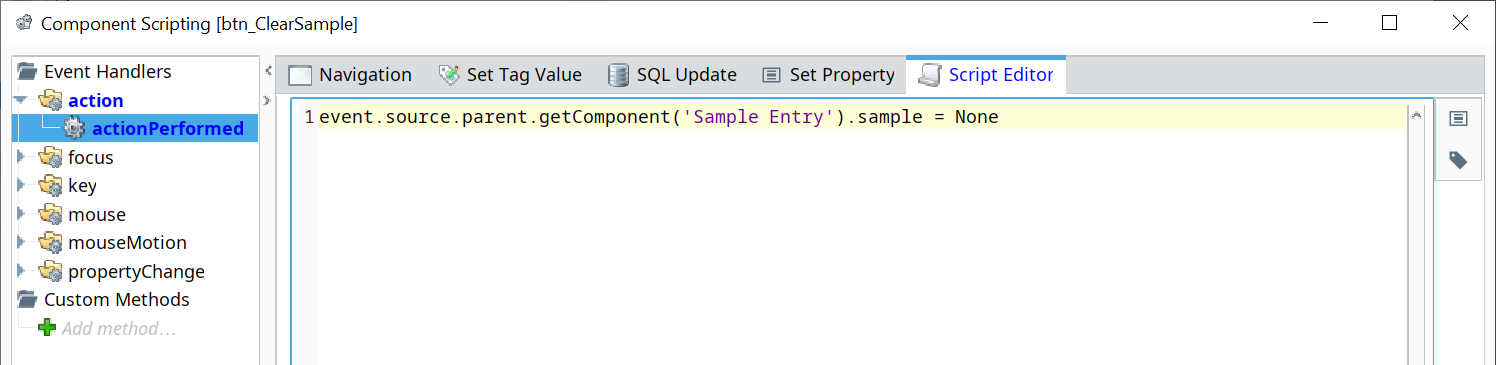

• Open the Component Scripting dialog box (Ctrl-J), select the actionPerformed event script area and paste in the following script.


  Script for Clear Sample Button

  Copy Code Code

  event.source.parent.getComponent('Sample Entry').sample = None

Next
