SPC:Perspective:GUI:Configure SPC Report

Configure SPC Report

Components on SPC Report screen:​

Area 1: DateTime Input

Area 2: DateTime Input

Area 3: SPC Analysis Selector

Area 4: Ignition Report Viewer

• Create a new View called SPC_01_GUI/SPC Report and create page url for later use.
  • Drag Ignition DateTime Input component to view and rename as startDate.


  • Drag Ignition DateTime Input component to view and rename as endDate.


  • Drag SPC Analysis Selector to view.
  • Bind property spcChartSettings.startDate to startDate dateTime component value property.
  • Bind property spcChartSettings.endDate to endDate dateTime component value property.


  • Drag Ignition Report Viewer to view.
  • Select premade report "SPC Report 1"

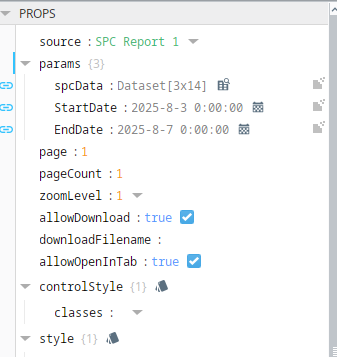

  • Create and bind three parameters
  • spcData
  • Bind to SPC Analysis Selector props.spcChartSettings.spcData

• StartDate
• Ignition DateTime startDate component props.value


• EndDate
• Ignition DateTime endDate component props.value
