Add New Enterprise Server and New Site Server with Existing Stand Alone Gateway

The steps below set up a new enterprise-root server and uses the export of an existing site server to create a new site server. The Production Equipment Model is at use at the Site Server and no Enterprise root node in the equipment model.

Install Ignition and Sepasoft Modules on Enterprise Server and Site Server

Before following these steps, see Preparing before Configuring MES Enterprise Network

On the Enterprise Server:

• Install Ignition.
• Install Sepasoft MES Modules.

On the Site Server:

• Install Ignition.
• Install Sepasoft Modules.

Install the same version of the Sepasoft MES Modules on the servers.

Apply Licenses

To apply licenses on the Enterprise and Site Servers:

• In Ignition 8.3.x, go to Ignition Gateway > Platform > System > Licensing. click Activate License. Enter license.
• In Ignition 8.1.x, go to Ignition Gateway > Config > Licensing, click Activate License. Enter license.

Assigning licenses to equipment is done after the servers are connected.

Export Production Equipment Model from Stand Alone Gateway Server

• On the stand alone server Ignition Gateway Server, go to the Config tab > MES Modules > Enterprise Import/Export.

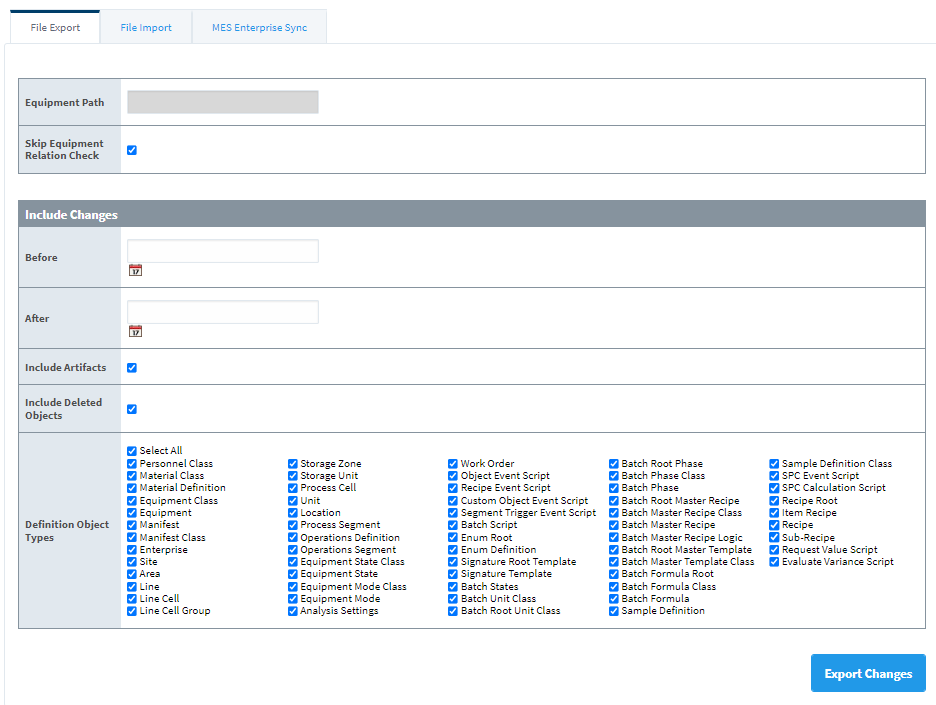

• On the File Export tab, click Skip Equipment Relation Check.

• Click Export Changes.

If the top-level node of the production equipment model is named differently e.g., New Enterprise vs. Enterprise, you can change this after importing the model into the new Site server.

Import Enterprise Changelog into New Site Gateway

• On the new Site server Ignition Gateway Server, go to the Config tab > MES Modules > Enterprise Import/Export.

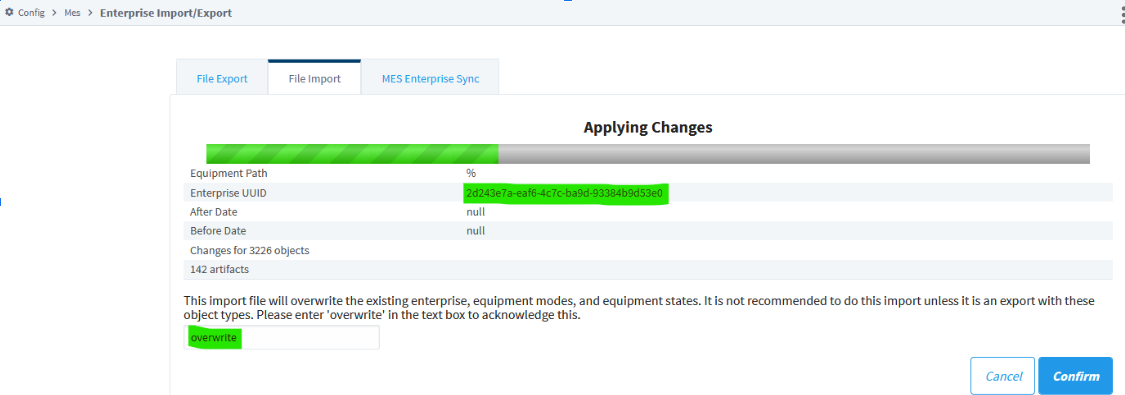

• On the File Import tab, click Choose File and navigate the export file.
• Click Import Changes.

• Wait for a success message.

Restart Production Module on New Site Server

• In the Ignition Gateway, go to the Config tab > Modules.
• Under the Sepasoft modules > Production, click Restart.

Rename New Enterprise to Enterprise

This may not be required if the names match when exporting the production equipment model.

• On the Enterprise root server, open Ignition Designer and in Equipment Manager, rename 'New Enterprise' to 'Enterprise'.

Connect Site Server to Enterprise

To connect the site gateway to the enterprise:

• Go the Ignition Gateway:
  • In Ignition 8.3 Gateway > Network > Gateway Network > Outgoing Connections.

  • In Ignition 8.1 Gateway > Config > Networking > Gateway Network Settings, click Outgoing Connections.
• Click Create new Outgoing Gateway Connection...
• Enter the Host and Port.

Accept Incoming Site Server Connection on Enterprise

To accept the incoming connection:

• Go the Ignition Gateway:
  • In Ignition 8.3 Gateway > Network > Gateway Network > Outgoing Connections.

  • In Ignition 8.1 Gateway > Config > Networking > Gateway Network Settings, click Incoming Connections.
• Approve the connection.

Set Server as Enterprise Root

On the Enterprise Server:

• Go to the Config tab > MES Modules > Enterprise Settings and check the Enterprise Root checkbox.
• Click Save Changes.

Set Parent Gateway Server

On the Site Server:

Clicking Save Changes begins the synchronization process. It is highly recommended to remove any equipment not intended to be added, before clicking save.

• Go to the Config tab > MES Modules > Enterprise Settings.
• In the Parent Gateway field, select the Enterprise server.
• Under Equipment, enter the Site server's equipment path with a back-slash. For example: Site 1\Area 1. To understand this path, see Production Equipment Model.
• Click Add Equipment. Do this for all equipment to be managed by the Enterprise.
• Click Save Changes.

Syncing starts. A message displays the Source Server, Equipment item path and child path count.

To verify the connections, go to MES Monitor. See Network MES Metrics for reference.

Verify Licenses

In Equipment Manager, verify licenses for the Site.

Validation Testing

Verify the installed modules are functioning.
