Equipment Allocation in Batch

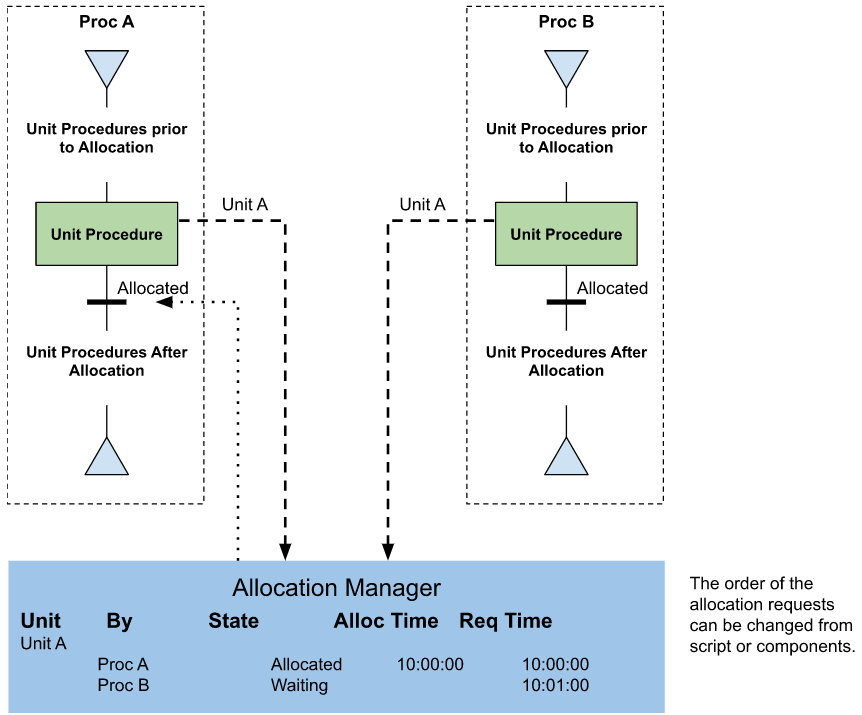

The Allocation Manager is a backend manager that handles multiple Batch Recipes requesting specific Units within Unit Class.
You need to understand the Batch Recipe structure to understand the following points.
- Units are automatically allocated as they become active by a Procedure (top level of a Batch Recipe).
- Once the Unit Procedure has completed, then the allocation is freed and the next allocation request in queue is granted an allocation.
- Allocate by the next available Unit that belongs to a specified Unit Class.
- Specify the Unit with Allocate and Deallocate Phases
| Allocate Input Parameters | |
|---|---|
| Shared Unit Path | Optional - the unit can be determined by capabilities or you can set a unit path |
| If Unit is not available, wait. | |
| Allocate States |
|---|
| Waiting |
| Allocated |
