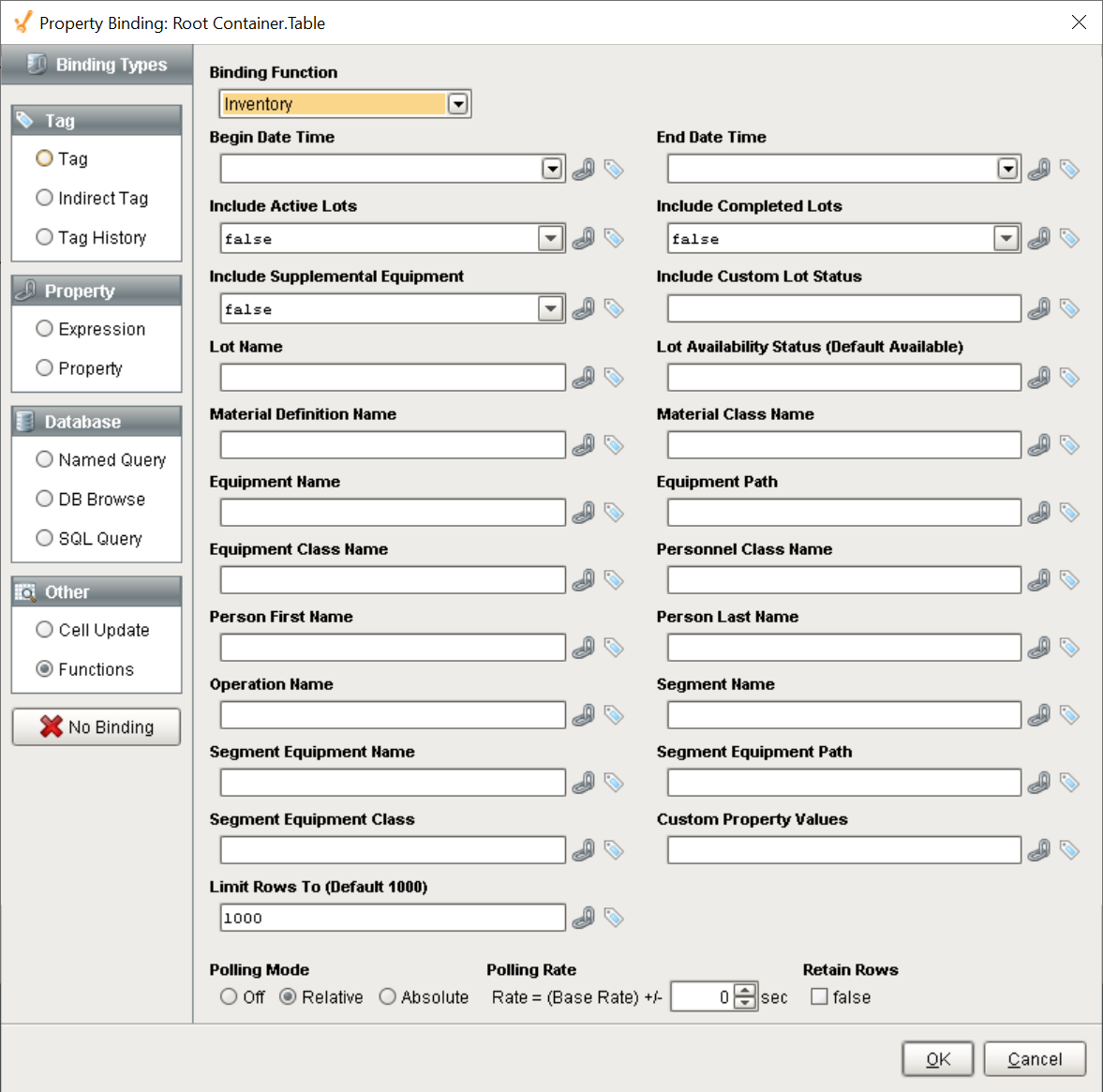

Binding Function | Inventory
The Inventory binding function is used to retrieve inventory information based on the filter parameters.
|
The Inventory binding function has effectively been replaced by the Equipment WIP binding function. |
Parameters
| Name | Description | Property Type |
|---|---|---|
| Begin Date Time | When the Include Inactive Lots parameter is set to True, the results are limited to only include results that were processed at or after this property. | Calendar (See https://docs.oracle.com/javase/7/docs/api/java/util/Calendar.html) |
| End Date Time | When the Include Inactive Lots parameter is set to True, the results are limited to only include results that were processed at or before this property. | Calendar (See https://docs.oracle.com/javase/7/docs/api/java/util/Calendar.html) |
Include Active Lots | If true, include active MES Material Lots or MES Material Sublots. Active items are those currently being processed. | Boolean |
Include Completed Lots | If true, include completed MES Material Lots or MES Material Sublots. | Boolean |
| Include Supplemental Equipment | When set to TRUE, Supplemental Equipment with the matching Equipment Path will be included in the filter results. Defaults to FALSE. | Boolean |
| Include Custom Lot Status | If the Final Lot Status setting of a material resource is set, then it can be filtered using this property. For example, MES Material Lot or MES Material Sublot objects can be set to Hold or any other value and then can be filtered here. It can contain wildcard characters including * or ?. The * character can be any characters and the ? character represents any single character. | String |
| Lot Name | The lot name to return the trace details. Optionally Lot UUID can be used but not both. | |
| Lot Availability Status (Default Available) | The availability of the lots can be filtered using this property. Options Available - The material lots that are currently available. Used - The material lots that are being used. Both - Results will contain both available and the used lots. | String |
| Material Definition Name | The results can be limited to only include lots or sublots that the associated material matches this property. It can contain wildcard characters including * or ?. The * character can be any characters and the ? character represents any single character. Only one of the Material Class Name, Material Class UUID, Material Definition Name, Material Definition UUID properties can be specified at a time. Example: *Balsamic* | String |
| Material Class Name | The results can be limited to only include lots or sublots that the associated material is included in a material class that matches this property. It can contain wildcard characters including * or ?. The * character can be any characters and the ? character represents any single character. Only one of the Material Class Name, Material Class UUID, Material Definition Name, Material Definition UUID properties can be specified at a time. Example: Vinegar | String |
| Equipment Name | The results can be limited to only include lots or sublots that are or were stored at the equipment that are included in a equipment class that match this property. It can contain wildcard characters including * or ?. The * character can be any characters and the ? character represents any single character. Only one of the EquipmentName, EquipmentUUID, or Equipment Path properties can be specified at a time. Example: Vinegar Tank 1 | String |
| Equipment Path | The results can be limited to only include lots or sublots that are or were stored at the equipment that match this property. See Equipment for more information on equipment paths Only one of the Equipment Class Name, Equipment Class UUID, Equipment Path or Equipment UUID properties can be specified at a time. Example: My Enterprise\California\Storage\Vinegar Tanks\Vinegar Tank 1 | String |
| Equipment Class Name | The results can be limited to only include lots or sublots that are or were stored at the equipment that are included in an equipment class that match this property. It can contain wildcard characters including * or ?. The * character can be any characters and the ? character represents any single character. Only one of the Equipment Class Name, Equipment Class UUID, Equipment Path or Equipment UUID properties can be specified at a time. Example: Vinegar Storage Tanks | String |
| Personnel Class Name | The results can be limited to only include lots or sublots that are or were handled by personnel that are included in a personnel class that match this property. It can contain wildcard characters including * or ?. The * character can be any characters and the ? character represents any single character. Only one of the Personnel Class Name, Personnel Class UUID or Person First Name and Person Last Name combination properties can be specified at a time. Example: Unload Operator | String |
| Person First Name | The results can be limited to only include lots or sublots that are or were handled by personnel that match this property. It can contain wildcard characters including * or ?. The * character can be any characters and the ? character represents any single character. | String |
| Person Last Name | The results can be limited to only include lots or sublots that are or were handled by personnel that match this property. It can contain wildcard characters including * or ?. The * character can be any characters and the ? character represents any single character. | String |
| Operation Name | The results can be limited to only include lots or sublots that performs the operation that match this property. It can contain wildcard characters including * or ?. The * character can be any characters and the ? character represents any single character. Example: Unload Vinegar | String |
| Segment Name | The results can be limited to only include lots or sublots that are handled by segment that match this property. It can contain wildcard characters including * or ?. The * character can be any characters and the ? character represents any single character. Example: Unload Balsamic Vinegar | String |
| Segment Equipment Name | The results can be limited to only include lots or sublots that are handled by equipment that matches this property. It can contain wildcard characters including * or ?. The * character can be any characters and the ? character represents any single character. Only one of the Segment Equipment Class Name properties can be specified at a time. Example: Bottling Line 1 | String |
| Segment Equipment Path | The results can be limited to only include lots or sublots that are or were stored at the segment equipment that matches this property. It can contain wildcard characters including * or ?. The * character can be any characters and the ? character represents any single character. Only one of the Segment Equipment Class Name properties can be specified at a time. Example: Dressings Inc\California\Bottling\Bottling Line 1 | String |
| Segment Equipment Class | The results can be limited to only include lots that were processed at the equipment that belong to the segment equipment class that matches this property. It can contain wildcard characters including * or ?. The * character can be any characters and the ? character represents any single character. Only one of the Segment Equipment Class Name properties can be specified at a time. Example: Bottling | String |
| Custom Property Values | The results can be limited to only include items that have a custom property expressions defined by this property that evaluates to true. Example: Kind > 3 | PyDictionary |
| Limit Rows To (Default 1000) | The maximum number of samples to return in the results. | Integer |
Table Columns
| Column | Description | Data Type |
|---|---|---|
| MESMaterialLotUUID | Unique identifier for the material lot | String |
| Lot | Number assigned to the material lot | String |
| LotSequence | The sequence property is incremented every time a new Material Lot is created for a given lot number. If it is less than zero, then the lot holding the maximum value is returned and if the same lot number is used for multiple segments, each lot with the same lot number will be assigned a different lot sequence number. | Integer |
| LotDescription | Description for the material lot | String |
| LotStatus | The status of the Material Lot. It can be either Active or Complete. When active, there is a response segment to create this material lot that is currently running | String |
| LotUnits | Units for the quantity setting | String |
| LotAssemblyType | Type of lot assembly | String |
| LotBeginDateTime | Date and time that this lot resource started | Date |
| LotEndDateTime | Date and time that this lot resource ended | Date |
| LotQuantity | Quantity of a specific item corresponding to the material lot | Double |
| LotPropertyStatus | When Active, there is a response material that has a material reference complex property linked to this material lot that is Active. | String |
| MaterialUUID | Unique identifier for each material object | String |
| MaterialName | Name of the material object | String |
| MaterialDescription | Description for material object | String |
| LotLocationName | Name of location | String |
| LotLocationPath | Path for location | String |
| LotLocationDescription | Description of location | String |
