In a factory environment, materials are often transported in bulk (e.g., by truck) between manufacturing sites. The Sepasoft Track & Trace module provides the idea of Manifests to accomplish this in the system.

Material Lots are represented in bulk between Ignition Gateways using a Manifest Object to 'hold' materials that are reassigned to another Ignition Gateway. This movement of material can occur among any gateway in an Enterprise Network.

Unlike a piece of Supplemental Equipment, which can be refilled again and again, a Manifest Object is intended to be created, and used to 'transport' Material Lot objects to another gateway one time, and then be discarded (automatically becomes disabled after use).

There are two associated Object Types in the Manifest Objects group, Manifest Class and Manifest.

All of these objects inherit the AbstractMESObject properties and methods.

Object Versions

Every time a Manifest or ManifestClass Object is modified, i.e. adding custom properties, changing a setting etc., the version number of that equipment object is updated in the background. When an operation is scheduled, it checks for a corresponding Response Object version. If one does not exist, it automatically creates a new Response object.

This versioning is not part of ISA-95, however, without it, analysis of historical data would lose the original configuration of equipment, personnel and materials.

ResponseManifest and ResponseManifestClass objects are automatically created by operations and are used for traceability analysis.

Important to differentiate between Response Objects and Response Segments

Although these are called Response Objects, they are in fact Version objects of the Manifest Objects. They are not Response Segment objects as defined by ISA-95.

Manifest Class and ResponseManifestClass Objects

This object is used to group Manifest Objects into a category. It can have Manifest or other ManifestClass objects as children. This Class object is convenient for categorizing Manifests by content type or usage

This object inherits the AbstractMESObject properties and methods, but does not extend them.

Manifest and ResponseManifest Objects

The Manifest Object cannot have children assigned. After being loaded with Material Lots, they are considered single-use 'transport' devices to move materials to storage locations on another gateway (usually another factory Site). This object is not intended for 'transporting' materials to storage locations within the same gateway (Site).


Object Creation

Manifests and Manifest Classes are created using the MES Object Editor component, or via scripting using the following function:

Creating Manifest Objects via Scripting Example

Copy Code
Python
#Create a Manifest Class
manifestClass = system.mes.createMESObject('ManifestClass')
manifestClass.setPropertyValue('Name', 'My Scripted Manifest Class')
system.mes.saveMESObject(manifestClass)

#Create a Manifest
manifest = system.mes.createMESObject('Manifest')
manifest.setPropertyValue('Name', 'My Scripted Manifest')
system.mes.saveMESObject(manifest)

#Add the Manifest as a child of the Manifest Class
man = system.mes.loadMESObject('My Scripted Manifest', 'Manifest')
manClass = system.mes.loadMESObject('My Scripted Manifest Class', 'ManifestClass')
manClass.addChild(man)
system.mes.saveMESObject(manClass)

#Alternative: Add the Manifest Class as a parent of the Manifest
#man.addParent(manClass)
#system.mes.saveMESObject(man)

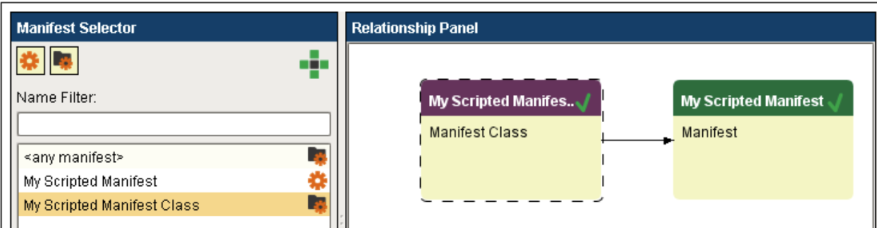

Displays in the MES Object Editor:


Object Properties

This object inherits the AbstractMESObject properties.

Object Functions


 getAllLots()

Description

Get the MESMaterialLot objects for all Material Lots in the Manifest.

Syntax

getAllLots()


  • Parameters

None

  • Returns

Collection<MESMaterialLot> result - A list of all Material Lots in the Manifest.

  • Scope

All

Code Examples
Code Snippet
Copy Code
Python
#Fetch the MESMaterialLot objects for all of the Material Lots in the Manifest
manifest_name = event.source.parent.getComponent('Manifest Selector').selectedName
manifest = system.mes.loadMESObject(manifest_name, "Manifest")
print manifest.getAllLots()

Output
[MaterialLot (5fcb36e8-6543-43e7-a67f-91be9f5bd899, Site 1-0000000001, 0 parents, 0 children, 0 custom properties, 1 complex properties, artifacts not loaded), MaterialLot (3cf476c5-c2cc-4ce0-8337-309653e8a905, Site 1-0000000002, 0 parents, 0 children, 0 custom properties, 1 complex properties, artifacts not loaded), MaterialLot (0ab31b25-7ee2-400f-8dea-8b3154b1be23, Site 1-0000000004, 0 parents, 0 children, 0 custom properties, 1 complex properties, artifacts not loaded), MaterialLot (15b62cdf-2c74-406e-85c7-ea5ee0ad799b, Site 2-0000000003, 0 parents, 0 children, 0 custom properties, 1 complex properties, artifacts not loaded), MaterialLot (a7e365b0-ca42-44c6-8572-037cfe261dc3, Site 2-0000000005, 0 parents, 0 children, 0 custom properties, 1 complex properties, artifacts not loaded), MaterialLot (90194033-ffae-43d2-ab73-6d37ba5e24a9, Site 2-0000000006, 0 parents, 0 children, 0 custom properties, 1 complex properties, artifacts not loaded)]


getAvailableLots()

Description

Get the MESMaterialLot objects for all available Material Lots in the Manifest.

Syntax

getAvailableLots()

  • Parameters

None

  • Returns

Collection<MESMaterialLot> result - A list of all available Material Lots in the Manifest.

  • Scope

All

Code Examples
Code Snippet
Copy Code
Python
#Fetch the MESMaterialLot objects for all of the available Material Lots in the Manifest
manifest_name = event.source.parent.getComponent('Manifest Selector').selectedName
manifest = system.mes.loadMESObject(manifest_name, "Manifest")
print manifest.getAvailableLots()

Output
[MaterialLot (b3fb0d63-6ac9-4a20-9ec9-2b4d7bc9c307, Site 1-0000000002, 0 parents, 0 children, 0 custom properties, 1 complex properties, 0 artifacts), MaterialLot (406019ec-799c-4fb1-a754-de904048e3a2, Site 1-0000000004, 0 parents, 0 children, 0 custom properties, 1 complex properties, artifacts not loaded), MaterialLot (a7e365b0-ca42-44c6-8572-037cfe261dc3, Site 2-0000000005, 0 parents, 0 children, 0 custom properties, 1 complex properties, artifacts not loaded)]


getLotLinks(availableLotsOnly)

Description

Get MESObjectLinks for all (or all available) Material Lots in this Manifest.

Syntax

getLotLinks(availableLotsOnly)

  • Parameters

Boolean availableLotsOnly — Limits results to available Material Lots only, when True. Must supply either True or False.

  • Returns

Collection<MESObjectLink> result - A list of MESObjectLinks for all (or all available) Material Lots in the Manifest.

  • Scope

All

Code Examples
Code Snippet
Copy Code
Python
#Fetch MESObjectLinks for all Material Lots in the Manifest selected in the
#  MES Object Selector "Manifest Selector".
#Note: If availableLotsOnly = 'True', then only available Material Lots would be included.
manifest_name = event.source.parent.getComponent('Manifest Selector').selectedName
manifest = system.mes.loadMESObject(manifest_name, "Manifest")
print "Lot Links of Manifest = ", manifest.getLotLinks(False)

Output
Lot Links of Manifest =  Size 6


getManifestLocation()

Description

Gets the Equipment Path for where the Manifest is located.

Syntax

getManifestLocation()

  • Parameters

None

  • Returns

String manifestPath — The Equipment Path where the Manifest is located.

  • Scope

All

Code Examples
Code Snippet
Copy Code
Python
#Fetch the location (Equipment Path) of the Manifest
manifest_name = event.source.parent.getComponent('Manifest Selector').selectedName
manifest = system.mes.loadMESObject(manifest_name, "Manifest")
print "Manifest is located at:", manifest.getManifestLocation()

Output
Manifest is located at: WidgetsInc\Site 2


getManifestState()

Description

Returns the state of the Manifest (either "AVAILABLE" or "USED"). When all Material Lots have been unloaded from a Manifest, the state turns to "USED" and the Manifest Object is set to disabled.

Syntax

getManifestState()

  • Parameters

None

  • Returns

String manifestState — The state of the Manifest Object (either "AVAILABLE" or "USED").

  • Scope

All

Code Examples
Code Snippet
Copy Code
Python
#Fetch state of the Manifest selected in the MES Object Selector "Manifest Selector"
manifest_name = event.source.parent.getComponent('Manifest Selector').selectedName
manifest = system.mes.loadMESObject(manifest_name, "Manifest")
print "State of selected Manifest = ", manifest.getManifestState()

Output
State of selected Manifest = AVAILABLE


setManifestState(manifestState)

Description

Sets the state of the Manifest to either "AVAILABLE" or "USED".

Syntax

setManifestState(manifestState)

  • Parameters

String manifestState — The state to apply to the Manifest. Choices are "AVAILABLE" and "USED".

  • Returns

Nothing

  • Scope

All

Code Examples
Code Snippet
Copy Code
Python
#Set the state of the Manifest selected in the MES Object Selector "Manifest Selector" to "USED"
manifest_name = event.source.parent.getComponent('Manifest Selector').selectedName
manifest = system.mes.loadMESObject(manifest_name, "Manifest")
manifest setManifestState('Used')
print "State of selected Manifest = ", manifest.getManifestState()

Output
State of selected Manifest = USED


transfer(destinationPath)

Description

The Manifest (with all on-board Material Lots) will be removed from the current Site (source gateway) and added to the destination Site (destination gateway).

Syntax

transfer(destinationPath)

  • Parameters

String destinationPath — equipment path to the destination Site on another gateway (e.g. "WidgetsInc\Site 1")

  • Returns

Nothing

  • Scope

All

Code Examples
Code Snippet
Copy Code
Python
#Transfers a Manifest (with its payload of Material Lots) from a Site on one gateway
#  to a Site on another gateway. This example gets the Manifest Name from an
#  MES Object Selector component ('Manifest Selector') that is set to MES Object type 'Manifest'.
site_path = event.source.parent.getComponent('Site Path Field').text
manifest_name = event.source.parent.getComponent('Manifest Selector').selectedName
manifest = system.mes.loadMESObject(manifest_name, "Manifest")

#Transfer the Manifest to the Site on the destination gateway.
manifest.transfer(site_path)
system.mes.saveMESObject(manifest)

This object also inherits the AbstractMESObject functions.

Object Events

This object inherits the AbstractMESObject events.
