MES Equipment State Object

Equipment states allow raw equipment status coming from a PLC to maintain its finite state machine. You can analyze cycle time and more. Grouping equipment states coming from the PLC status, such as Loading, Heating, Purging, etc., can be considered as Running in a system using OEE.

Derived from the AbstractMESObject inheriting all properties, functions and events.

No components use this object directly.

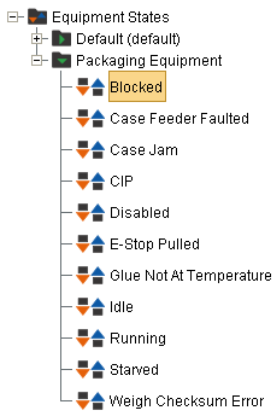

See Below:

Default State Types


  • IDLE
  • STARVED
  • RUNNING
  • BLOCKED
  • DISABLED
  • DOWN PLANNED
  • DOWN UNPLANNED

New equipment state classes can be created using the MES Equipment Manager Vision and MES Equipment Manager | Perspective components.

MES Equipment State Object Creation

No scripting functions or components use this object directly.

Equipment states can also be created through scripting.

Create via Scripting

  • Load the Equipment State Class object.
  • Create a new Equipment State object.
  • Assign the Equipment State as the child of the Equipment State Class.
  • Give the Equipment State a name and setting other required properties like EquipmentStateCode, EquipmentStateType, etc.
  • Save the Equipment State object and Equipment State Class object.

Copy Code
Python
stateCls = system.mes.loadMESObject('YourStateClass','EquipmentStateClass')
#insert the name of your State Class here
name = 'YourStateName'
code = 12 #this is the state code provided by your PLC
state = system.mes.createMESObject('EquipmentState')
stateCls.addChild(state)
state.setPropertyValue('Name', name)
state.setPropertyValue('EquipmentStateCode', code)
state.setPropertyValue('EquipmentStateType', 'Unplanned Downtime')
#valid values for EquipmentStateType: "Running", "Idle", "Blocked", "Starved", "Planned Downtime", "Unplanned Downtime", "Disabled"
state.setPropertyValue('EquipmentStateOverride', 'Optional')
state.setPropertyValue('EquipmentStateOverrideScope', 'Detected Equipment State')
stateObjList = system.mes.object.list.createList()
stateObjList.add(stateCls)
stateObjList.add(state)
system.mes.saveMESObjects(stateObjList)

Object Properties

Property values can be accessed and changed for an object by using the getPropertyValue() and setPropertyValue() method.

See details at Configuring Equipment States.

MESEquipmentState Object Properties:
Options and Behavior:
EquipmentEnableMeantimeMetrics

Boolean

When enabled, this state is included in the calculation of Mean Time Between Failure (MTBF).

EquipmentStateCode

int

Enter in the integer value for this equipment state. This will generally align with the status code value from the PLC.

Note:

Do not set state code to zero as it is used internally.

EquipmentStateType

Valid equipment state types are...

  • Unplanned Downtime
  • Planned Downtime
  • Blocked
  • Starved
  • Running
  • Idle
  • Disabled
EquipmentStateShortStopThresholdEnter in a time value in seconds for how long a state must persist for before it considered to be in this. The Short Stop Threshold is not used for states of state type RUNNING.
EquipmentStateOverride

The Override property defines if it is possible for a operator to override the equipment state through the Downtime Table Editor component.

Valid options are:

  • Optional - Operator can select a different state based on the Scope setting

  • Prohibited - Operator cannot change this equipment state

  • Required - Operator is required to select a state based on the Scope setting for this equipment state
EquipmentStateOverrideScope

The scope setting is used by the Override setting to provide a set of operator selectable equipment states.

Valid Options are:

  • Detected Equipment State - operator can only select from list of equipment states for the equipment (cell)

  • Any Equipment State - operator can select from list of equipment states for any piece of equipment (cell) on the Line

  • Sub State - operator can only select from list of sub states created under this Equipment State
overrideCurrentLineDowntime

Boolean


Indicates if the current state should override line downtime should it become active on a cell in a Line Downtime, Key Reason detection, scenario.

True - would override current line downtime based on the Key Reason logic.  See Downtime Detection Modes > Key Reason downtime detection.

False - would not override current line downtime, consider this as respecting a latched downtime reason.

MESEquipmentState Object Functions


getStateCode()

Returns the code (an integer) that represents this equipment state.

Syntax

getStateCode()

Parameters

None

Returns

Integer - The integer code that is associated with this equipment state.

getStateOverrideScope()

Returns the override scope of this equipment state.

Syntax

getStateOverrideScope()

Parameters
None

Returns
String setting - The override scope associated with this equipment state.


getStateOverrideSetting()

Returns the override setting of this equipment state.

Syntax
getStateOverrideSetting()

Parameters
None
Returns
String setting - The override setting associated with this equipment state.

getStateShortStopThreshold()

Returns the duration (in seconds) that a state will be considered as a short stop (if less than). If state duration is longer, then it will be considered a downtime event, or planned downtime event or other.

Syntax

getStateShortStopThreshold()

Parameters

None

Returns

Integer threshold - The duration (in seconds) that a state will be considered as a short stop.

getStateType()

Syntax
getStateType()

Parameters
None
Returns
String type - The type of this equipment state. Options are Unknown, Unplanned Downtime, Planned Downtime, Blocked, Starved, Running, Idle, Disabled, Changeover, Maintenance.

getStateTypeName()

Returns the name of the equipment state type.

Syntax
getStateTypeName()

Parameters
None

Returns
String name - Name of the equipment state mode.

isOverrideCurrentLineDowntime()

Returns the line downtime override flag. (See description of overrideCurrentLineDowntime property in the properties table on this page.)

Syntax
isOverrideCurrentLineDowntime()

Parameters
None

Returns
Boolean Flag - Indicates if this state should override a Line Downtime reason in certain Key Reason downtime detection scenarios.

setOverrideCurrentLineDowntime()

Sets the flag to override line downtime or not override line downtime. The scenario here is if a line downtime exists, and another event occurs on the line (e.g. another cell goes down with this current state, which should override the line downtime reason with this current state as the reason), this flag determines if the state overrides or not.

Syntax
setOverrideCurrentLineDowntime()
Parameters
Boolean Override Flag - Indicator if the state should override a line downtime for the current reason (true), or not to override current line downtime (false).
Returns
String name - Name of the equipment state mode.

MESEquipmentState Events

Inherits:

Event
Behavior
New

The event is fired when a new instance of a Equipment State object is created.

If no script is entered, then the default handler will be executed. To execute the default handler from within the script entered here, add a script line:

event.runDefaultHandler()
