Response Supplemental Equipment Resource Property

This object has the information about supplemental equipment (any equipment that is not part of the production model but could be used in the process) that may be a part of the operation and is stored as a complex property object of a response segment .

Warning

This object is not derived from the AbstractMESObject. Instead it derives from AbstractMESComplexProperty object and inherits all its functions and properties.

 Object Creation

This object is primarily created when using the MES Object Editor component. The following object methods can be used to create or return this type of object.

Copy Code
Python
obj = system.mes.loadMESObject('OEE Production', 'ProcessSegment')
ppty = obj.createComplexProperty('SupplEquip', 'SupplEquip1')
print ppty


>>>
{EquipmentOptional=false, EquipmentProductionSelectable=true, EquipmentRef=, EquipmentRefUUID=null, EquipmentRefType=null, EquipmentUse=, EquipmentQuantity=0.0, EquipmentUnits=}
>>>

 Use

This object is not a parameter for any scripting or object functions.

 Object Properties

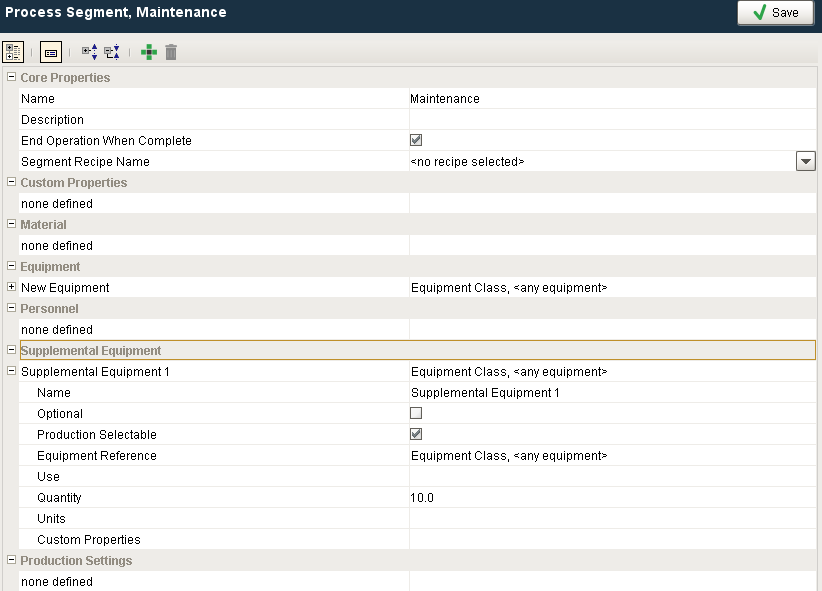

These properties are accessible through the MES Object Editor component and with the provided object functions, but not directly as obj.properties. The setting name is what appears in the MES Object Editor component and the script name is what is used to set or get the value using script.

See AbstractMESComplexProperty for details about accessing values using script. Property values can be accessed and changed for an object by using the getPropertyValue() and setPropertyValue() method.

Setting Name

Type Scripting Description
Name String SupplEquip The name of the custom property that can be used to reference this supplemental equipment in script.
Optional Boolean EquipmentOptional If the property defined here is always required, then leave this setting unchecked. If this property is optional, then select it.
Production Selectable Boolean ProductionSelectable This box is checked by default. If this setting is unchecked then this property selection will not be visible to the operator in the MES Material Selector component.
Equipment Reference String EquipmentRef This can be set to a Equipment Class or a Equipment, Line, Line Cell, Line Cell Group or Storage Unit. By setting this to Equipment Class will cause the operator to be prompted for the specific equipment for this equipment resource. If set to a specific equipment item, then the selection will be automatically selected.
Use String EquipmentUse Currently this is here for reference and is included to align with the ISA-95 standard and will become significant in the next phase of the Track and Trace Module.
Quantity Float8 EquipmentQuantity Currently this is here for reference and is included to align with the ISA-95 standard and will become significant in the next phase of the Track and Trace Module.
Units String EquipmentUnits This specifies the units for the quantity setting.
Custom Properties     To add new custom property, select this row and click add button on tool bar.


 Object Functions

This object provides the following functions:

getEquipmentRef()

Description

 Get reference to the supplemental equipment property.

Syntax

getEquipmentRef()


  • Parameters

 None

  • Returns

 MESObjectLink equipmentRef - Reference to the supplemental equipment property.

  • Scope

All



getEquipmentRefProperty()

Description

 Get the supplemental equipment reference property.

Syntax

getEquipmentRefProperty()


  • Parameters

 None

  • Returns

 String equipmentRefProperty - The supplemental equipment reference property.

  • Scope

All

 getEquipmentRefType()

Description

 Get the type of supplemental equipment reference.

Syntax

getEquipmentRefType()

  • Parameters

 None

  • Returns

 String equipmentRefType - The type of supplemental equipment reference.

  • Scope

All



getEquipmentRefUUID()

Description

 Get the uuid that corresponds to supplemental equipment reference.

Syntax

getEquipmentRefUUID()

  • Parameters

 None

  • Returns

 String equipmentRefUUID - The unique identifier that corresponds to supplemental equipment reference.

  • Scope

All

 getOptional()

Description

Returns the corresponding Boolean after checking whether the supplemental equipment property is optional or not.

Syntax

getOptional()

  • Parameters

 None

  • Returns

 boolean - True if this property is optional and False otherwise.

  • Scope

All



getQuantity()

Description

Get the quantity of supplemental equipment. This is here in compliance with ISA-95 standard.

Syntax

getQuantity()

  • Parameters

 None

  • Returns

 double quantity - The quantity of supplemental equipment.

  • Scope

All



getUnits()

Description

Get units defined for this supplemental equipment.

Syntax

getUnits()

  • Parameters

 None

  • Returns

 String units - The units for supplemental equipment.

  • Scope

All



setEquipmentRef(equipmentRef)

Description

 Set reference to the supplemental equipment property.

Syntax

setEquipmentRef(equipmentRef)

  • Parameters

 MESObjectLink equipmentRef - Reference to the supplemental equipment property.

  • Returns

 Nothing

  • Scope

All



setEquipmentRefType(equipmentRefType)

Description

 Set the type of supplemental equipment reference.

Syntax

setEquipmentRefType(equipmentRefType)

  • Parameters

String  equipmentRefType - The type of supplemental equipment reference.

  • Returns

Nothing

  • Scope

All

 setEquipmentRefUUID(equipmentRefUUID)

Description

 Set the uuid that corresponds to supplemental equipment reference.

Syntax

setEquipmentRefUUID(equipmentRefUUID)

  • Parameters

  String  equipmentRefUUID - The unique identifier that corresponds to supplemental equipment reference.

  • Returns

 Nothing

  • Scope

All



setOptional(optional)

Description

Sets the supplemental equipment property to optional or not.

Syntax

setOptional(optional)

  • Parameters

Boolean optional - True if this property is optional and False otherwise.

  • Returns

 Nothing

  • Scope

All



setQuantity(quantity)

Description

Set the quantity of supplemental equipment. This is here in compliance with ISA-95 standard.

Syntax

setQuantity(quantity)

  • Parameters

 double  quantity - The quantity of supplemental equipment.

  • Returns

 Nothing

  • Scope

All



setUnits(units)

Description

Set units defined for this supplemental equipment.

Syntax

setUnits(units)

  • Parameters

 String  units - The units for supplemental equipment.

  • Returns

 Nothing

  • Scope

All
