Sample Definition Settings for Box and Whisker Chart

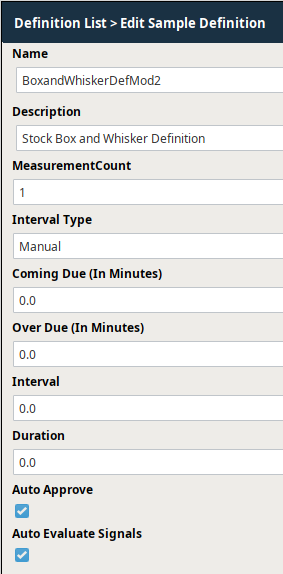

In the Sample Definition Manager, add or edit a sample definition. To learn about how to do this, see Sample Definitions
Below is an example of how the settings could be configured for this type of chart.

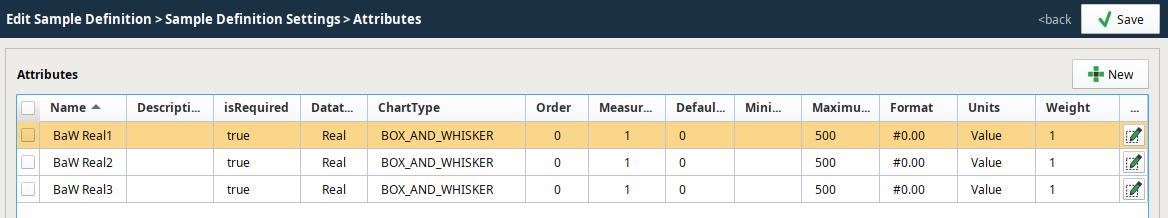

Sample Definition Settings for Box and Whisker Chart | Attributes
| Valid Data Type(s) |
|---|
| Real |

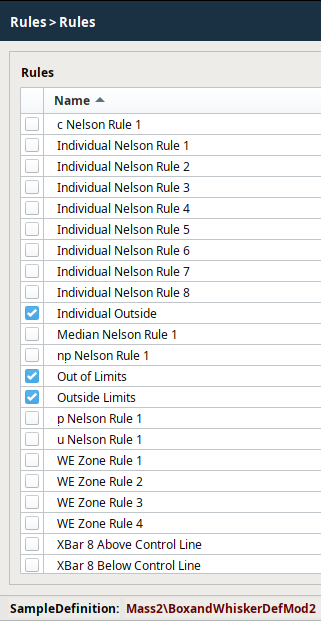

Sample Definition Settings for Box and Whisker Chart | Rules

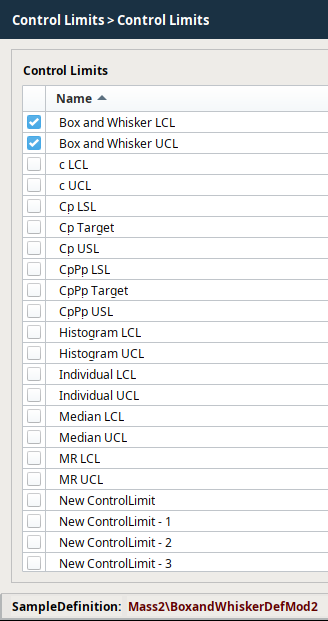

Sample Definition Settings for Box and Whisker Chart |Control Limits
| Valid Control Limits |
|---|
| Box and Whisker LCL |
| Box And Whisker UCL |
After all the desired settings have been defined, select Save to commit all the changes or Cancel to undo any changes that have been made. After a Sample Definition has been created, samples based on them may begin to appear or can be manually added depending on the Interval setting.
