The Pareto Chart is an analysis chart type.
Sample Definition Settings for Pareto Chart
In the Sample Definition Manager, add or edit a sample definition. To learn about how to do this, see Sample Definitions.

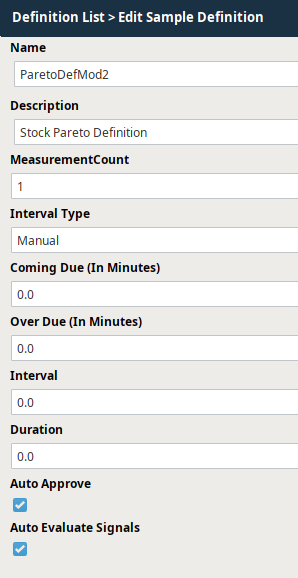

Below is an example of how the settings could be configured for this type of chart.
Sample Definition Settings for Pareto Chart | Attributes
| Attribute Name | Valid Data Types |
| Inspected Count | INSPECTED_COUNT |
| Nonconformity | NONCONFORMITY_COUNT |
| Nonconforming | NONCONFORMING_COUNT |

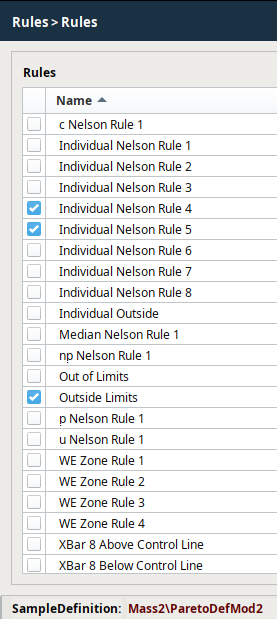

Sample Definition Settings for Pareto Chart | Rules
| Valid Rules |
|---|
| Individual Nelson Rule 1 |
| Individual Nelson Rule 2 |

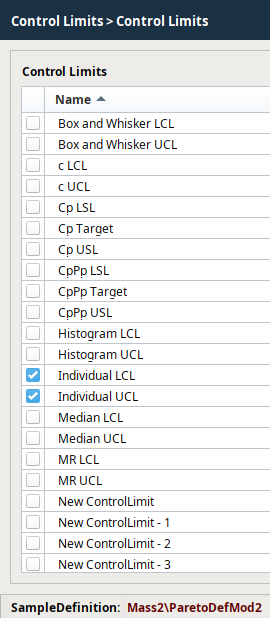

Sample Definition Settings for Pareto Chart |Control Limits
| Valid Rules |
|---|
| Individual LCL |
| Individual UCL |
After all the desired settings have been defined, select Save to commit all the changes or Cancel to undo any changes that have been made. After a Sample Definition has been created, samples based on them may begin to appear or can be manually added depending on the Interval setting.
