Value Prompt Phase

Prompt the user for a value. Use that value to control the batch execution.

You can use a value prompt phase to set parameter values that can be used within the execution and to make decisions with an Or_Begin control.  You set the conditional logic in Transitions.

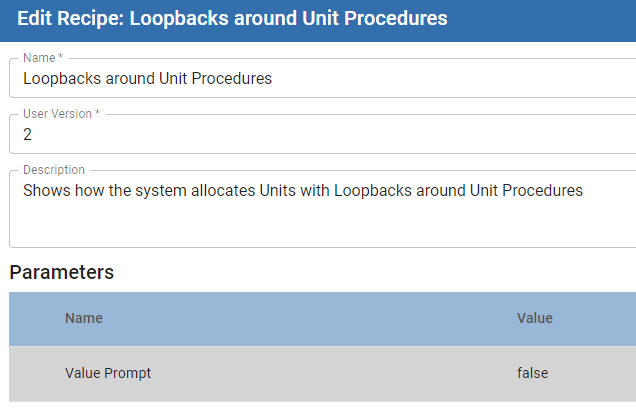

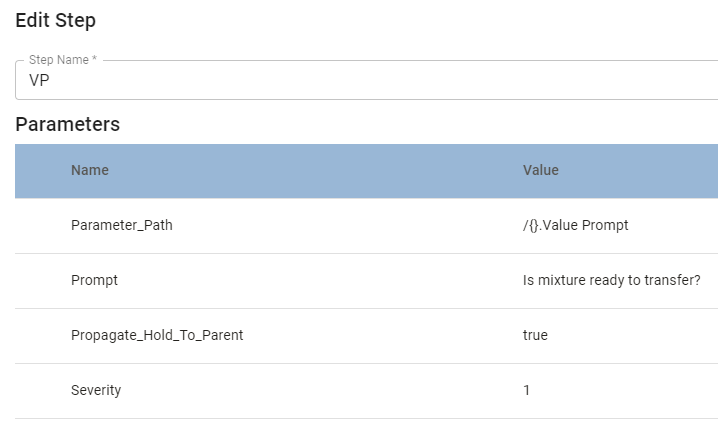

The Value Prompt phase-parameter named: Parameter_Path is where you set the path to a batch-parameter that you want to use to pass values.

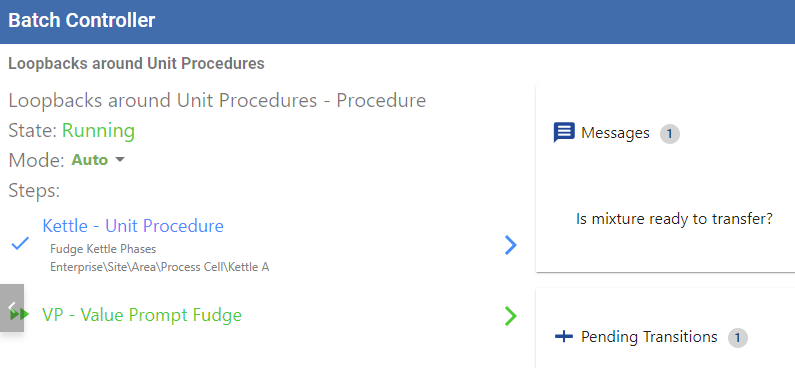

When a batch evaluates a value prompt, the message displays in Batch Controller. When a value is entered, the procedure continues execution.


In the above example, when responding False to the value-prompt question, the procedure loops back and executes the unit procedure until the response is True.

Parameters

Parameter Name:Data TypeDescription

Value Source By Default

Recording Type By Default

See Propertes Common to All Phase Parameters

Parameter_Path

String

Set the path to the batch-parameter value that is prompted to the operator.

For Syntax, see:

See Referencing Parameters in Batch Recipes .

Recipe

Changes Not Saved

Prompt

String

Exposed in Batch Monitor and Batch Controller to prompt for input.

Supports calculations.

Recipe

All to Object and History

Propagate_Hold_To_Parent

Boolean

When a Phase state changes to HELD, the HELD state is propagated to the Unit Procedure and Operation. If this parameter is set to True, then the HELD state is passed up to the next parent level.

Keep in mind that when you restart the unit procedure or operation, the batch is not restarted. Restart the batch from Batch Controller or Batch Monitor.

Recipe

Changes Not Saved

Severity

Integer

1

Recipe

All to Object and History

Example Script

Copy Code
Python
qList = system.mes.batch.queue.getEntries(0, 1000, '')
    for q in qList: msgList = system.mes.batch.queue.getMessages(q)
        for m in msgList:
            if m.requiresValueEntry():
                m.assignValue(200, 'admin')
                system.mes.batch.queue.assignMessageValue(m)

The additional functions that support prompting for values are:

  • m.requiresValueEntry()
  • m.assignValue(200, 'admin')
  • system.mes.batch.queue.assignMessageValue(m)
